Saab 9000 (1993 – 1998) – fuse box diagram
Year of production: 1993, 1994, 1995, 1996, 1997, 1998
Distribution box in glove compartment
Saab 9000 – fuse box diagram – glove compartment
№ A Function
1
5
ACC
2
10
Cruise control system; electric door mirrors
3
10
Belt warning; reading lights
4
5
Airbag
5
10
APC system
6
30
Ventilation fan
7
10
Headlamp wipers, el. adjustable seat
8
20
Windscreen wipers, rear windscreen wipers
9
30
Reversing lights; rear electric windows; sunroof
10
20
Heated seats
11
30
Front electric windows; relay reduced low beam (driving lights)
12
15
Indicators, beam length control
13
10
Instrument; EDU; injection system
14
20
Fuel pump
15
–
–
16
15
Central lock; interior lighting; courtesy lights; boot lighting; relay reversing light
17
10
ACC, EDU, luggage compartment light
18
30
Heated rear windscreen
19
15
Radio; electric aerial; clock; SCC
20
20
Option
21
25
Horn
22
15
Hazard warning lights
23
5
Engine electronics, test outlet
24
15
Brake lights
25
30
Electrically adjustable seat, driver
26
30
Electrically adjustable seat, passenger
27
10
Radio
28
25
Pre-heated Lambda probe
29
15
Parking light R; rheostat; instrument lighting
30
10
Parking ligit L, glove compartment lighting
31
20
Driving lights
32
15
Rear fog light
Distribution box in the engine compartment
Saab 9000 – fuse box diagram – engine compartment
№ A Function
1
50
Air pump (max)
1
60
Heat plates (Trionic) (max)
2
30
Radiator fan, 2 step (max)
3
5
Radiator fan, relay
4
40
Radiator fan (standard)
5
15
Dipped beam L
6
15
Dipped beam R
7
15
High beam L
8
15
High beam R
9
5
Relay, horn
10
25
Horn
11
30
A/С radiator fan/compressor
12
15
Extra lamp
13
10
Valve, air pump/vacuum pump
A-B
–
Light relay
C
–
Lamp test (pictogram)
D
–
Air pump/heat plates/vacuum pump
E
–
Radiator fan, 2 step
F
–
A/С relay
G
–
Extra light-fog light
H
–
Pressure monitor A/C
K
–
Reduced low beam (driving light)
L
–
Horn
M
–
Radiator fan

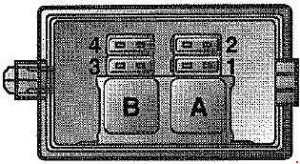

ABS fuse and relay panel
Saab 9000 – fuse box diagram – ABS fuse and relay panel
№ A Function
1
30
ABS pump
2
30
ABS
3
10
Pump and control unit, ABS
A
–
Pump relay
B
–
System relay
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
