Scion xD (2010 – 2014) – fuse box diagram

Year of production: 2010, 2011, 2012, 2013, 2014

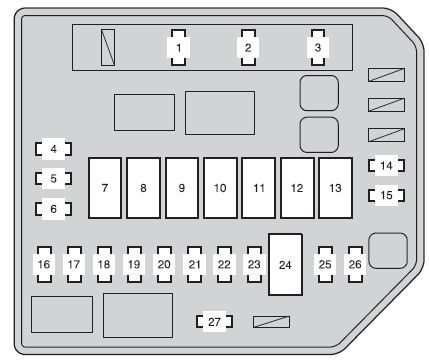

Fuse		Ampere ranting [A]	Circuit
1	AM2	15	Starting system, multi-port fuel injection system/sequential multiport fuel injection system
2	HORN	10	Horn
3	EFI	20	Multi-port fuel injection system/sequential multi-port fuel injection system
4	SPARE	30	Spare fuse
5	SPARE	15	Spare fuse
6	SPARE	10	Spare fuse
7	HTR SUB2	40	Air conditioning system
8	EPS	50	Electric power steering
9	ABS1/VSC1	50	ABS, VSC
10	HTR	40	Air conditioning system
11	RDI	30	Electric cooling fan
12	HTR SUB1	30	Air conditioning system
13	H-LP CLN/PWR HTR	30	Air conditioning system
14	FR DEF	20	No circuit
15	ABS2/VSC2	30	ABS, VSC
16	H-LP MAIN	30	No circuit
17	ST	30	Starting system
18	S-LOCK	20	No circuit
19	DOME	15	Interior light, personal lights, luggage compartment light
20	ECU-B	7,5	SRS airbag system, power windows, gauges and meters, air conditioning system
21	ALT-S	7,5	Charging system
22	ETCS	10	Multi-port fuel injection system/sequential multi-port fuel injection system
23	HAZ	10	Turn signal lights, emergency flashers
24	AMT	50	No circuit
25	H-LP RH/H-LP LO RH	10	Right-hand headlight
26	H-LP LH/H-LP LO LH	10	Left-hand headlight
27	EFI2	10	Multi-port fuel injection system/sequential multi-port fuel injection system

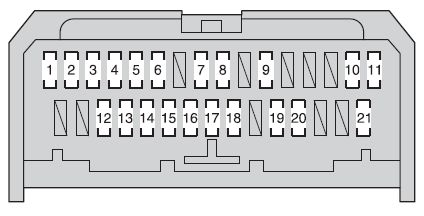

Fuse		Ampere ranting [A]	Circuit
1	TAIL	10	Tail lights, parking lights, license plate lights
2	PANEL1	7,5	Switch illuminations, instrument cluster lights, steering switches, gauges and meters
3	A/C	7,5	Air conditioning system, rear window defogger
4	D DOOR	20	Power windows
5	RL DOOR	20	Power windows (rear left)
6	RR DOOR	20	Power windows (rear right)
7	CIG	15	Power outlet
8	ACC	7,5	Outside rear view mirrors, clock
9	ID/UP / MIR HTR*1	10	Outside rear view mirror defoggers
10	IGN	7,5	Multi-port fuel injection system/sequential multi-port fuel injection system
11	MET	7,5	Gauges and meters
12	WIP	20	Windshield wipers
13	RR WIP	15	Rear window wiper
14	WSH	15	Windshield washers, rear window washer
15	ECU-IG	10	ABS, electric cooling fan, EPS
16	GAUGE	10	Charging system, back-up lights, air conditioning system, gauges and meters
17	OBD2	7,5	On-board diagnosis system
18	STOP	10	Stop lights, high mounted stoplight, multi-port fuel injection system/sequential multi-port fuel injection system, ABS, VSC, shift lock system
19	D/L	25	Power door lock system
20	FR FOG	15	No circuit
21	AM1	25	“ACC”, “CIG” fuses
*1: Vehicles sold in Canada

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
