Seat Ibiza (2002 – 2008) – fuse box diagram
Year of production: 2002, 2003, 2004, 2005, 2006, 2007, 2007
Fuses On Left Side Of Dash Panel

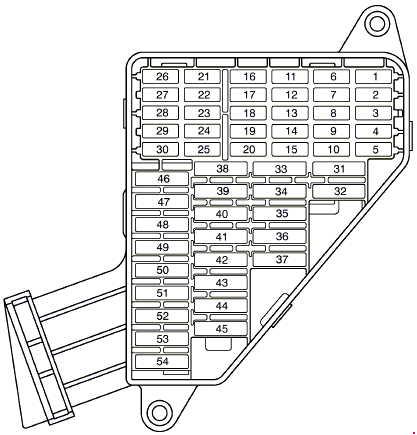

Seat Ibiza – fuse box diagram – left side dash panel
Number
Component
Ampers
1
as of 2006: Secondary water pump 1.8 20 VT (T16)15
2
ABS/ESP
10
3
—
—
4
Brake light, clutch switch, relay coils
5
5
Engine control unit (petrol)
5
6
Right side light
5
7
Left side light
5
8
Mirror heating control
5
9
Lambda probe
10
10
Signal “S”. Radio unit
5
11
as of 2006: Electric mirror power supply5
12
Headlamp height adjustment
5
13
Oil pressure/level sensor
5
14
Additional heating engine/fuel pump/oil pump
10
15
Automatic gearbox unit
10
16
Heated seats
15
17
Engine control unit
5
18
Instrument panel /Heating and ventilation. Navigation, Headlamp height adjustment. Electric mirror
10
19
as of 2006: Reverse light10
up to 2005: Reverse light10
20
Windshield washer pump
10
21
Main beam headlight, right
10
22
Main beam headlight, left
10
23
Number plate light/side light indicator
5
24
Rear windscreen wiper
10
25
lnjectors (fuel)
10
26
Brake light switch /ESP (Turn sensor)
10
27
Instrument panel/Diagnosis
5
28
Unit: glovebox light, boot light, interior light
10
29
Climatronic
5
30
as of 2006: Control central locking5
31
Left front window control
25
32
up to 2005: Control central locking15
33
Self-fed alarm horn
15
34
Engine control unit
15
35
Sunroof
20
36
Engine ventilator heating /blower
25
37
Headlight washer pump
20
38
Front and rearfog lights
15
39
Engine control unit (petrol)
15
40
as of 2006: Engine control unit diesel + SDI Fuel pump30
up to 2005: Engine control unit (diesel)20
41
Fuel gauge
15
42
Ignition transformer+ Engine control unit T70
15
43
Dipped headlight (right side)
15
44
Left rear window control
25
45
Front right window control
25
46
Windscreen wiper unit
20
47
Heated rear window unit
20
48
Indicator unit
15
49
Cigarette lighter
15
50
as of 2006: Locking unit15
up to 2005: Current rain sensor/central locking20
51
Radio/CD/GPS/Telephone
20
52
Horn
20
53
Dipped headlight (left side)
15
54
Right rear window control
25
Fuse box in the engine compartment on the battery
Number
Component
Ampers
1
PTCs (Supplementary electrical heating using air)
40
2
PTCs (Supplementary electrical heating using air)
40
3
PTCs (Supplementary electrical heating using air)
40

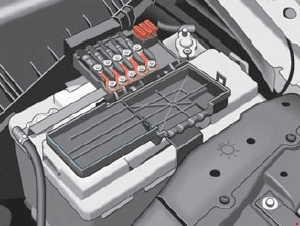

Fuses In Engine Compartment Above Battery
Seat Ibiza – fuse box diagram – engine compartment above battery
Number
Component
Ampers
1
Alternator/Starter motor
175
2
Power supply voltage distributor inside vehicle
110
3
Power assisted steering pump
50
4
SLP (petrol)/Preheating spark plugs (diesel)
50
5
Electroblower clima heater/fen
40
6
ABS unit
40
7
ABS unit
25
8
Electroblower clima heater/fen
30
9
ABS unit
10
10
Cable control unit
5
11
Clima fan
5
12
—
—
13
Jatco unit for automatic gearbox
5
14
—
—
15
—
—
16
—
—
Position In Engine Compartment: Side Box
Number
Component
Ampers
B1
Alternator (< 140W)
150
Alternator (> 140W)
200
C1
Power steering
80
D1
PTCs (Supplementary electrical heating using air)
100
E1
Ventilator (> 500W)
80
Ventilator (< 500W)
50
F1
Multi-terminal voltage supply “30”. Internal fuse box
100
G1
Trailer fuse voltage supply in internal fuse box
50
H1
—
—
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
