Seat Toledo (2012) – fuse box diagram
Year of production: 2012

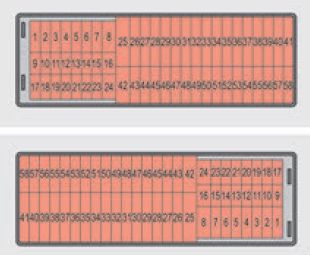

Fuses in the dash panel
| Number | Component |
| 1 | S – ignition |
| 2 | START-STOP |
| 3 | Instrument panel, headlight range control, telephone, oil level sensor |
| 4 | ABS/ESC control unit |
| 5 | Petrol engine: cruise control |
| 6 | Reverse light (manual gearbox) |
| 7 | Switch, engine control unit, automatic gearbox |
| 8 | Brake switch, clutch switch, cooling fan |
| 9 | Heating control panel, air conditioning control unit, parking aid, electric window riser, radiator fan, windscreen wiper jets |
| 10 | DC-DC converter |
| 11 | Exterior mirror control |
| 12 | Towing bracket control unit |
| 13 | Automatic gearbox control unit, automatic gear selector |
| 14 | Headlight range control |
| 15 | — |
| 16 | Power steering, speed sensor, engine control unit |
| 17 | Radio (START-STOP ) daytime driving light |
| 18 | Heated mirrors |
| 19 | Ignition inlet |
| 20 | Engine control unit, fuel pump control unit, fuel pump |
| 21 | Reverse light (automatic gearbox), fog lights with CORNER function |
| 22 | Heating control panel, control unit of the climate control, telephone, general instrument panel, steering wheel angle sensor, multifunction steering wheel, automatic gearbox key lock |
| 23 | Interior lighting, glove compartment and luggage compartment lighting, side lights |
| 24 | Central control unit for the vehicle |
| 25 | — |
| 26 | Rear window wiper |
| 27 | — |
| 28 | Petrol engine: AKF valve, additional heating |
| 29 | Injection, coolant pump |
| 30 | Fuel pump, ignition, cruise control |
| 31 | Lambda probe |
| 32 | High-pressure fuel pump, pressure valve |
| 33 | Engine control unit |
| 34 | Engine control unit, vacuum pump |
| 35 | Button backlighting, number plate lighting, parking lights, headlight washers |
| 36 | Main beams |
| 37 | Rear fog lights, DC/DC converter |
| 38 | Fog lights |
| 39 | Heater blower |
| 40 | — |
| 41 | Heated front seats |
| 42 | Heated rear window |
| 43 | Horn |
| 44 | Windscreen wipers |
| 45 | Rear lid lock, central locking system |
| 46 | Alarm |
| 47 | Cigarette lighter, luggage compartment power socket |
| 48 | ABS |
| 49 | Turn signals, brake lights |
| 50 | DC-DC converter, radio |
| 51 | Electric window riser (driver + rear left-hand side) |
| 52 | Electric window riser (front passenger + rear right-hand side) |
| 53 | Windscreen wash system |
| 54 | START-STOP general instrument panel, module below steering wheel, multifunction steering wheel |
| 55 | Automatic gearbox control unit |
| 56 | Headlight washer |
| 57 | Dipped beam headlight (left side) |
| 58 | Dipped beam headlight (right side) |

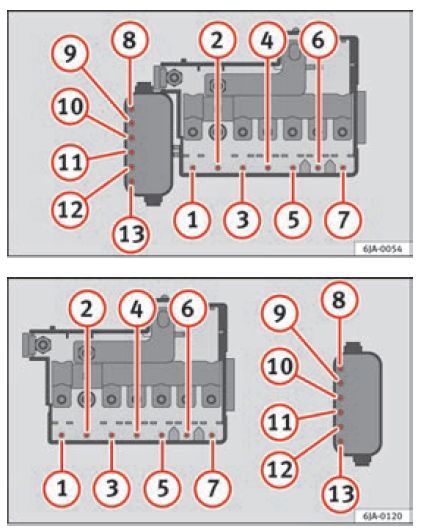

Fuses in the engine compartment (version 1 and version 2)
| Number | Component |
| 1 | Alternator |
| 2 | — |
| 3 | Interior (version 1) |
| Fuse block power (version 2) | |
| 4 | Additional electric heating (version 1) |
| Interior (version 2) | |
| 5 | Interior |
| 6 | Radiator fan, glow plug system control unit |
| 7 | Electric-hydraulic power steering |
| 8 | ABS |
| 9 | Radiator fan |
| 10 | Automatic gearbox |
| 11 | ABS |
| 12 | Central control unit |
| 13 | Additional electric heating |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
