Skoda Citigo (2013) – fuse box diagram
Year of production: 2013

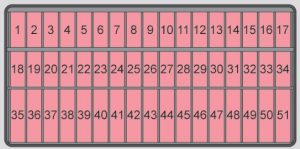

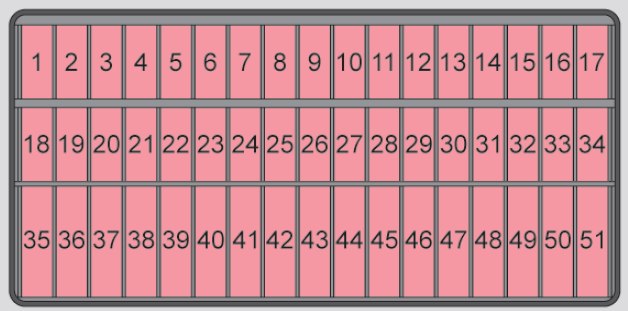

Fuse box under of the dash panel
The fuses are located underneath the steering wheel on the underside of the dash panel.
Number | Power consumer |
1 | Telephone, radiator fan, instrument cluster, engine control unit |
2 | Diagnostic connection, AC compressor |
3 | Clutch pedal switch, brake pedal switch |
4 | Daylight driving lights |
5 | Switch wiring harness |
6 | Headlamp beam adjustment, exterior mirror adjustment |
7 | Automated transmission |
8 | Automated transmission |
9 | Airbag |
10 | Park Assist |
11 | Low beam |
12 | Rear fog light |
13 | Low beam |
14 | Rear window wiper |
15 | Light switch |
16 | Steering force assistance |
17 | Windscreen washer |
18 | Reverse light switch |
19 | Injection valves, coolant pump |
20 | ABS/ESP, switch wiring harness |
21 | Switch illumination, number plate light |
22 | Daytime running lights |
23 | Light switch |
24 | Switch wiring harness |
25 | Switch wiring harness |
26 | Switch wiring harness |
27 | Interior light |
28 | Diagnostic connector |
29 | Central control unit |
30 | Exterior mirror heater |
31 | Coller fan, regulator valve, lambda probe |
32 | Turn signal, brake light |
33 | Main beam |
34 | Instrument cluster, main beam |
35 | Not assigned |
36 | Cigarette lighter, 12-volt power socket |
37 | Air blower for heating and air conditioning |
38 | Radio |
39 | Panoramic sliding roof, horn |
40 | Engine control unit |
41 | Central locking system |
42 | Ignition module |
43 | Seat heaters |
44 | Fuel pump |
45 | Light switch |
46 | Rear window heater |
47 | Power windows – right |
48 | Horn |
49 | Front window wiper |
50 | Fog lights |
51 | Power windows – left |

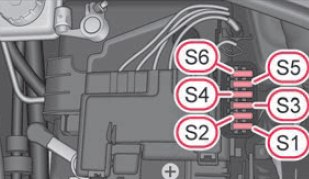

Fuse box in engine compartment
The fuses are located underneath a cover next to the vehicle battery.
Number | Power consumer |
S1 | ABS/ESP |
S2 | Radiator fan |
S3 | Battery management, control unit for radiator fan |
S4 | ABS/ESP |
S5 | Central control unit |
S6 | Ignition lock, starter |

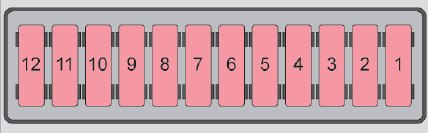

Fuse box in the dash panel
These fuses are located in vehicles with the START-STOP system.
Number | Power consumer |
1 | ABS/ESP |
2 | Instrument cluster |
3 | Radio, diagnosis |
4 | DC-DC voltage converter, starter relay |
5 | Not assigned |
6 | Air blower for air conditioning/heating |
7 | Control unit for the AC system |
8 | Not assigned |
9 | Right light |
10 | Left light |
11 | Starter |
12 | DC-DC voltage converter |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
