Skoda Citigo (2017) – fuse box diagram
Year of production: 2017

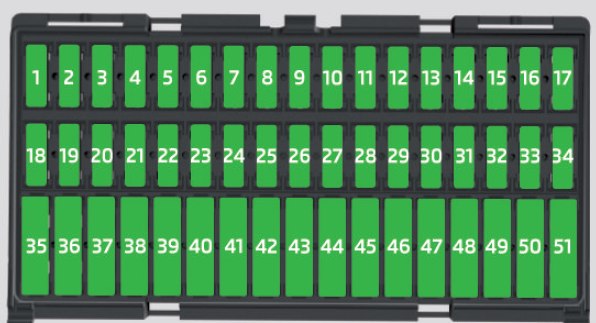

Fuse box under of the dash panel
The fuses are located underneath the steering wheel on the underside of the dash panel.
| Number | Power consumer |
| 1 | Air Conditioning, diagnostic connector |
| 2 | Operating the headlight range control, parking aid, adjusting the mirror surface with electric exterior mirrors |
| 3 | Automatic transmission, engine control unit, power steering, control lever under the steering wheel, instrument cluster |
| 4 | Airbag |
| 5 | Reversing light |
| 6 | Rear wiper, windscreen washer system |
| 7 | Main beam headlamp – left side |
| 8 | Main beam headlamp – right side |
| 9 | Not assigned |
| 10 | Electric exterior mirror heater, diagnostic port |
| 11 | Not assigned |
| 12 | Vehicle lighting |
| 13 | Vehicle lighting |
| 14 | Vehicle lighting |
| 15 | Vehicle with START-STOPsystem: Radio Vehicle without START-STOPsystem: Central Control Unit, heating, automatic transmission, light switch, license plate light |
| 16 | Vehicle lighting |
| 17 | Rear window wiper |
| 18 | Panoramic sunroof |
| 19 | Central locking system |
| 20 | Rear window heater |
| 21 | Reversing light |
| 22 | Horn |
| 23 | Voltage stabiliser (for START-STOP system) |
| 24 | Headlamp flasher |
| 25 | Windscreen wipers |
| 26 | Radio |
| 27 | Turn signal lights, brake lights |
| 28 | Selector lever for the automatic transmission |
| 29 | Fuel pump |
| 30 | Engine control unit, instrument cluster, rain sensor, control lever under the steering wheel |
| 31 | Vehicle lighting |
| 32 | Central control unit |
| 33 | Vehicle lighting |
| 34 | Indoor lighting |
| 35 | Vehicle lighting |
| 36 | Vehicle lighting |
| 37 | ESC |
| 38 | Key bar |
| 39 | Control lever under the steering wheel, front and rear window washer |
| 40 | Lambda probe, radiator fan, gas valve, oil pressure valve, valve for activated charcoal filter |
| 41 | Brake pedal switch, cooling fan |
| 42 | Engine control unit |
| 43 | Fuel pump |
| 44 | Injection valves |
| 45 | Ignition coils |
| 46 | 12-volt power socket |
| 47 | Air blower for air conditioning/heating |
| 48 | Seat heaters |
| 49 | Electric windows |
| 50 | Vehicle lighting |
| 51 | Electric power windows |

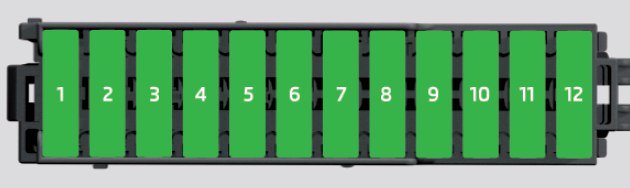

Fuse box in the dash panel
On vehicles with the START-STOP system, the fuses are on the left side of the dash panel behind a cover.
diagram dash panel
| Number | Power consumer |
| 1 | ABS/ESP |
| 2 | Instrument cluster |
| 3 | Radio |
| 4 | DC-DC voltage converter, starter relay, bar with buttons |
| 5 | Air conditioning system |
| 6 | Not assigned |
| 7 | Not assigned |
| 8 | Not assigned |
| 9 | Vehicle lighting – right side |
| 10 | Vehicle lighting – left side |
| 11 | Starter |
| 12 | DC-DC voltage converter, ABS, instrument cluster, radio |

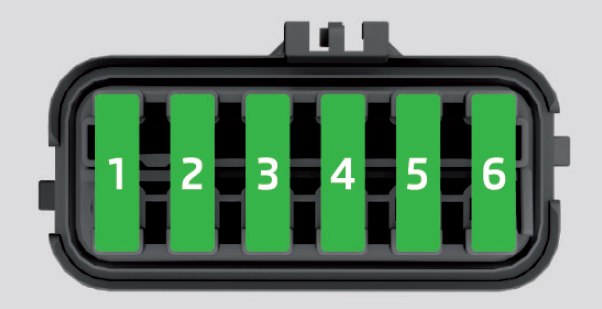

Fuse box in the engine compartment
diagram – engine compartment
| Number | Power consumer |
| 1 | ABS/ESP |
| 2 | Radiator fan |
| 3 | Control unit for radiator fan, ignition |
| 4 | ABS/ESP |
| 5 | Central control unit, battery data module |
| 6 | Ignition lock, starter |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
