Skoda Fabia (2004 – 2005) – fuse box diagram

Skoda Fabia (2004 – 2005) – fuse box diagram

Year of production: 2004, 2005

Fuse box in engine compartment

Number Power consumer Ampere rating [A]
1 Dynamo 175
2 Interior 110
3 Power steering 50
4 Glow plugs 40
5 The radiator fan 40
6 ABS or TCS or ESP 40
7 ABS or TCS or ESP 25
8 The radiator fan 30
9 Not assigned
10 Central control unit 5
11 The air conditioning system 5
12 Not assigned
13 Automatic gearbox 5
14 Not assigned
15 Not assigned
16 Not assigned



Fuse box in the dash panel

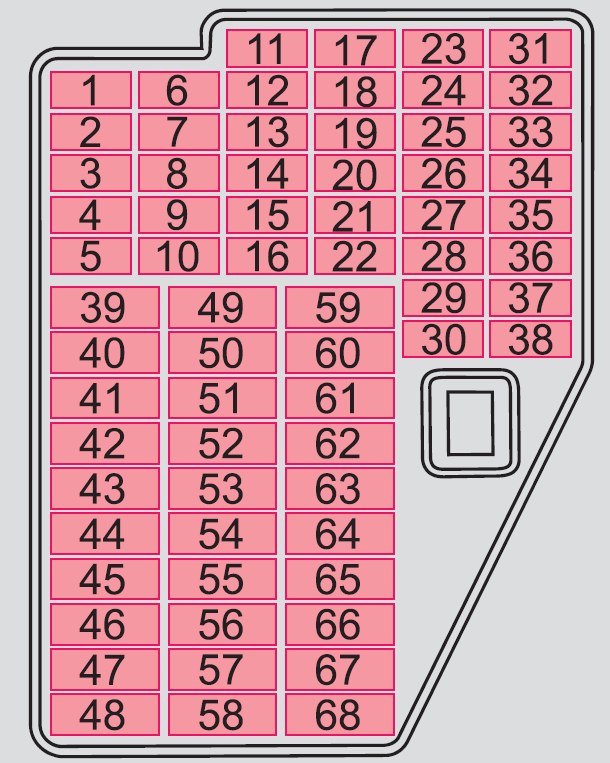

Skoda Fabia - fuse box diagram - dash panel
Skoda Fabia – fuse box diagram – dash panel
Number Power consumer Ampere rating [A]
1 Instrument cluster, ESP 5
2 Brake lights 10
3 Power supply for the diagnostics, air-conditioning system 5
4 Interior lighting 10
5 Door warning light 5
6 Lights and Visibility 5
7 Engine electronics, power-assisted steering 5
8 Not assigned
9 Lambda probe 10
10 S-contact a) 5
11 Electrically adjustable rear mirror b) 5
12 Ventilation system, air-conditioning system, Xenon headlight 5
13 Reversing light 10
14 Diesel engine control unit 10
15 Headlight cleaning system, window wiper 10
16 Instrument cluster 5
17 Petrol engine – control unit c) 5
18 Telephone 5
19 Automatic gearbox 10
20 Control unit for lamp failure 5
21 Heated windscreen washer nozzles 5
22 Not assigned
23 Right main beam 10
24 Engine electronics 10
25 Control unit for ABS, TCS 5
control unit for ESP 10
26 Not assigned
27 Not assigned
28 Cruise control, switch for the brake and clutch pedal 5
29 Not assigned
30 Main beam on the left and indicator light 10
31 Central locking system – door lock for the boot lid 10
32 Rear window wiper 10
33 Parking light on the right 5
34 Parking light on the left 5
35 Injector – petrol engine 10
36 Licence plate light 5
37 Rear fog light and indicator light 5
38 Heating of the external mirror 5
39 Rear window heater 20
40 Horn 20
41 Front window wiper 20
42 Cigarette lighter, power socket 15
43 Central control unit, selector lever lock for the automatic gearbox 20
44 Turn signals 15
45 Radio, navigation system 20
46 Electrical power window (at the front on the right) 25
47 Not assigned
48 Diesel engine – control unit, injector 30
49 Central locking system 15
50 Low beam on the right 15
51 Power socket in the luggage compartment 15
52 Ignition 15
53 Electrical power window (at the rear on the right) 25
54 Low beam on the left 15
55 Not assigned
56 Control unit – petrol engine 20
57 Towing device 25
58 Electrical power window (at the front on the left) 25
59 Not assigned
60 Horn for the anti-theft alarm system 15
61 Fuel pump – petrol engine 15
62 Electric sliding/tilting roof 25
63 Seat heaters 15
64 Headlight cleaning system 20
65 Fog lights 15
66 Electrical power window (at the rear on the left) 20
67 Not assigned
68 Fresh air blower 25
a) For power consumers, e.g. the radio, which can be operated with the ignition switched off as long as the ignition key is not withdrawn.
b) For vehicles with an electrical power window system
c) It is 15 amps for a vehicle with a 1.2 litre engine.



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
