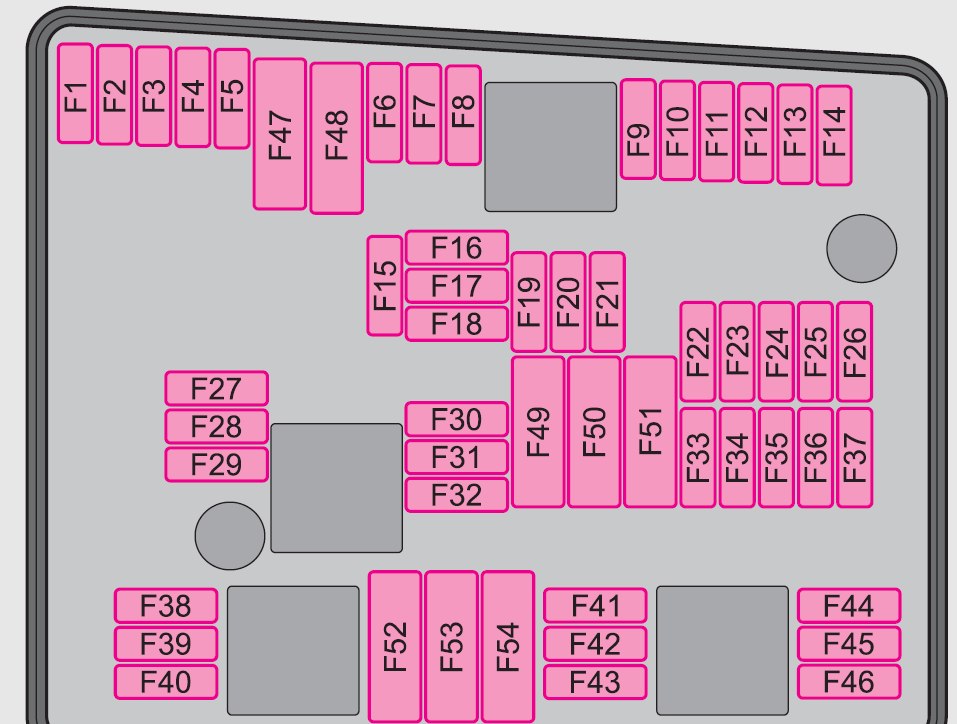

Activated charcoal filter, exhaust gas recirculation valve
10
F10
Leakage diagnosis pump
10
F11
Lambda probe upstream of catalytic converter, engine control unit
10
F12
Lambda probe downstream of catalytic converter
10
F13
Control unit for automatic gearbox
15
F14
Not assigned
—
F15
Coolant pump
10
F16
Windshield wiper lever and turn signal light lever
5
F17
Instrument cluster
5
F18
Audio amplifier (sound system)
30
F19
Radio
15
F20
Phone
5
F21
Not assigned
—
F22
Not assigned
—
F23
Engine control unit
10
F24
Control unit for CAN databus
5
F25
Not assigned
—
F26
Not assigned
—
F27
Not assigned
—
F28
Engine control unit
25
F29
Actuation for coolant pump after-running
5
F30
Control unit for auxiliary heating
30
F31
Front window wiper
30
F32
Not assigned
—
F33
Not assigned
—
F34
Not assigned
—
F35
Not assigned
—
F36
Not assigned
—
F37
Not assigned
—
F38
Radiator fan, valves
10
F39
Clutch pedal switch, brake pedal switch
5
F40
Ignition coils
20
F41
Not assigned
—
F42
Actuation of fuel pump
5
F43
Not assigned
—
F44
Not assigned
—
F45
Not assigned
—
F46
Not assigned
—
F47
Central control unit, Left main headlights
30
F48
Central control unit, Right main headlights
30
F49
Power supply for terminal 15 (ignition on)
40
F50
Not assigned
—
F51
Not assigned
—
F52
Power supply relay – terminal X a)
40
F53
Accessory equipment
50
F54
Not assigned
—
a) In order not to drain the battery unnecessarily when starting the engine, the electrical components of this terminal are automatically switched off.
Windshield wiper lever and turn signal light lever
5
F3
Measuring circuit
5
F4
Valves for ABS
30
F5
Control unit for automatic gearbox
15
F6
Instrument cluster
5
F7
Not assigned
—
F8
Radio
15
F9
Phone
5
F10
Engine control unit, Main relay
5
F11
Control unit for auxiliary heating
20
F12
Control unit for CAN databus
5
F13
Engine control unit
15
F14
Ignition
20
F15
Lambda probe, NOx-sensor, Fuel pump relay
15
Glow plug system relay
5
F16
Pump for ABS
30
F17
Horn
15
F18
Amplifier for digital sound processor
30
F19
Front window wiper
30
F20
Not assigned
5
F21
Lambda probe
15
F22
Clutch pedal switch, brake pedal switch
5
F23
Secondary air pump
5
Air mass meter
10
Fuel high pressure pump
15
F24
Activated charcoal filter, exhaust gas recirculation valve
10
F25
Right lighting system
30
F26
Left lighting system
30
F27
Secondary air pump
40
Preglowing
50
F28
Power suppy terminal 15, Starter
40
F29
Power supply terminal 30
50
F30
Terminal Xa)
40
a) In order not to drain the battery unnecessarily when starting the engine, the electrical components of this terminal are automatically switched off.
Fuse box in dash panel
Skoda Octavia – fuse box diagram – dashboard
Number
Power consumer
Ampere rating [A]
1
Diagnostic socket, Engine control unit, Electrical fuel pump
10
2
Control unit for ABS, ESP
5
3
Airbag
5
4
Heating, Air conditioning system, Reversing lights
5
5
Control unit for headlamp beam adjustment
5
6
Instrument cluster, Control unit for automatic gearbox, Control unit for electromechanical power steering, Parking aid; Haldex clutch
5
7
Not assigned
—
8
Not assigned
—
9
Not assigned
—
10
Not assigned
—
11
Not assigned
—
12
Central locking control unit
10
13
Diagnostic socket, Light switch, Brake light
10
14
Control unit for automatic gearbox, Selector lever lock
5
15
Central control unit – interior lights
7,5
16
Climatronic
10
17
Not assigned
—
18
Parking aid
5
19
Control unit for trailer detection
5
20
Uphill-Start off-Assist
5
21
Not assigned
—
22
Air blower for Climatronic
40
23
Front power window
30
24
Cigarette lighter
25
25
Rear window heater
25
Rear window heater, Auxiliary heating (auxiliary heating and ventilation
30
26
Power socket in the luggage compartment
20
27
Fuel pump relay, Injection valves (diesel engine)
15
28
Not assigned
—
29
Engine control unit, Crankcase ventilation heater
10
30
Control unit for automatic gearbox
20
31
Vacuum pump
20
32
Rear power window
30
33
Electric sliding/tilting roof
25
34
Control unit for convenience functions
20
35
Anti-theft alarm system
5
36
Headlight cleaning system
20
37
Front seat heating
30
38
Heated rear seats
30
39
Not assigned
—
40
Air blower for heating and air conditioning
40
41
Rear window wiper
15
42
Wipe wash pump for windscreen
15
43
Towing device
15
44
Towing device
20
45
Towing device
15
46
Heated windscreen washer nozzles
5
47
Relay for auxiliary heating
5
48
Not assigned
—
49
Light switch
5
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
