Skoda Rapid (2014) – fuse box diagram
Year of production: 2014

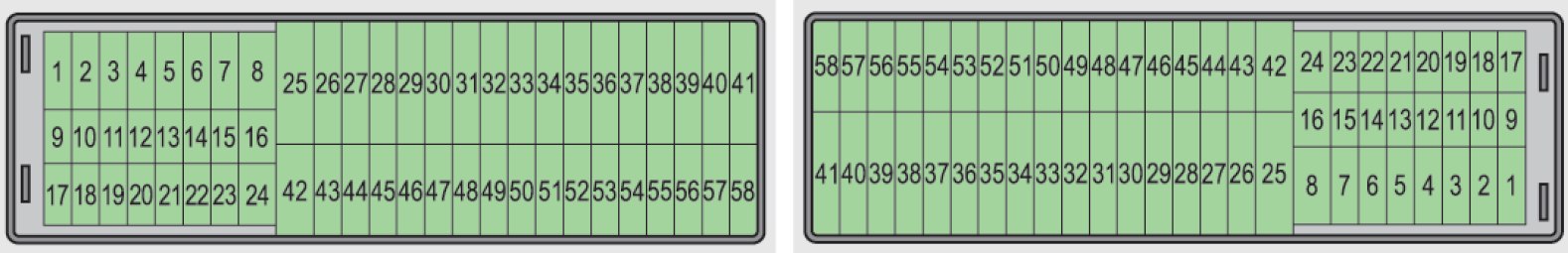

Fuse box in dash panel
| Number | Power consumer |
| 1 | S-contact |
| 2 | START – STOP |
| 3 | Instrument cluster, headlight range adjustment, telephone, oil level sensor, diagnostic port |
| 4 | Control unit for ABS/ESC, steering angle sensor strip with switches |
| 5 | Petrol engine: Speed regulating system |
| 6 | Reversing light (manual gearbox) |
| 7 | Ignition, engine control unit, automatic gearbox |
| 8 | Brake pedal switch, clutch switch, engine cooling fan |
| 9 | Operating controls for the heating, electronic control unit for air conditioning system, park distance control, window lift, engine cooling fan, washing nozzles |
| 10 | DC-DC converter |
| 11 | Mirror adjustment |
| 12 | Control unit for trailer detection |
| 13 | Electronic control unit for automatic gearbox, selector lever of the automatic gearbox |
| 14 | Headlight beam control |
| 15 | Not assigned |
| 16 | Power steering, speed sensor, engine control unit, control unit for fuel pump |
| 17 | Daytime running lights/radio for vehicles with START-STOP |
| 18 | Mirror heater |
| 19 | Ignition lock input |
| 20 | Engine control unit, electronic control unit for fuel pump, fuel pump |
| 21 | Reversing lamp (automatic gearbox), fog lights with the function CORNER |
| 22 | Operating controls for the heating, electronic control unit for air conditioning system, telephone, instrument cluster, steering angle sender, multi-function steering wheel, ignition key removal lock, diagnostic port |
| 23 | Interior lighting, storage compartment and luggage compartment, side lights |
| 24 | Central control unit |
| 25 | Not assigned |
| 26 | Rear window wiper |
| 27 | Not assigned |
| 28 | Petrol engine: Purge valve, PTC heater |
| 29 | Injection, coolant pump |
| 30 | Fuel pump, ignition system, cruise control |
| 31 | Lambda probe |
| 32 | High pressure fuel pump, pressure valve |
| 33 | Engine control unit |
| 34 | Engine control unit, vacuum pump |
| 35 | Switch illumination, number plate light, parking light |
| 36 | Main beam |
| 37 | Rear fog light, DC-DC converter |
| 38 | Fog lights |
| 39 | Air blower for heating |
| 40 | Not assigned |
| 41 | Heated front seats |
| 42 | Rear window heater |
| 43 | Horn |
| 44 | Windscreen wipers |
| 45 | Boot lid lock, central locking system |
| 46 | Alarm |
| 47 | Cigarette lighter, power socket in the luggage compartment |
| 48 | ABS |
| 49 | Turn signal lights, brake lights |
| 50 | DC-DC converter, radio |
| 51 | Electric windows (driver’s window and rear left window) |
| 52 | Electric windows (front passenger’s window and rear right) |
| 53 | Windscreen washer |
| 54 | START-STOP instrument cluster, steering wheel module, multi-function steering wheel |
| 55 | Control unit for automatic gearbox |
| 56 | Headlight cleaning system |
| 57 | Low beam on the left |
| 58 | Low beam on the right |

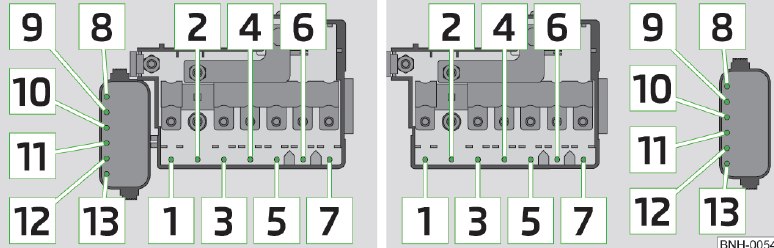

Fuse box in engine compartment
| Number | Power consumer |
| 1 | Generator |
| 2 | Not assigned (version 1), auxiliary electric heater (version 2) |
| 3 | Interior (version 1) |
| Power supply for fuse block (version 2) | |
| 4 | Auxiliary electric heating (version 1) |
| Interior (version 2) | |
| 5 | Interior |
| 6 | Engine cooling fan, control unit for preheating unit |
| 7 | Electrohydraulic power steering |
| 8 | ABS |
| 9 | Radiator fan |
| 10 | Automatic gearbox |
| 11 | ABS |
| 12 | Central control unit |
| 13 | Electrical auxiliary heating system |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
