Skoda Rapid Spaceback (2017) – fuse box diagram
Year of production: 2017

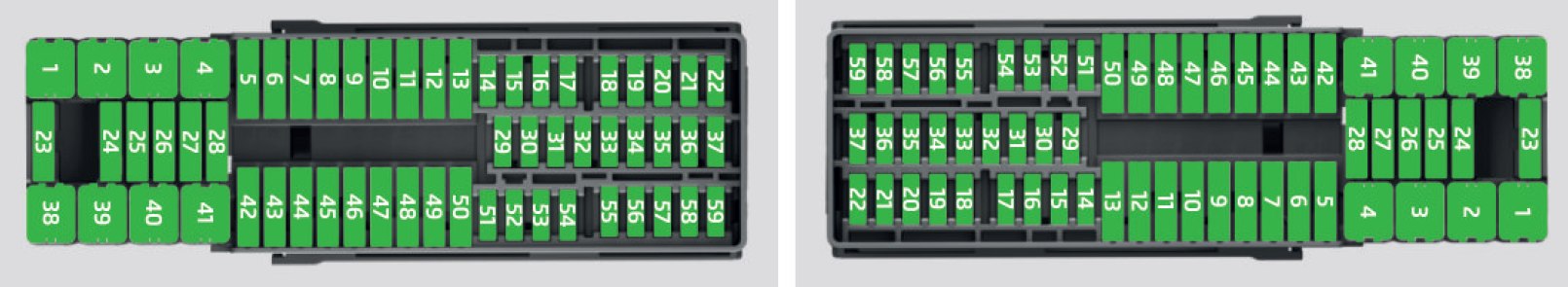

Fuse box in dashboard
| Number | Power consumer |
| 1 | Light – left |
| 2 | Central locking, front and rear window washer system (only with KESSY or heated windscreen) |
| 3 | Ignition |
| 4 | Light – right |
| 5 | Power windows – driver |
| 6 | Interior lighting |
| 7 | Horn |
| 8 | Towing hitch – left light |
| 9 | Operating lever beneath the steering wheel, engine control unit (only without KESSY), automatic gearbox (only without KESSY), automatic gearbox (only without KESSY), ESC (only without KESSY), towing equipment (only without KESSY), power steering (only without KESSY) |
| 10 | Power windows – rear left |
| 11 | Headlight cleaning system |
| 12 | Infotainment display |
| 13 | Multifunction unit for taxi vehicles |
| 14 | Operating lever under the steering wheel, light switch, ignition key removal lock (automatic gearbox), headlight flasher, SmartGate, rain sensor, rear view camera |
| 15 | Air conditioning, automatic gearbox, diagnostic connector, heated windscreen |
| 16 | Instrument cluster, emergency call |
| 17 | Anti-theft alarm, horn |
| 18 | Rear seat heating |
| 19 | Not assigned |
| 20 | Not assigned |
| 21 | Not assigned |
| 22 | Front and rear window washer system (without KESSY or without heated windscreen) |
| 23 | Heated front seats |
| 24 | Blower fan for air conditioning system, heating, air conditioning, heating |
| 25 | Not assigned |
| 26 | Heated front seats |
| 27 | Rear window wiper |
| 28 | Not assigned |
| 29 | Airbag |
| 30 | Electric windows, reverse light switches, air conditioning system, Park Assist, exterior mirror surface settings, power feed for centre button strip, power feed for side button strip, interior mirror |
| 31 | Fuel pump, radiator fan, cruise control, front and rear window washer, light switch |
| 32 | Diagnostic connector, beam range adjustment, control lever under the steering wheel, interior lighting, voltage stabiliser for taxi vehicles |
| 33 | Engine starting, clutch pedal switch |
| 34 | Heated windscreen washer jets |
| 35 | Not assigned |
| 36 | Not assigned |
| 37 | Radar |
| 38 | Not assigned |
| 39 | Electrical auxiliary heating system |
| 40 | Not assigned |
| 41 | Rear window heater |
| 42 | Power windows – front passenger |
| 43 | Towing hitch – contact in the socket |
| 44 | Cigarette lighter, 12-volt outlet in the interior, 12-volt power socket in the luggage compartment |
| 45 | Power windows – rear right |
| 46 | Front and rear window washer, operating lever under the steering wheel |
| 47 | Trailer device – electrical outlet |
| 48 | Towing hitch – right light |
| 49 | Fuel pump |
| 50 | Infotainment |
| 51 | Heating of the external mirror |
| 52 | KESSY |
| 53 | Steering lock (KESSY) |
| 54 | ABS or ESC |
| 55 | Not assigned |
| 56 | Not assigned |
| 57 | Not assigned |
| 58 | Rear seat heating |
| 59 | Not assigned |

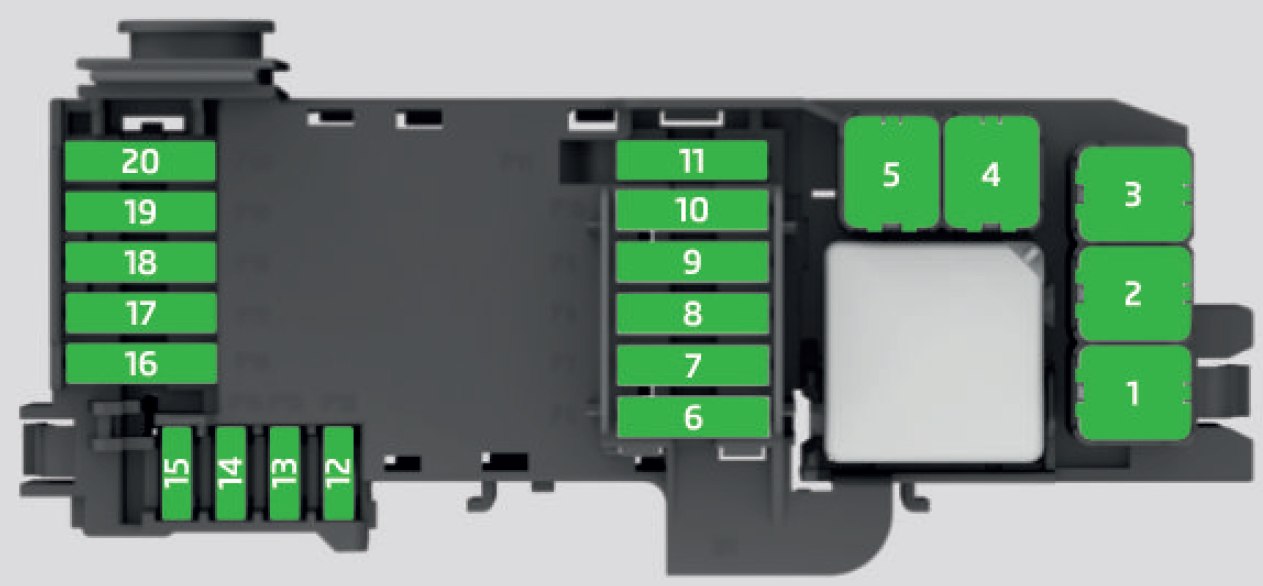

Fuse box in engine compartment
| Number | Power consumer |
| 1 | Radiator fan |
| 2 | Glow plug system |
| 3 | ABS or ESC |
| 4 | Additional electrical heating, heated windscreen |
| 5 | Additional electrical heating, heated windscreen |
| 6 | Automatic gearbox |
| 7 | Engine control system |
| 8 | Windscreen wipers |
| 9 | Battery data module |
| 10 | ABS or ESC |
| 11 | Not assigned |
| 12 | Injectors, valve for fuel metering, control valve for fuel pressure |
| 13 | Brake pedal switch |
| 14 | Fuel pump, radiator fan, cooling pump, pump for intercooling |
| 15 | Engine control system, voltage stabiliser for taxi vehicles |
| 16 | Starter |
| 17 | Engine control system |
| 18 | Additional electric heater, valve for intake manifold, supercharger regulator, oil temperature, valve for activated charcoal filter, valve for oil pressure control |
| 19 | Lambda probe |
| 20 | Glow plug system, crankcase ventilation heater |
