Skoda Roomster (2015) – fuse box diagram
Year of production: 2015
Fuse box in dashboard
| Number | Power consumer |
| 1 | S-contact |
| 2 | START-STOP, air-conditioning system |
| 3 | Instrument cluster, headlight range adjustment |
| 4 | Control unit for ABS, button for START STOP |
| 5 | Petrol engine: Speed regulating system |
| 6 | Reversing light (manual gearbox) |
| 7 | Ignition, engine control unit, automatic gearbox |
| 8 | Brake pedal switch, clutch pedal switch |
| 9 | Operating controls for the heating, control unit for air conditioning system, parking aid, control unit for cornering lights, radiator fan, washing nozzles |
| 10 | Windscreen Wiper and Washer System |
| 11 | Mirror adjustment |
| 12 | Control unit for trailer detection |
| 13 | Control unit for automatic gearbox |
| 14 | Motor for halogen projector headlights with cornering light function |
| 15 | PDA navigation system |
| 16 | Electro-hydraulic power steering |
| 17 | Light switch power supply |
| 18 | Mirror heater |
| 19 | S-contact |
| 20 | Alarm |
| 21 | Reversing light, fog lights with the function CORNER |
| 22 | Operating controls for the heating, control unit for air conditioning system, parking aid, mobile phone, instrument cluster, steering angle sender, ESC, vehicle voltage control unit, multifunction steering wheel |
| 23 | Interior lighting, storage compartment and luggage compartment, side lights |
| 24 | Central control unit |
| 25 | Seat heaters |
| 26 | Rear window wiper |
| 27 | Telephone preinstallation |
| 28 | Petrol engine: AKF valve, petrol engine: Control flap |
| 29 | Injection, coolant pump |
| 30 | Fuel pump, ignition, Cruise control system, operation of PTC relay |
| 31 | Lambda probe |
| 32 | High pressure fuel pump, pressure valve |
| 33 | Engine control unit |
| 34 | Engine control unit, vacuum pump |
| 35 | Daytime running lights/radio for vehicles with START-STOP |
| 36 | Main beam |
| 37 | Rear fog light, DC/DC converter START-STOP |
| 38 | Fog lights |
| 39 | Air blower for heating |
| 40 | Not assigned |
| 41 | Not assigned |
| 42 | Rear window heater |
| 43 | Horn |
| 44 | Windscreen wipers |
| 45 | Central control unit for convenience system |
| 46 | Engine control unit, fuel pump |
| 47 | Cigarette lighter, power socket in the luggage compartment |
| 48 | ABS, START-STOP (DC/DC) converter ESP |
| 49 | Turn signal lights, brake lights |
| 50 | START-STOP (DC/DC) converter infotainment, radio |
| 51 | Electrical power window (front and rear) – left side |
| 52 | Electrical power window (front and rear) – right side |
| 53 | Parking light = left side, electrical sliding/tilting roof |
| 54 | START-STOP (instrument cluster), alarm |
| 55 | Control unit for automatic gearbox |
| 56 | Headlight cleaning system, parking light – right side |
| 57 | Left low beam, headlight range adjustment |
| 58 | Low beam on the right |

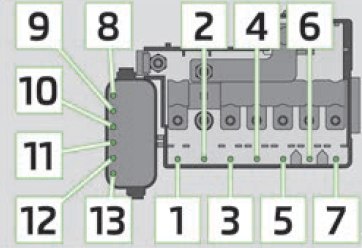

Fuse box in engine compartment
| Numer | Power consumer |
| 1 | Generator |
| 2 | Not assigned |
| 3 | Interior |
| 4 | Electrical auxiliary heating system |
| 5 | Interior |
| 6 | Glow plugs, coolant fan |
| 7 | Electro-hydraulic power steering |
| 8 | ABS or TCS or ESP |
| 9 | Radiator fan |
| 10 | Automatic gearbox |
| 11 | ABS or TCS or ESP |
| 12 | Central control unit |
| 13 | Electrical auxiliary heating system |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
