SsangYoung Korando (1996 – 2006) – fuse box diagram

19 March 2020 admin Korando, SsangYong 0

SsangYoung Korando (1996 – 2006) – fuse box diagram

Year of production: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

Location

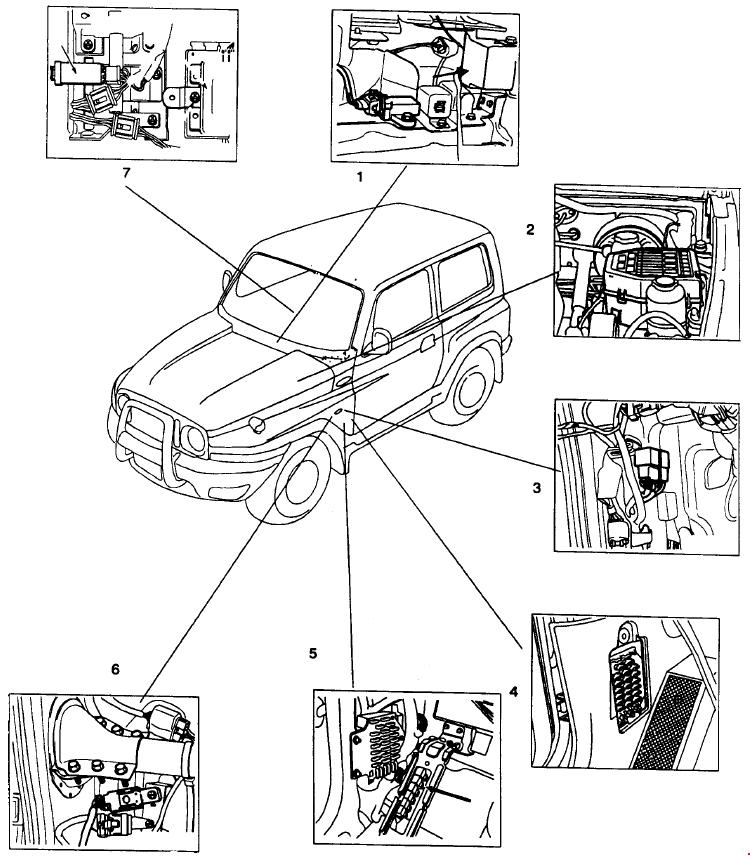

SsangYoung Korando - fuse box diagram - location
SsangYoung Korando – fuse box diagram – location
  1. Automatic Door Lock Relay
  2. Engine Room Fuse Box
  3. ABD Motor and Valve Relay
  4. Interior Fuse Box
  5. Interior Relay
  6. Window Auto Down Relay
  7. Over Voltage Protection Relay: OVPR

Compartment Fuse Box

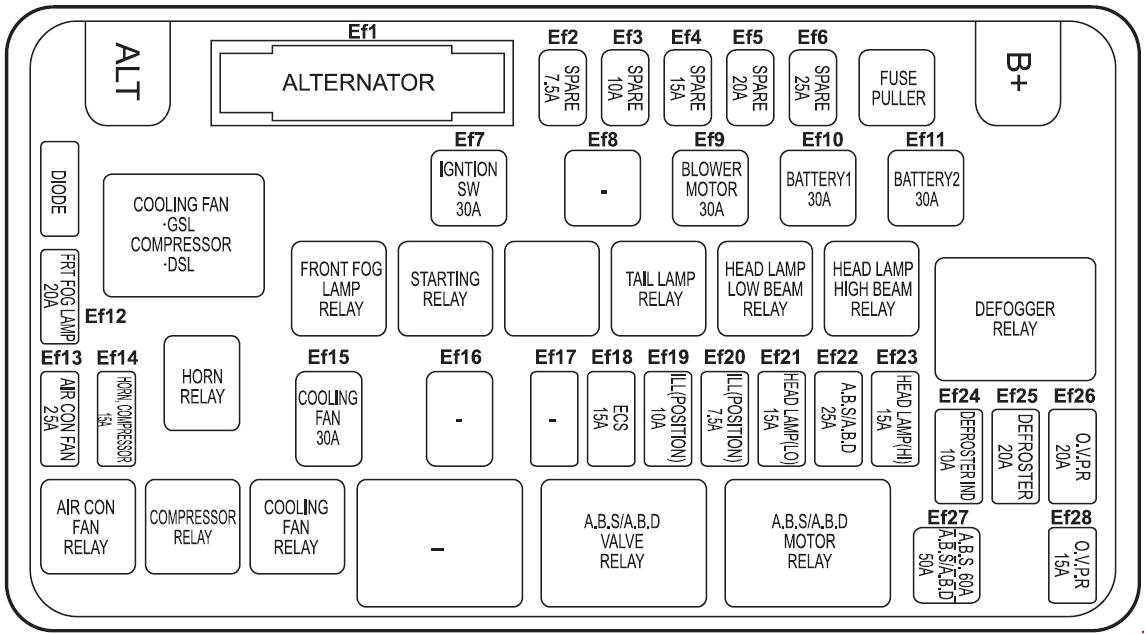

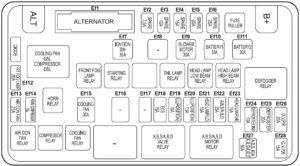

SsangYoung Korando - fuse box diagram - compartment fuse box
SsangYoung Korando – fuse box diagram – compartment fuse box
No.
 A
 Circuit Protected
Ef1 120 Alternator Main – Gasoline
80 Alternator Main – Diesel
Ef2 7.5 Not Used
Ef3 10 Not Used
Ef4 15 Not Used
Ef5 20 Not Used
Ef6 25 Not Used
Ef7 30 Ignition SW
Ef8 – Not Used
Ef9 30 Blower Motor
Ef10 30 Battery 1 (F1-F7)
Ef11 30 Battery 2 (F17-F22)
Ef12 20 Front Fog Lamp
Ef13 25 A/C Condenser Fan
Ef14 15 Horn, A/C Compressor
Ef15 30 Cooling Fan
Ef16 – Not Used
Ef17 – Not Used
Ef18 – Not used
Ef19 10 Illumination (Position)
Ef20 7.5 Illumination (Switch)
Ef21 15 Head Lamp (LO)
Ef22 25 ABS/Automatic Brake Differential (ABD)
Ef23 15 Head Lamp (HI)
Ef24 10 Defroster Indicator
Ef25 20 Dsfroster
Ef26 20 Over Voltage Protection Relay
Ef27 60 ABS
50 ABS/ABD
Ef28 15 Over Voltage Protection Relay

Engine Compartment Fuse Box

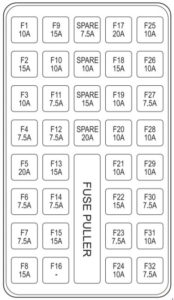

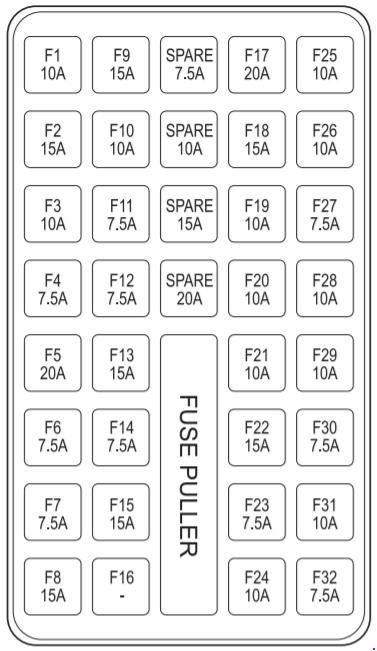

SsangYoung Korando - fuse box diagram - compartment fuse box
SsangYoung Korando – fuse box diagram – compartment fuse box
No.
 A
 Circuit Protected
F1 10 Interior Lamp, Rear Fog Lamp, Cluster
F2 15 Hazard Lamp
F3 15 Audio
F4 7.5 STICS, REKES, Clock
F5 30 Power Window
F6 7.5 Seat Belt, Diagnosis(DLC)
F7 – Not used
F8 15 Starting
F9 15 Front Wiper & Washer
F10 10 Rear Wiper
F11 7.5 A/C System,Defroster
F12 7.5 Head Lamp, STICS
F13 – Not used
F14 7.5 Audio, OSRV Mirror
F15 15 Cigar Lighter
F16 – Not used
F17 20 Transfer Case, Transfer Case Control Unit
F18 15 Stop Lamp
F19 10 Automatic Brake Differential (ABD)
F20 10 Seat Heater, Auto Antenna
F21 10 Door Lock System
F22 15 Fuel Pump
F23 7.5 Transfer Case, Transfer Case Control Unit, Transmission Control Unit
F24 10 Over Voltage Protection Relay, EGR
F25 7.5 HLLD, B/UP Lamp
F26 10 Turn Signal Lamp
F27 7.5 BTSI, Pre-heating, Shift Lock
F28 10 Speedometer
F29 15 ABS.ABD
F30 7.5 Inside Rear View Mirror, Cruise Control, Immobilizer, Cluster
F31 10 Air Bag
F32 7.5 Seat Heater

Relay Box

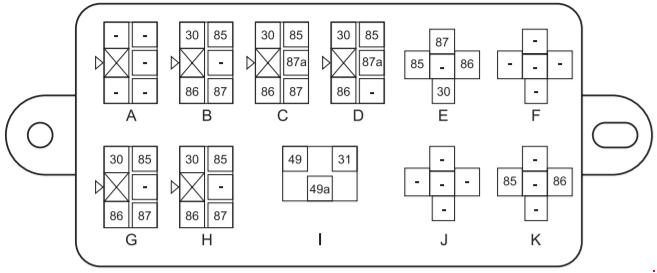

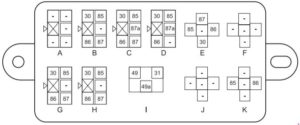

SsangYoung Korando - fuse box diagram - relay box
SsangYoung Korando – fuse box diagram – relay box
No.
 Relay
A Not used
B Neutral Relay
C Front Wiper Relay
D Automatic Brake Differential Relay
E Fuel Pump Relay
F Not used
G Power Window Relay
H Shift Lock Relay
I Flasher Unit
J Rear Fog Lamp Relay
K Resistor With Diode

Blower Relay (No. 6)

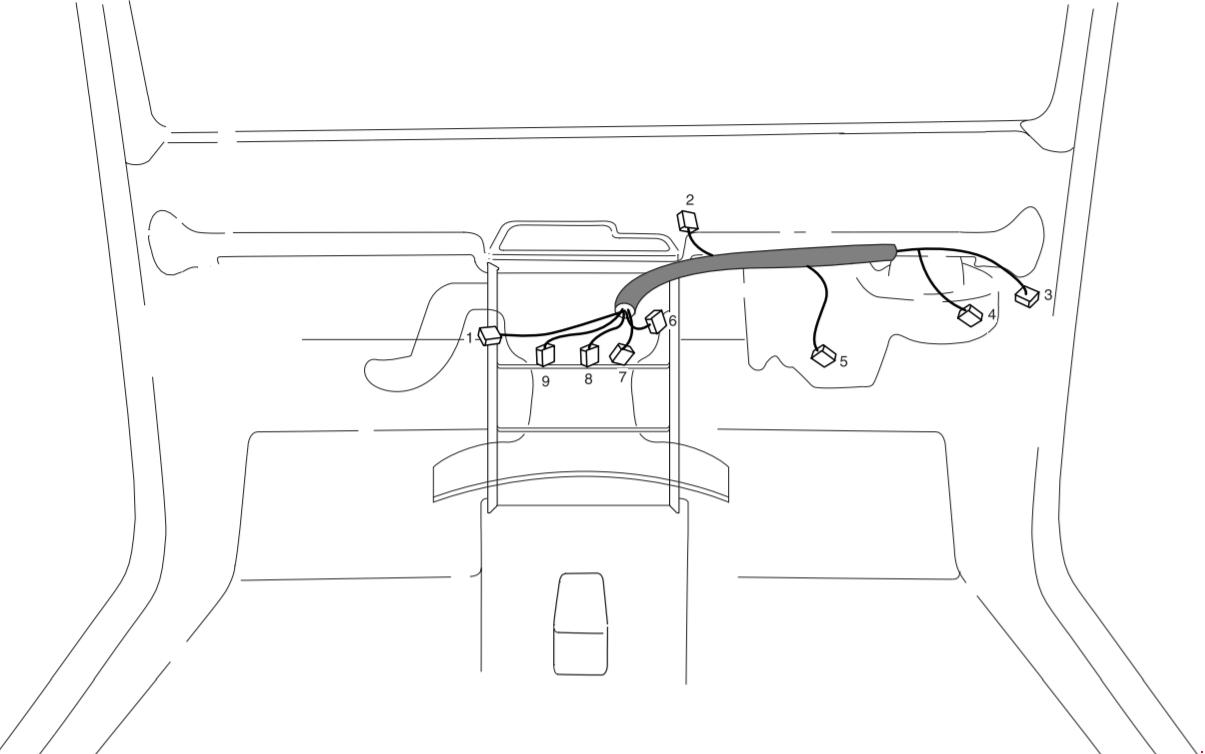

SsangYoung Korando - fuse box diagram - blower relay
SsangYoung Korando – fuse box diagram – blower relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
