Subaru Ascent (2018) – fuse box diagram
Year of production: 2018

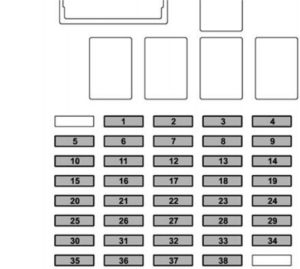

Passenger compartment fuse panel
The fuse panel is located on the left side of the dashboard, below, under the cover
Fuse | A | Circuit |
---|---|---|
1 | — | — |
2 | 20A | CIGAR |
3 | 7.5A | IGA-1 |
4 | 15A | AUDIO NAVI |
5 | 15A | IG B-2 |
6 | — | — |
7 | — | — |
8 | 15A | A/C IG |
9 | 7.5A | ACC |
10 | 7.5A | IG B-1 |
11 | — | — |
12 | — | — |
13 | 7.5A | IGA-3 |
14 | 10A | UNIT +B |
15 | 7.5A | METER IG |
16 | — | — |
17 | 7.5A | MIRROR |
18 | 7.5A | LAMP IG |
19 | 10A | IGA-2 |
20 | 10A | SRS AIRBAG |
21 | — | — |
22 | 15A | STRG/H |
23 | 10A | DRL |
24 | — | — |
25 | — | — |
26 | 10A | BACK UP |
27 | 15A | SEAT HTR F |
28 | 15A | TRAIL |
29 | — | — |
30 | — | — |
31 | — | — |
32 | 7.5A | ILLUMI |
33 | 7.5A | KEY SW A |
34 | — | — |
35 | — | – |
36 | 7.5A | KEY SW B |
37 | 7.5A | STOP |
38 | 7.5A | EYE SIGHT |

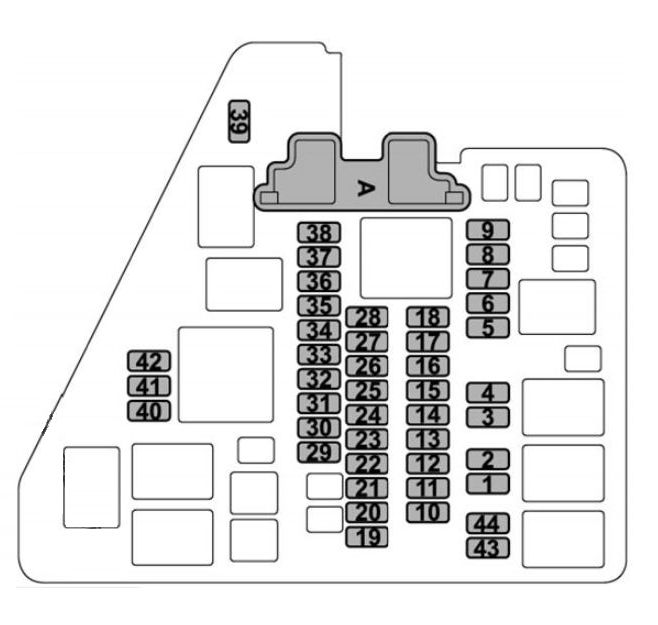

Engine compartment fuse box
The power distribution box is located in the engine compartment
Fuse | A | Circuit |
A | — | Main fuse |
1 | 7.5A | HORN HI |
2 | 7.5A | HORN LO |
3 | 15A | H/L LO RH |
4 | 15A | H/L LO LH |
5 | 10A | DCM |
6 | 10A | H/L HI RH |
7 | 10A | H/L HI LH |
8 | 10A | TAIL |
9 | 30A | JB-B |
10 | 25A | FUEL |
11 | 7.5A | OBD |
12 | 10A | ODS |
13 | 7.5A | PU B/UP |
14 | 15A | HAZARD |
15 | — | — |
16 | 10A | MB-B |
17 | 20A | SOCKET |
18 | 20A | D/L |
19 | 15A | ETC |
20 | 10A | E/G2 |
21 | 7.5A | CVT SSR |
22 | 20A | DI |
23 | — | — |
24 | 20A | O2 HTR |
25 | — | — |
26 | 20A | TCU |
27 | 15A | IG COIL |
28 | 15A | E/G1 |
29 | 30A | BACKUP |
30 | 15A | R_S/H |
31 | 30A | VDC SOL |
32 | 15A | F. FOG |
33 | 30A | R. DEF |
34 | 20A | AUDIO |
35 | 15A | DEICER |
36 | — | — |
37 | 20A | BLOWER |
38 | 20A | BLOWER |
39 | — | — |
40 | 15A | R. WIPER |
41 | 15A | F. WASH |
42 | 30A | F. WIPER |
43 | — | — |
44 | — | — |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
