Subaru Forester (2008) – fuse box diagram

Subaru Forester (2008) – fuse box diagram

Year of production: 2008

Fuse panel located behind the instrument panel

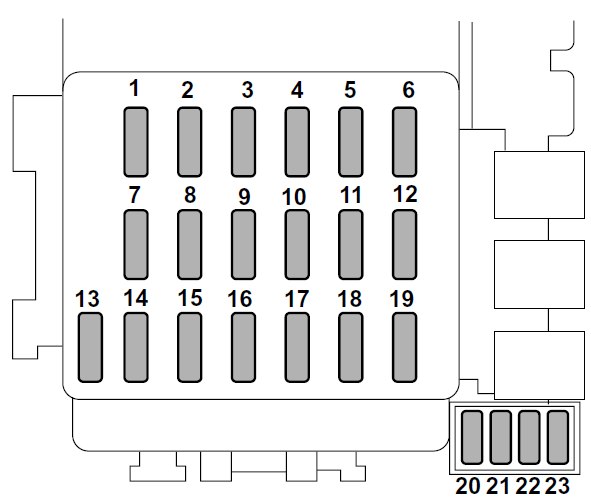

Subaru Forester – fuse box – behind the coin tray
Subaru Forester – fuse box – behind the coin tray
Fuse Ampere rating [A] Circuit
1 15 Heater fan
2 15 Heater fan
3 15 Power door lock, Remote keyless entry
4 15 Power outlet (front), Remote controlled rear view mirrors
5 10 Tail light, Parking light
6 15 SRS airbag
7 15 Fog light
8 30 ABS, Vehicle Dynamics Control system (models with Vehicle Dynamics Control system only)
9 15 Radio
10 10
11 15 Engine ignition system, SRS airbag, AT control system
12 10 Illumination brightness control
13 20 Wiper deicer, Outside mirror defogger
14 10 Meter
15 30 Windshield wiper and washer
16 20 Brake light
17 15 Air conditioner
18 15 Backup light, Cruise control
19 15 Power outlet (cargo)
20 15 Rear window wiper and washer
21 15 Ignition coil (Non-turbo model only)
22 10 Seat heater
23

Fuse panel located in the engine compartment

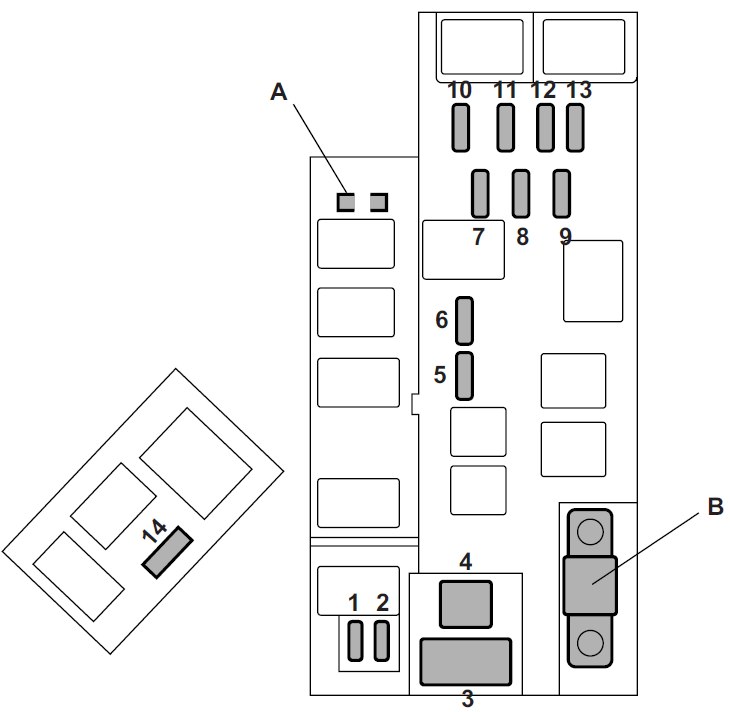

Subaru Forester – fuse box – engine compartment

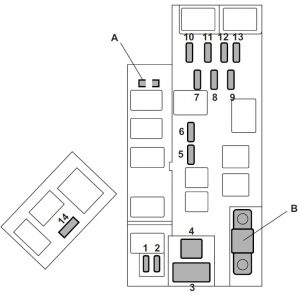

Subaru Forester – fuse box – engine compartment
Fuse Ampere rating [A] Power consumer
1 30 Radiator cooling fan (Main)
2 30 Radiator cooling fan (Sub)
3 50 Vehicle Dynamics Control system (models with Vehicle Dynamics Control system only)
30 ABS motor
4 30 Engine sensor (Non-turbo models only)
5 20 Rear window defogger
6 15 Hazard warning flasher, Horn
7 15 Turn signal lights
8 10 Automatic transmission control unit
9 10 Alternator
10 15 Headlight (right side)
11 15 Headlight (left side)
12 20 Lighting switch
13 15 Clock, Interior light
14 10 Secondary air combination valve (Turbo models only)
A FWD socket (AT models without Vehicle Dynamics Control system)
B Main fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
