Subaru Legacy (2003) – fuse box diagram
Year of production: 2003
Fuse panel located behind the coin tray
2.5 liter models

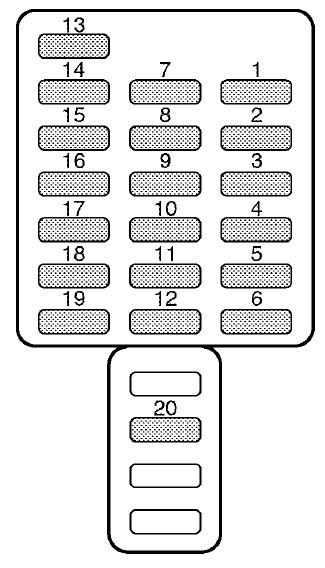

Subaru Legacy – fuse box – behind the coin tray (2.5 liter models)
Fuse
Ampere rating [A]
Circuit
1
15
Heater fan
2
15
Heater fan
3
15
Power door lock, Keyless entry
4
20
Cigarette lighter, Remote controlled rear view mirrors
5
10
Tail light, Parking light
6
15
SRS airbag
7
15
Front fog light
8
30
ABS solenoid
9
15
Radio, Clock
10
15
Trailer
11
15
Engine ignition system, SRS airbag
12
10
Illumination brightness control
13
15
Fuel pump
14
10
Rear window wiper and washer
15
30
Windshield wiper and washer
16
20
Brake light
17
15
Air conditioner
18
15
Backup light, Cruise control, ABS control
19
20
Mirror heater, Wiper deicer
20
20
Accessory power socket, Seat heater
3.0 liter models

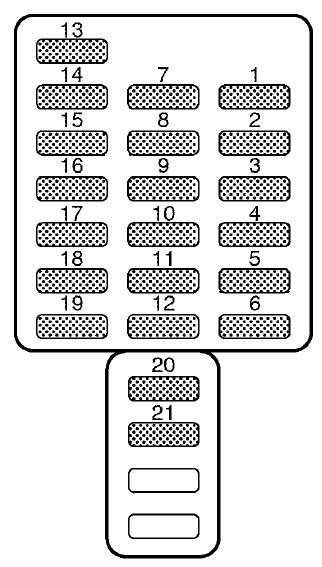

Subaru Legacy – fuse box – behind the coin tray (3.0 liter models)
Fuse
Ampere rating [A]
Circuit
1
15
Heater fan
2
15
Heater fan
3
15
Power door lock, Keyless entry
4
20
Cigarette lighter, Remote controlled rear view mirrors
5
10
Tail light, Parking light
6
15
SRS airbag
7
15
Front fog light
8
30
ABS (VDC) solenoid
9
15
Radio, Clock
10
15
Trailer
11
15
Engine ignition system, SRS airbag
12
10
Illumination brightness control
13
15
Fuel pump
14
10
Rear window wiper and washer
15
30
Windshield wiper and washer
16
20
Brake light
17
15
Air conditioner
18
15
Backup light, Cruise control, ABS (VDC) control
19
20
Mirror heater, Wiper deicer
20
20
McIntosh audio amp (if equipped)
21
20
Accessory power socket, Seat heater
Fuse panel located in the engine compartment
2.5 liter models

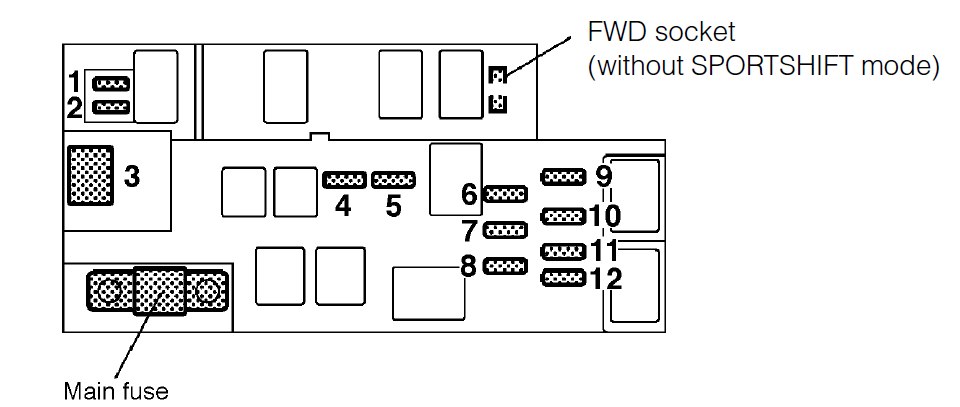

Subaru Legacy – fuse box – engine compartment (2.5 liter models)
Fuse
Ampere rating [A]
Power consumer
1
20
Radiator cooling fan (Main)
2
20
Radiator cooling fan (Sub)
3
50
ABS motor
4
20
Rear window defogger
5
15
Hazard warning flasher, Horn
6
15
Meter, SRS airbag system warning light
7
10
Automatic transmission control unit, ABS UNIT
8
10
Alternator
9
15
Headlight (right side)
10
15
Headlight (left side)
11
20
Lighting switch
12
15
Clock, Interior light
3.0 liter models

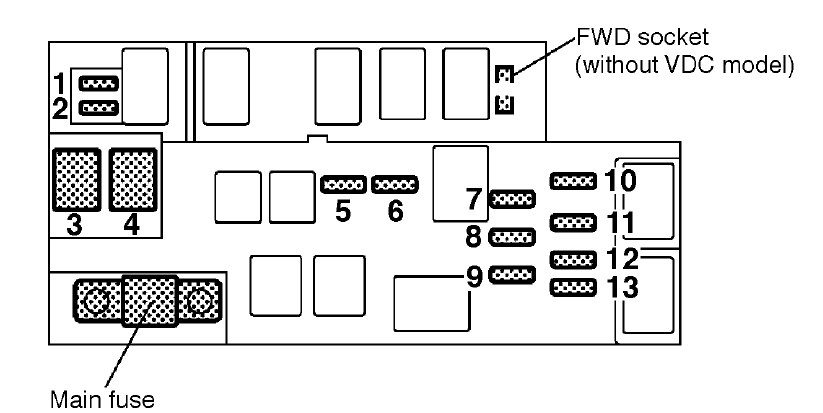

Subaru Legacy – fuse box – engine compartment (3.0 liter models)
Fuse
Ampere rating [A]
Power consumer
1
30
Radiator cooling fan (Main)
2
30
Radiator cooling fan (Sub)
3
50
ABS (VDC) motor
4
30
McIntosh audio amp (if equipped)
5
20
Rear window defogger
6
15
Hazard warning flasher, Horn
7
15
Meter, SRS airbag system warning light
8
10
Automatic transmission control unit, ABS UNIT
9
10
Alternator
10
15
Headlight (right side)
11
15
Headlight (left side)
12
20
Lighting switch
13
15
Clock, Interior light
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
