Suzuki Alto 800, K10 (2012 – present) – fuse box diagram
Fuses
Vehicle has three type od fuse:
- Main fuse – takes current directly from the battery
- Promary fuses – are between the main fuse and individual fuses, and are for electrical load groups
- Individual fuses are individual electrical circuits. To remove a fuse, use the fuse puller provide in the fuse box

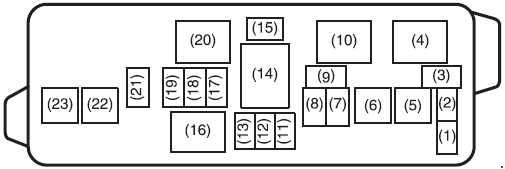

Fuses in the engine compartment
| No. |
A |
Function/component |
| 1 | – | Not used |
| 2 | – | Not used |
| 3 | 10 | Font fog light |
| 5 | 50 | Ignition switch |
| 6 | 50 | Battery 1 |
| 7 | 15 | Headlight (left) |
| 8 | 15 | Headlight (right) |
| 9 | 7.5 | CNG (if equipped) |
| 11 | – | Not used |
| 12 | – | Not used |
| 13 | – | Not used |
| 14 | 80 | All electric load |
| 15 | – | Not used |
| 17 | 30 | Radiator fan |
| 18 | 15 | Fuel injection |
| 19 | 10 | A/c compressor |
| 21 | 7.5 | Automated Manual Transaxle (if equipped) CNG Valve (if equipped) |
| 22 | 40 | Automated Manual Transaxle pump (if equipped) |
| 23 | 30 | Battery 2 |
| Relay | ||
| 4 | A/c compressor relay | |
| 10 | Radiator fan relay | |
| 16 | Main relay | |
| 20 | Fuel pump relay | |

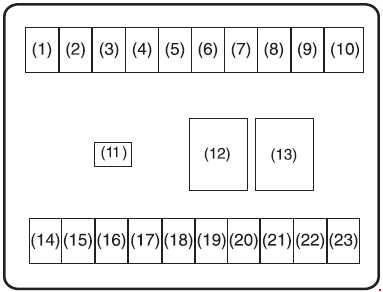

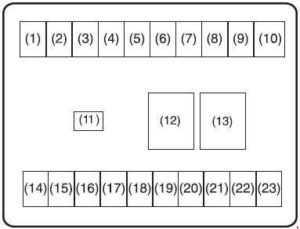

Fuses under the dashboard
| No. |
A |
Function/component |
| 1 | 10 | IG2 SIG |
| 2 | 15 | Wiper |
| 3 | – | Not used |
| 4 | 7.5 | Automated Manual Transaxle 2 (if equipped) |
| 5 | 30 | Blower motor |
| 6 | 10 | Stop light |
| 7 | 10 | Tail light |
| 8 | 15 | Audio |
| 9 | 20 | Door lock |
| 10 | – | Not used |
| 11 | 15 | Accessory |
| 12 | – | Not used |
| 13 | 30 | Power window |
| 14 | 15 | Ignition switch |
| 15 | 10 | Turn signal light |
| 16 | 10 | Meter |
| 17 | 7.5 | Air bag |
| 18 | 7.5 | IG1 SIG |
| 19 | – | Not used |
| 20 | – | Not used |
| 21 | 30 | Power steering |
| 22 | 30 | ST SIG |
| 23 | 15 | Horn/Hazard |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
