Suzuki Ertiga – fuse box diagram
Year of production:

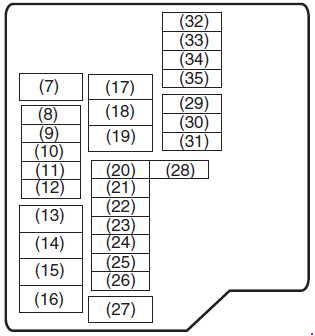

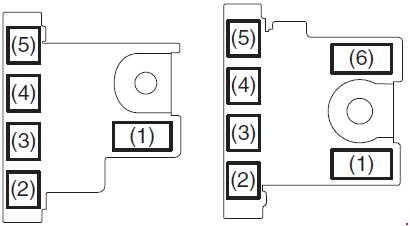

Fuse box in the engine compartment
No. |
A |
Function/component |
1 | 100 | FL1 (GAS) |
120 | FL1 (DIESEL without ISG) | |
450 | FL1 (DIESEL with ISG) | |
2 | 100 | FL2 |
3 | 100 | FL3 |
4 | 50 | FL4 |
5 | 80 | FL5 |
6 | 100 | FL6 (DIESEL) |
7 | 50 | Ignition switch -2 |
8 | 7.5 | ECM (DIESEL |
9 | 15 | A/T controller |
10 | 20 | Fuel pump (DIESEL) |
11 | 10 | Air compressor |
12 | 15 | FI (GAS) |
13 | 30 | FI (DIESEL) |
14 | 60 | Power steering |
15 | 30 | Radiator fan |
16 | 40 | ABS motor |
17 | 40 | Blower fan |
18 | 30 | Starting motor |
19 | – | Not used |
20 | 30 | Back up |
21 | 30 | DCDC |
22 | 15 | Head light (Left) |
23 | 25 | ABS control module |
24 | 15 | Head light (Right) |
25 | 20 | Front fog light |
26 | 7.5 | CNG Valve |
27 | 40 | Ignition switch |
28 | 7.5 | Starting Signal |
29 | 20 | INJ DRV (DIESEL) |
30 | 10 | FI2 (DIESEL) |
31 | – | Not used |
32 | – | Not used |
33 | – | Not used |
34 | 7.5 | CNG |

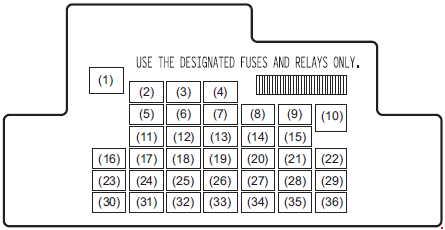

Fuses under the Dash Board
o. |
A |
Function/component |
1 | – | Not used |
2 | – | Not used |
3 | 20 | Steering lock |
4 | 20 | Rear defogger |
5 | – | Not used |
6 | – | Not used |
7 | – | Not used |
8 | 7.5 | Starting Signal |
9 | 15 | ACC-2 |
10 | 30 | Power window |
11 | 10 | Hazard |
12 | 7.5 | BCM |
13 | 15 | Ignition coil |
14 | 10 | ABS control module |
16 | 10 | A-STOP controller |
17 | 15 | Horn |
18 | 10 | Stop light |
19 | 10 | Air bag |
20 | 10 | Back-up light |
21 | 15 | Rear wiper / Washer |
22 | 25 | Front wiper |
23 | 7.5 | Dome light |
24 | Not used | |
25 | – | Not used |
26 | – | Not used |
27 | 7.5 | Ignition-1 signal |
28 | 15 | Radio 2 |
29 | 10 | ACC-3 |
30 | 15 | Radio |
31 | 10 | Tail lamp |
32 | 20 | D/L |
33 | – | Not used |
34 | 10 | Meter |
35 | 7.5 | Ignition-2 signal |
36 | – | Not used |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
