TATA Bolt (2015 – 2017) – fuse box diagram

3 December 2017 admin Bolt, TATA 0

Year of production: 2015, 2016, 2017

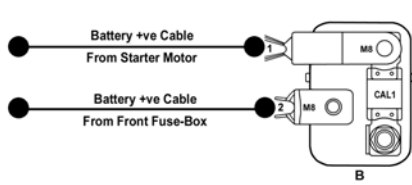

Battery mounted fuse box

TATA Bolt - fuse box - battery
TATA Bolt – fuse box – battery
Fuse Function Ampere rating [A]
PF1 STARTER MOTOR 400

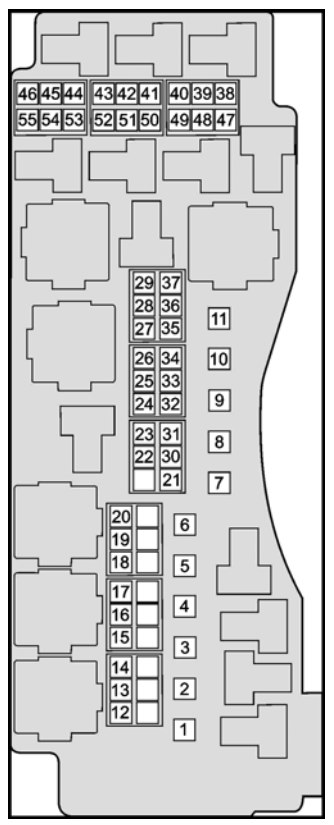

Engine compartment fuse and relay box

TATA Bolt - fuse box - engine compartment
TATA Bolt – fuse box – engine compartment
Fuse Function Ampere rating [A]
1 INTERIOR F/B 2 IGNITION 60
2 ABS 40
3 GLOW PLUG 60
4 COOLING FAN HIGH SPEED 40
5 EPAS 60
6 — —
7 INTERIOR F/B 1 BATTERY 60
8 UNDER BONNET F/R BOX 60
9 — —
10 IGNITION LOAD 60
11 — —
12 COMPRESSOR 10
13 STARTER SOLENOID 20
14 ABS ECU 25
15 TCU AMT 15
16 HORN HIGH /LOW TONE 15
17 FRONT FOG 10
18 EMS BATTERY 10
19 AMT HYDRAULIC PUMP 30
20 FUEL PUMP 20
21 BRAKE LAMP 10
22 RELAY COIL 5
23 — —
24 FRONT WIPER MOTOR 20
25 ABS 5
26 WASHER MOTOR 10
27 TCU AMT 10
28 REVERSE & BRAKE LAMP 10
29 REAR WIPER 10
38 EMS ECU (DIESEL) 20
39 EMS ECU  (COMMON) 15
40 EMS ECU (DIESEL) 10
EMS ECU (PETROL) 20
41 — —
42 HEAD LAMP LOW 15
43 EMS IGN 10
44 COOLING FAN LOW SPEED 20
45 — —
46 HEAD LAMP LOW 15

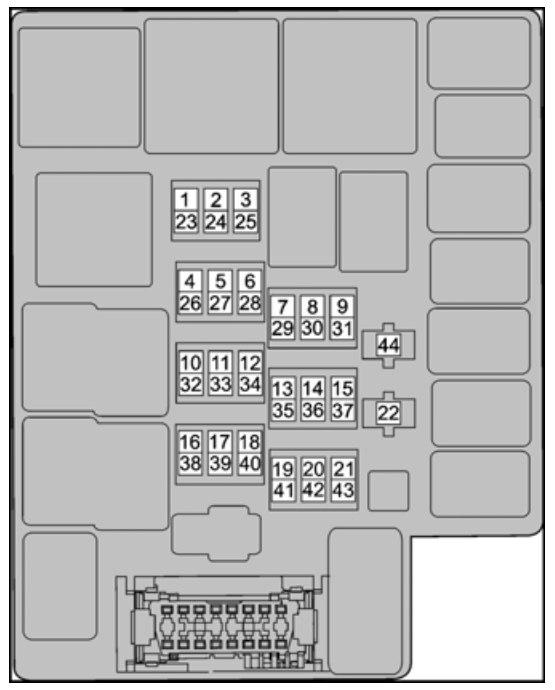

Cabin compartment fuse box

TATA Bolt - fuse box - cabin compartment
TATA Bolt – fuse box – cabin compartment
Fuse Function Ampere rating [A]
1 AIR BAG 10
2 ACCESSORY 10
3 — —
4 BCM 15
5 INTERIOR LAMP 5
6 MIRROR ADJUST MOTOR 5
7 BCM /POSITION LAMP 15/5
8 CLUSTER / OBD 10
9 BCM/POSITION 15/5
10  KEY IN AFTER MARKET 5
11 IMMOBILIZER / EPAS 5
12 — —
13 BLOWER MOTOR 30
14 CDL / ACCESSORY 15
15 POWER SOCKET 15
16 RELAY COILS 5
17 — —
18 HVAC 10
19 HRW / FLASHER 25/10
20  IGN SUPPLY 10
21 — —
22 TRANSIT/INFOTAINMENT 15

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
