TATA Grande – fuse box diagram

20 June 2020 admin Grande, TATA 0

TATA Grande – fuse box diagram

Year of production:

Fuse and relays (DICOR)

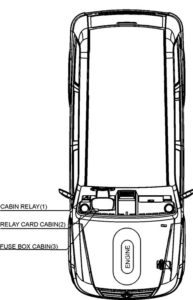

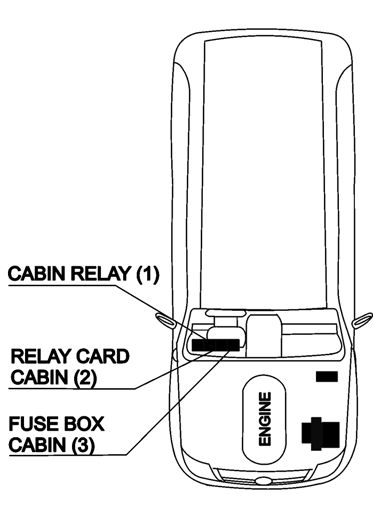

Location

TATA Grande - fuse box diagram - location
TATA Grande – fuse box diagram – location

Cabin relay (1)

TATA Grande - fuse box diagram - cabin relay (1)
TATA Grande – fuse box diagram – cabin relay (1)

Cabin relay card (2)

TATA Grande - fuse box diagram - cabin relay card (2)
TATA Grande – fuse box diagram – cabin relay card (2)

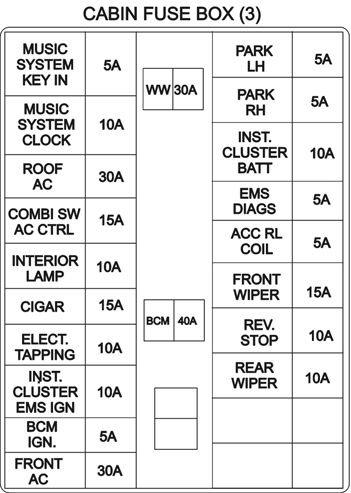

Cabin fuse box (3)

TATA Grande – fuse box diagram – cabin fuse box (3)
TATA Grande – fuse box diagram – cabin fuse box (3)

Fuse and relays (TURBO)

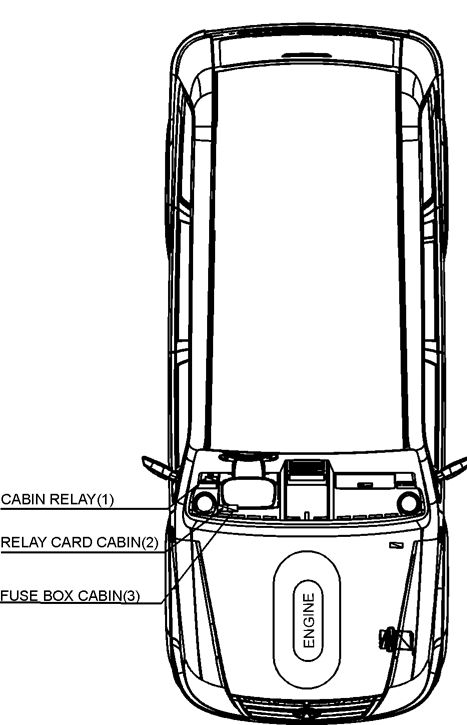

Location

TATA Grande (Turbo) – fuse box diagram – location
TATA Grande (Turbo) – fuse box diagram – location

Cabin relay (1)

TATA Grande Turbo - fuse box diagram - cabin relay (1)
TATA Grande Turbo – fuse box diagram – cabin relay (1)

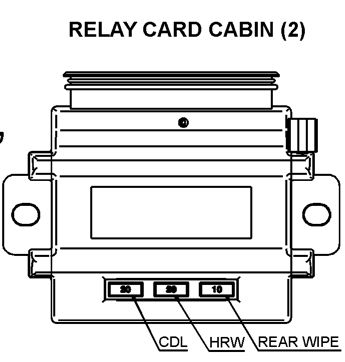

Relay card cabin (2)

TATA Grande Turbo - fuse box diagram - cabin relay card (2)
TATA Grande Turbo – fuse box diagram – cabin relay card (2)

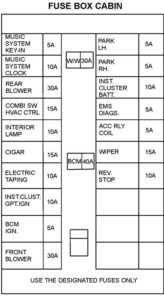

Fuse box cabin

TATA Grande Turbo - fuse box diagram - cabin fuse box
TATA Grande Turbo – fuse box diagram – cabin fuse box

Fuse and relay (Dicor)

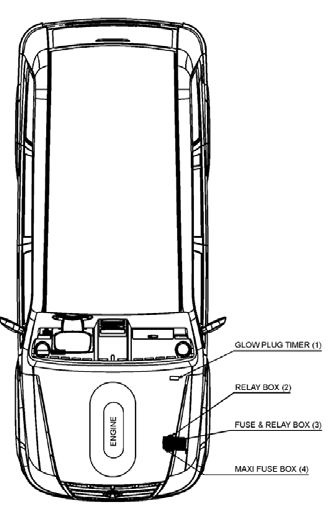

Location

TATA Grande (Dicor) - fuse box - diagram - location
TATA Grande (Dicor) – fuse box – diagram – location

Glow plug timer (1)

TATA Grande (Dicor) - fuse box diagram - glow plug timer
TATA Grande (Dicor) – fuse box diagram – glow plug timer

Relay box (2)

TATA Grande (Dicor) - fuse box diagram - relay box (2)
TATA Grande (Dicor) – fuse box diagram – relay box (2)

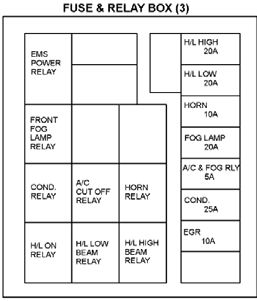

Fuse and relay box (3)

TATA Grande (Dicor) - fuse box diagram - fuse and relay box (3)
TATA Grande (Dicor) – fuse box diagram – fuse and relay box (3)

Maxi fuse box (4)

TATA Grande (Dicor) - fuse box diagram - maxi fuse box (4)
TATA Grande (Dicor) – fuse box diagram – maxi fuse box (4)

Fuse and relay (Turbo)

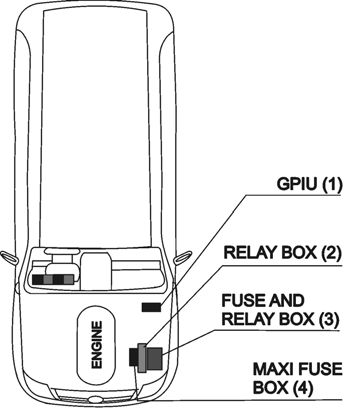

Location

TATA Grande (Turbo) - fuse box - diagram - location
TATA Grande (Turbo) – fuse box – diagram – location

GPIU (1)

TATA Grande Turbo - fuse box diagram - GPIU
TATA Grande Turbo – fuse box diagram – GPIU

Relay box (2)

TATA Grande (Turbo) - fuse box diagram - relay box (2)
TATA Grande (Turbo) – fuse box diagram – relay box (2)

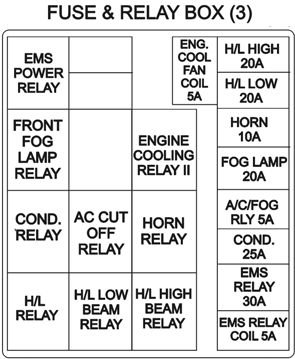

Fuse and relay box (3)

TATA Grande (Turbo) - fuse box diagram - fuse and relay box (3)
TATA Grande (Turbo) – fuse box diagram – fuse and relay box (3)

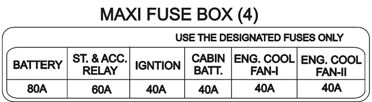

Maxi fuse box (4)

TATA Grande (Turbo) - fuse box diagram - maxi fuse box (4)Engine Compartment Relay Box
TATA Grande (Turbo) – fuse box diagram – maxi fuse box (4)Engine Compartment Relay Box
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
