TATA Hexa (2017) – fuse box diagram

3 December 2017 admin Hexa, TATA 0

Year of production: 2017

Battery mounted fuse and relay box

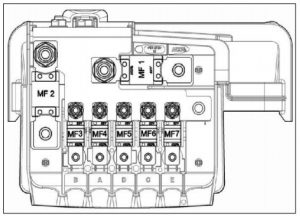

TATA Hexa - fuse box - battery
TATA Hexa – fuse box – battery
Fuse Function Ampere rating [A]
MF1 STARTER MOTOR 500
MF2 ALTERNATOR 150
MF3 COCKPIT 60
MF4 ABS/ESP 40
MF5 IGNITION 60
MF6
MF7 COOLING FAN 1 30

Engine compartment fuse and relay box

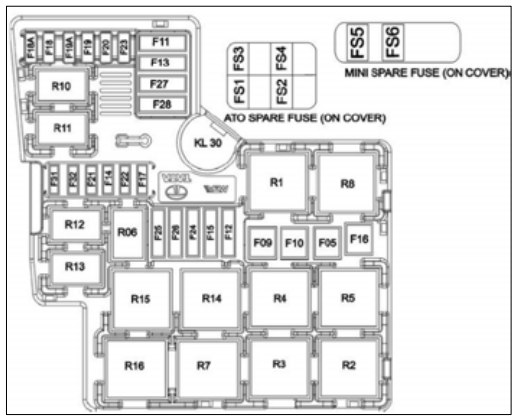

TATA Hexa - fuse box - engine compartment
TATA Hexa – fuse box – engine compartment
Fuse Function Ampere rating [A]
F05 ACCESSORIES 60
F09 COOLING FAN II 40
F10 HEATED REAR SCREEN 30
F11 TOD 20
F12 HVAC 40
F13 ABS/ESP 25
F14 AIRCON 15
F15 EMS 30
F16 STARTER 40
F17 NOT USED —
F18 HEAD LAMP LOW RH 10
F18A HEAD LAMP LOW LH 10
F19 HEAD LAMP HIGH RH 10
F19A HEAD LAMP HIGH LH 10
F20 NOT USED —
F21 HORN 15
F22 NOT USED —
F23 REAR WIPER 15
F24 GLOW PLUG I 40
F25 NOT USED —
F26 GLOW PLUG II 40
F27 NOT USED —
F28 HAS BATT. 30
F31 AFTER MARKET POWER SOCKET 10
F32 AT BATT. 15

Cabin wiring harness fuses & relay box

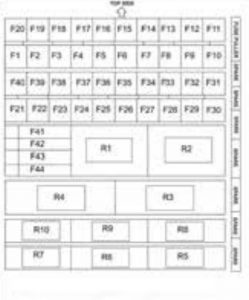

TATA Hexa - fuse box - cabin compartment

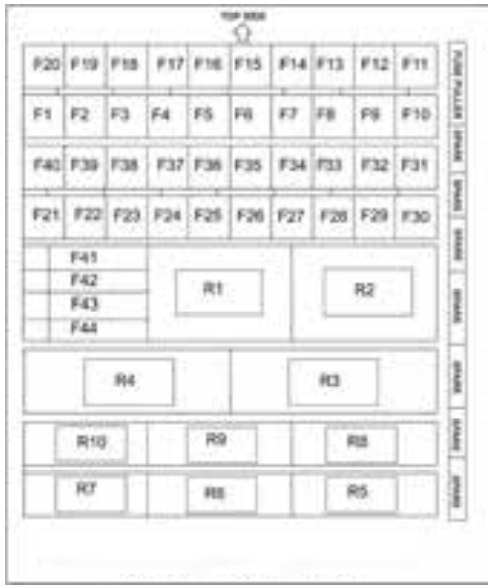

TATA Hexa – fuse box – cabin compartment
Fuse Function Ampere rating [A]
F1 W/W FR LH BATT. 25
F2 DRIVE MODE SW BATT 5
F3 BCM 1 BATT. 15
F4 AFTER MARKET POWER SOCKET BATT 10
F5 CDL BATT. 20
F6 DIAGNOSTIC/ BATT. 5
F7 HEATED REAR SCREEN (HRW) 25
F8 MIRROR HEATER 10
F9 — —
F10 — —
F11 INSTRUMENT CLUSTER BATT. 10
F12 IMMOBILIZER & KEY IN BATT. 5
F13 BCM 2 BATT. 15
F14 W/W RR RH BATT. 25
F15 W/W RR LH BATT. 25
F16 TRANSIT / INFOTAINMENT BATT. 15
F17 HVAC BATT. 5
F18 BCM 3 BATT. 15
F19 BRAKE SW BATT. 5
F20 W/W FR RH BATT 25
F21 ACC RELAY COIL 5
F22 POWER SOCKET III ACC 15
F23 USB CHARGER ACC 5
F24 RR BLOWER SW IGN 5
F25 FR,RR WIPER IGN. 25
F26 FR HVAC IGN. 10
F27 REVERSE/GSL AT 5
F28 PDC,TOD,INT WIPE, DCS IGN 5
F29 TOD FR AXLE IGN. 10
F30 REV SW/LAMP MT/AT IGN 5
F31 SRS (AIRBAG) IGN. 10
F32 INSTRUMENT CLUSTER IGN 10
F33 ABS / ESP IGN 5
F34 EMS IGN 10
F35 AT TCU IGN 5
F36 IMMOBILIZER IGN 5
F37 W/W CONTROLLER IGN 5
F38 IGN RELAY COIL 5
F39 BCM IGN 5
F40 STARTER RELAY COIL 5
F41 POWER SOCKET II ACC 15
F42 POWER SOCKET I ACC 15
F43 REAR BLOWER ACC 30
F44 HRW RELAY COIL, HRS COIL, AT ACC 5

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
