Cabin compartment under dash board

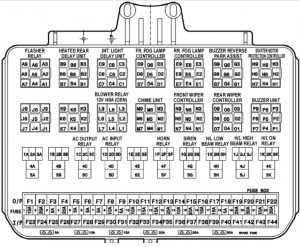

cabin compartment under dash board
| Fuse | Function | Ampere rating [A] |
| 1 | HORN | 15 |
| 2 | FRONT & REAR FOG LAMP | 20 |
| 3 | STARTER PROTECTION CIRCUIT | 5 |
| 4 | STARTER RELAY | 20 |
| 5 | POSITION LAMP RH | 5 |
| 6 | POSITION LAMP LH | 5 |
| 7 | BLOWER + WW + HORN RELAY COIL | 5 |
| 8 | INDICATOR LAMPS | 10 |
| 9 | MUSIC SYSTEM & CHIME KEY IN | 5 |
| 10 | A/C CONTROLS | 10 |
| 11 | HEAD LAMP LOW BEAM RELAY | 15 |
| 12 | HEAD LAMP HIGH BEAM RELAY | 15 |
| 13 | WASH & WIPERS | 25 |
| 14 | INSTRUMENT CLUSTER, FUEL CUT OFF | 10 |
| 15 | REVERSE LAMP, CLOCK & CIG. LIGHTER | 20 |
| 16 | POWER PLUG | 10 |
| 17 | MUSIC SYSTEM, CLOCK | 15 |
| 18 | ROOF, ENGINE & LOAD AREA LAMP | 5 |
| 19 | HEATED REAR WINDOW | 25 |
| 20 | C.D.L. & IMMOBILIZER | 30 |
| 21 | STOP LAMP | 10 |
| 22 | VENTILATION MOTOR | 30 |

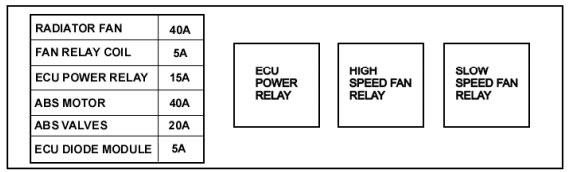

Fuse box – near fire wall CR-4

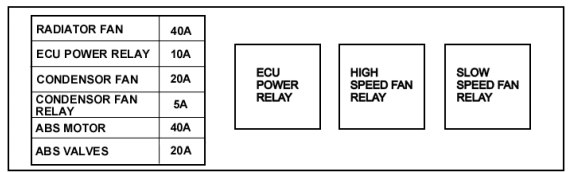

Fuse box – near fire wall – TCIC

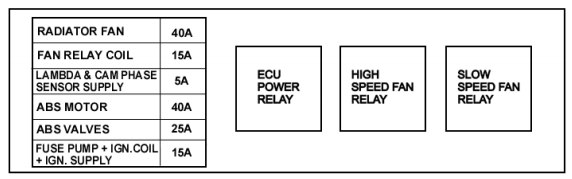

Fuse box – near fire wall – MPFI
Maxi fuse box – near battery
Fuse box – under co-driver seat
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
