Tesla Model S (2014) – fuse box diagram (Europe version)
Year of production: 2014
Fuse box 1

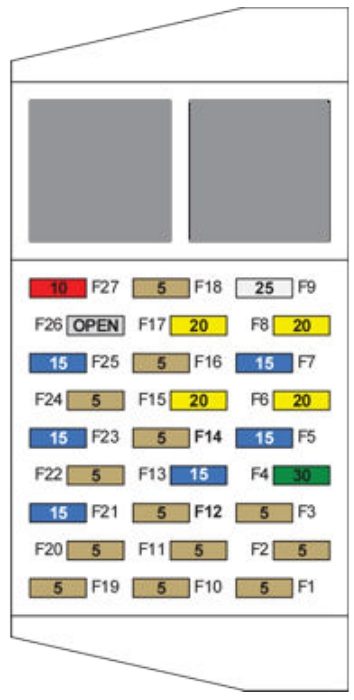

Tesla Model S (2012) – fuse-box 1 (Europe version)
Fuse
Ampere rating
Circuit protected
F1
5
Accessory sensor, radio, USB hub
F2
5
Headlight leveling system (EU/China Coil Suspension vehicles only)
F3
5
Vanity lights, rear view mirror
F4
30
Outboard rear seat heaters (cold weather option)
F5
15
Seat heater (driver’s seat)
F6
20
Base audio amplifier
F7
15
Seat heater (front passenger seat)
F8
20
Premium audio amplifier
F9
25
Sunroof
F10
5
Passive safety restraints
F11
5
Steering wheel switches
F12
5
Sensor for Drive mode and Yaw Rate (Stability/Traction Control)
F13
15
Wiper park
F14
5
Drive inverter
F15
20
Electric parking brake
F16
5
Parking/blind spot sensors
F17
20
Electric parking brake
F18
5
Not used
F19
5
In-vehicle HVAC sensor
F20
5
Cabin air heater logic
F21
15
Battery coolant pump 1
F22
5
Inlet actuators
F23
15
Powertrain coolant pump
F24
5
Cabin climate control
F25
15
Battery coolant pump 2
F26
—
Not used
F27
10
Thermal controller
Fuse box 2

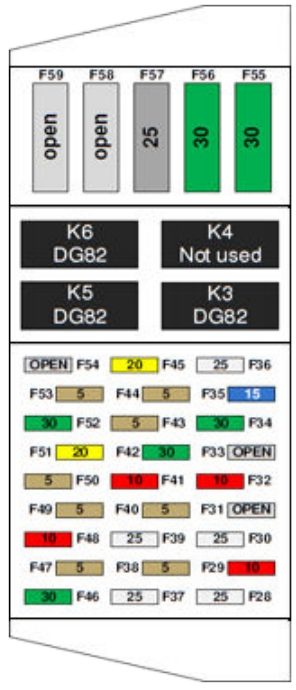

Tesla Model S (2012) – fuse-box 2 (Europe version)
Fuse
Ampere rating [A]
Circuit protected
F28
25
Window lift motor (right rear)
F29
10
Contactor power
F30
25
Window lift motor (right front)
F31
—
Not used
F32
10
Door controls (right side)
F33
—
Not used
F34
30
Rear center seat heaters, washer/wiper de-ice (cold weather option)
F35
15
12V power socket
F36
25
Air suspension
F37
25
Window lift motor (left rear)
F38
5
Driver’s seat memory
F39
25
Window lift motor (left front)
F40
5
Rear door handles
F41
10
Door controls (left side)
F42
30
Powered liftgate
F43
5
Perm. power sensor, brake switch
F44
5
Charger (charge port)
F45
20
Passive entry (horns)
F46
30
Body controls (group 2)
F47
5
Glove box light
F48
10
Body controls (group 1)
F49
5
Instrument panel
F50
5
Siren, intrusion/tilt sensor (Europe only)
F51
20
Touchscreen
F52
30
Heated rear window
F53
5
Battery management system
F54
—
Not used
F55
30
Left front electric seat
F56
30
Right front electric seat
F57
25
Cabin fan
F58
—
Not used
F59
—
Not used
Fuse Box 3

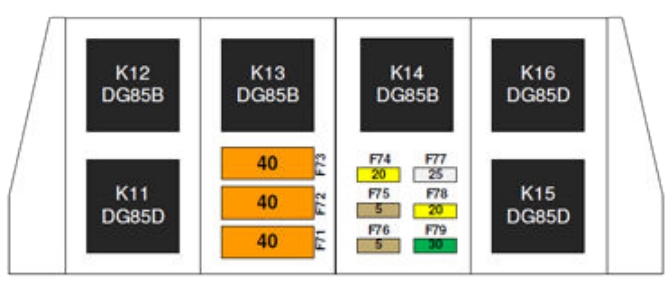

Tesla Model S (2012) – fuse-box 3 (Europe version)
Fuse
Ampere rating [A]
Circuit protected
F71
40
Condenser fan (left)
F72
40
Condenser fan (right)
F73
40
Vacuum pump
F74
20
12V drive rail (cabin)
F75
5
Power steering
F76
5
ABS
F77
25
Stability control
F78
20
Headlights – high/low beam
F79
30
Light – exterior/interior
Fuse Box 4

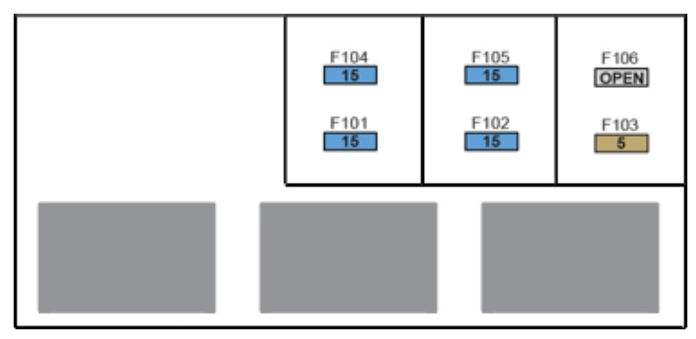

Tesla Model S (2012) – fuse-box 4 (Europe version)
Fuse
Ampere rating [A]
Circuit protected
F101
15
Left rear seat heater
F102
15
Right rear seat heater
F103
5
Middle rear seat heater control
F104
15
Middle rear seat heater
F105
15
Wiper deicer
F106
—
Not used
Fuse Box 4 If Model S is equipped with the cold weather option, an additional fuse box (4) is located under the driver’s side trim panel
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
