Toyota Auris (2006 – 2012) – fuse box diagram
Year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012

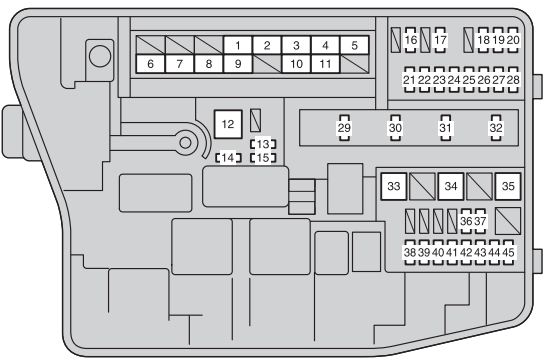

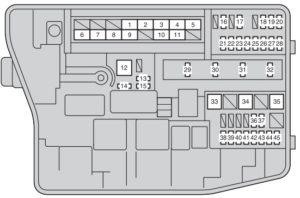

Fuse box in engine compartment
| Fuse | Ampere ratin [A] | Circuit | |
| 1 | H-LP CLN | 30 | Headlight cleaner |
| 2 | RDI FAN | 40 | Electric cooling fan(s) |
| 3 | CDS FAN*7 | 30 | Electric cooling fan(s) |
| 4 | ABS NO. 1 | 50 | Anti-lock brake system, vehicle stability control system |
| 5 | HTR | 50 | Air conditioning system |
| 6 | ALT | 120*1 140*2 | Charging system, RDI FAN, CDS FAN*7, H-LP CLN, ABS NO. 1, ABS NO. 3*1, ABS NO. 2*2, HTR, HTR SUB NO. 1, HTR SUB NO. 2, HTR SUB NO. 3, STV HTR*2, ACC, CIG, ECU-IG NO. 2, HTR-IG, WIPER, RR WIPER, WASHER, ECU-IG NO. 1, SEAT HTR, AM1, DOOR, STOP, FR DOOR, POWER, RR DOOR, RL DOOR, OBD, ACC-B, RR FOG, FR FOG, SUNROOF, DEF, MIR HTR, TAIL, PANEL |
| 7 | EPS | 60 | Electric power steering |
| 8 | GLOW*2 | 80 | Engine glow system |
| 9 | P-SYSTEM*1 | 30 | Multiport fuel injection system/ sequential multiport fuel injection system |
| 10 | P/I | 50 | EFI MAIN, HORN, IG2, EDU |
| 11 | H-LP MAIN | 50 | H-LP LH-LO, H-LP RH LO, H-LP LH-HI, H-LP, RH-HI |
| 12 | AMT*1,6 | 50 | Multi-mode manual transmission |
| BBC*5 | 40 | Stop & Start system | |
| 13 | SPARE | 10 | Spare fuse |
| 14 | SPARE | 30 | Spare fuse |
| 15 | SPARE | 20 | Spare fuse |
| 16 | ECU-B3 | 7,5 | Multiport fuel injection system/ sequential multiport fuel injection system |
| 17 | ECU-B2 | 10 | Multi-mode manual transmission, air conditioning system, smart entry & start system, charging system, power windows |
| 18 | ECU-B | 10 | Main body ECU, power windows, gauge and meters, power door lock system, vehicle stability control system, Stop & Start system, charging system |
| 19 | RAD NO. 1 | 15 | Audio system, “touch screen” |
| 20 | DOME | 10 | Interior lights, luggage compartment light, vanity lights, smart entry & start system, wireless remote control, engine switch light |
| 21 | AM2 NO. 2 | 7,5 | Main body ECU, Stop & Start system |
| 22 | ALT-S | 7,5 | Charging system |
| 23 | TURN-HAZ | 10 | Turn signal lights |
| 24 | ETCS*1 | 10 | Electronic throttle control system |
| 25 | AM2 | 30 | Starting system, smart entry & start system, IG2 NO. 2 |
| 26 | A/F*7 | 20 | Exhaust system |
| 27 | STRG LOCK | 20 | Steering lock system |
| 28 | IGN/INJ*1 | 15 | Multiport fuel injection system/ sequential multiport fuel injection system, starting system |
| 29 | EDU*7 | 20 | Multiport fuel injection system/ sequential multiport fuel injection system |
| 30 | EFI MAIN | 20*1 | Multiport fuel injection system/ sequential multiport fuel injection system, Stop & Start system, EFI NO. 1, EFI NO. 2 |
| 30*2 | |||
| 31 | HORN | 10 | Horn |
| 32 | IG2 | 15 | Multiport fuel injection system/ sequential multiport fuel injection system, starting system, smart entry & start system, IGN, METER |
| 33 | HTR SUB NO. 1 | 30*8 | Air conditioning system |
| 50*9 | |||
| 34 | HTR SUB NO. 2 | 30 | Air conditioning system |
| 35 | HTR SUB NO. 3 | 30 | Air conditioning system |
| 36 | STV HTR*2 | 25 | Anti-lock brake system, vehicle stability control system |
| 37 | WIP-S*6 | 7,5 | Power heater |
| 38 | IG2 NO. 2 | 7,5 | Charging system |
| 39 | EFI NO. 2 | 10 | Starting system, smart entry & start system |
| 40 | EFI NO. 2 | 10 | Multiport fuel injection system/ sequential multiport fuel injection system |
| 41 | EFI NO. 1 | 10 | Multiport fuel injection system/ sequential multiport fuel injection system |
| 42 | H-LP RH HI | 10 | Right-hand headlight (high beam) |
| 43 | H-LP LH HI | 10 | Left-hand headlight (high beam) |
| 44 | H-LP RH LO | 10*3 | Right-hand headlight (low beam) |
| 15*4 | |||
| 44 | H-LP LH LO | 10*3 | Left-hand headlight (low beam) |
| 15*4 | |||
*1 – Vehicles with a gasoline engine
*2 – Vehicles with a diesel engine
*3 – Vehicles without discharge headlights (low beam)
*4 – Vehicles with discharge headlights (low beam)
*5 – Vehicles with 1NR-FE engine (with a Stop & Start system)
*6 – Vehicles with 1ND-TV engine
*7 – Vehicles with 1AD-FTV or 2AD-FHV engine
*8 – Vehicles without PTC 600W heater
*9 – Vehicles with PTC 600W heater

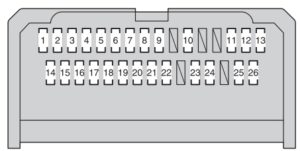

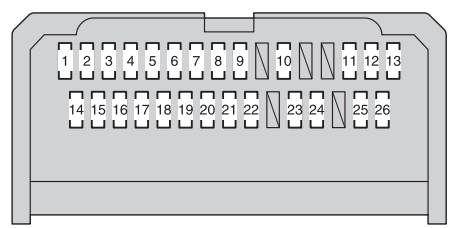

Fuse box in passeneger compartment (type A)
| Fuse | Ampere rating [A] | Circuit | |
| 1 | TAIL | 10 | Front position lights, tail lights, license plate lights, rear fog light, front fog lights, manual headlight leveling dial, multiport fuel injection system/sequential multiport fuel injection system, instrument cluster lights |
| 2 | PANEL | 7,5 | Switch illumination, instrument cluster lights, glove box light, steering switches, main body ECU |
| 3 | ECU-IG NO. 1*1 | 10 | Automatic headlight leveling system, main body ECU, electric power steering, electric cooling fan(s), shift lock control system, rain sensor, anti-lock brake system, vehicle stability control system, audio system, “touch screen”, multiport fuel injection system/sequential multiport fuel injection system, headlight cleaner, smart entry & start system, Stop & Start system |
| 4 | FR DOOR | 20 | Power windows |
| 5 | RL DOOR | 20 | Power windows |
| 6 | RR DOOR | 20 | Power windows |
| 7 | SUNROOF | 20 | Electric moon roof |
| 8 | CIG | 15 | Cigarette lighter, power outlet |
| 9 | ACC | 7,5 | Outside rear view mirrors, audio system, “touch screen”, shift lock control system, main body ECU, smart entry & start system, Stop & Start system |
| 10 | MIR HTR | 10 | Outside rear view mirror defoggers, multiport fuel injection system/ sequential multiport fuel injection system |
| 11 | RR FOG | 7,5 | Rear fog light |
| 12 | ING | 7,5 | Steering lock system, SRS airbag system, multi-mode manual transmission, multiport fuel injection system/sequential multiport fuel injection system, smart entry & start system, Stop & Start system |
| 13 | METER | 7,5 | Gauge and meters, Stop & Start system |
| 14 | SEAT HTR | 15 | Seat heaters |
| 15 | HTR-IG | 10 | Air conditioning system, rear window defogger, power heater |
| 16 | WIPER | 25 | Windshield wipers, rain sensor |
| 17 | RR WIPER | 15 | Rear window wiper |
| 18 | WASHER | 15 | Windshield washer |
| 19 | ECU-IG NO. 1*2 | 10 | Automatic headlight leveling system, main body ECU, electric power steering, electric cooling fan(s), shift lock control system, rain sensor, anti-lock brake system, vehicle stability control system, audio system, “touch screen”, multiport fuel injection system/sequential multiport fuel injection system, headlight cleaner, smart entry & start system |
| 20 | ECU-IG NO. 2 | 10 | Back-up lights, charging system, auto anti-glare inside rear view mirror, rear view monitor system, electric moon roof, rear window defogger, air conditioning system, turn signal lights, emergency flashers, front passenger’s seat belt reminder light, Stop & Start system, Toyota parking assist-sensor |
| 21 | OBD | 7,5 | On-board diagnosis system |
| 22 | STOP | 10 | Stop lights, high mounted stoplight, anti-lock brake system, vehicle stability control system, main body ECU, multiport fuel injection system/sequential multiport fuel injection system, multi-mode manual transmission |
| 23 | DOOR | 25 | Power door lock system |
| 24 | ACC-B | 25 | CIG, ACC |
| 26 | FR FOG | 15 | Front fog lights |
| 27 | AM1 | 7,5 | Starting system, multiport fuel injection system/sequential multiport fuel injection system, ACC, CIG |
*1 – Vehicles with a Stop & Start system
*2 – Vehicles without a Stop & Start system
*3 – Vehicles without a smart entry & start system

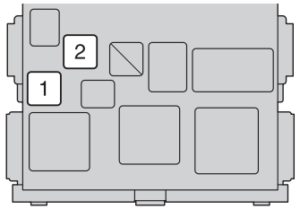

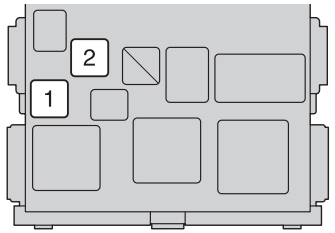

Fuse box in passeneger compartment (under instrument panel) type B
| Fuse | Ampere rating [A] | Circuit | |
| 1 | POWER | 30 | Power windows |
| 2 | DEF | 30 | Rear window defogger, MIR HTR |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
