Year of production: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

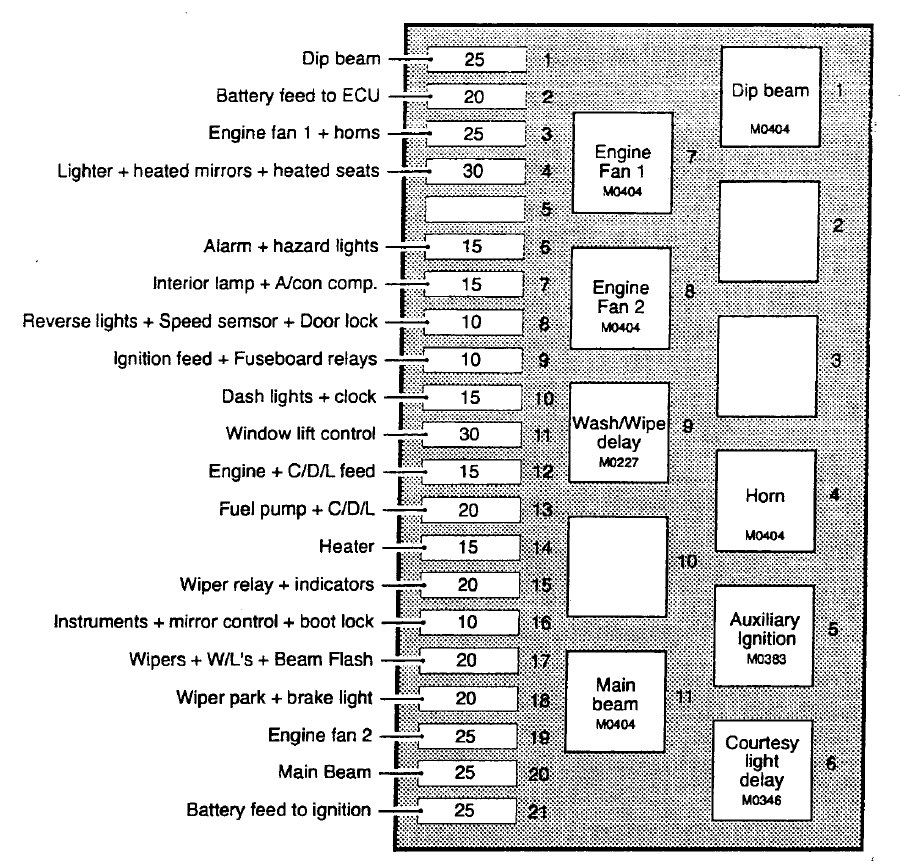

Fuses and relay panel
The fuse and relay panel is located on the passenger side bulkhead beneath the dashboard.
| Fuse | Consumer | Ampere rating [A] |
| 1 | Dip beam | 25 |
| 2 | Battery feed to ECU | 20 |
| 3 | Engine fan 1 + horns | 25 |
| 4 | Lighter + heated mirrors + heated seats | 30 |
| 5 | — | — |
| 6 | Alarm + hazard lights | 15 |
| 7 | Interior lamo + A/con comp. | 15 |
| 8 | Reverse lights + Speed sensor + Door lock | 10 |
| 9 | Ignition feed + Fuseboard relays | 10 |
| 10 | Dash lights + clock | 15 |
| 11 | Windows lift control | 30 |
| 12 | Engine + C/D/L feed | 15 |
| 13 | Fuel pump + C/D/L | 20 |
| 14 | Heater | 15 |
| 15 | Wiper relay +indicators | 20 |
| 16 | Instruments + mirrors control + boot lock | 10 |
| 17 | Wipers + W/L’s + Beam Flash | 20 |
| 18 | Wiper park + brake light | 20 |
| 19 | Engine fan 2 | 25 |
| 20 | Main Beam | 25 |
| 21 | Battery feed to ignition | 25 |
| Relay | ||
| 1 | Dip beam | |
| 2 | — | |
| 3 | — | |
| 4 | Horn | |
| 5 | Auxiliary ignition | |
| 6 | Courtesy light delay | |
| 7 | Engine fan | |
| 8 | Engine fan 2 | |
| 9 | Wash/wiper delay | |
| 10 | — | |
| 11 | Main beam | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
