Volkswagen Jetta (2006) – fuse box diagram
Year of production: 200
Instrument panel

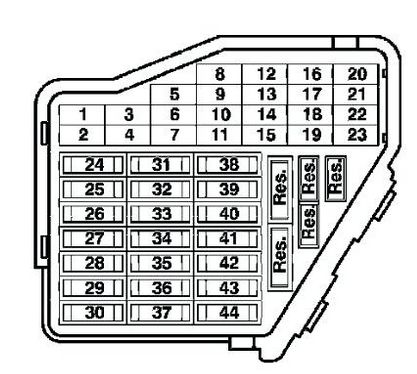

Fuse arrangements in fuse panel behind instrument cluster, left.
| Fuse name | Description | Ampergw |
| 1 | Heated washer nozzles, glove compartment light | 10 |
| 2 | Turn signal system | 10 |
| 3 | Fog light relay | 5 |
| 4 | License plate light | 5 |
| 5 | Comfort system, cruise control, Climatronic, A/C, heated seat control modules, day/night dimming mirror, control module and control unit for multi-function steering wheel | 7,5 |
| 6 | Central locking system | 5 |
| 7 | Back-up lights, speedometer vehicle speed sensor | 10 |
| 8 | Open | — |
| 9 | Anti-lock brakes (ABS) | 5 |
| 10 | ECM, gasoline engine | 10 |
| 10 | ECM, diesiel engine (m.y. 2000>) | 5 |
| 11 | Instrument cluster, shift lock solenoid | 5 |
| 12 | B+ (battery positive voltage) for Data Link Connector | 7,5 |
| 13 | Brake lights | 10 |
| 14 | Interior lights, central locking system | 10 |
| 15 | Instrument cluster, automatic transmission control module (TCM) | 5 |
| 16 | A/C clutch, after-run coolant pump | 10 |
| 17 | Open | — |
| 18 | High beam, right | 10 |
| 19 | High beam, left | 10 |
| 20 | Low beam left | 15 |
| 21 | Low beam right | 15 |
| 22 | Parking and side marker lights, rights | 5 |
| 23 | Parking and side marker lights, left | 5 |
| 24 | Front wiper motor, washer pump | 20 |
| 25 | Fresh air blower, Climatronic, A/C | 25 |
| 26 | Rear window defogger | 25 |
| 27 | Rear wiper motor | 15 |
| 28 | Fuel pump, gasoline | 15 |
| 29 | Engine control module (ECM), gasoline | 15 |
| 29 | Engine control module (ECM), diesel | 10 |
| 30 | Sunroof control module | 20 |
| 31 | Automatic transmission control module | 20 |
| 32 | Fuel Injectors (gasoline) | 10 |
| 32 | ECM (diesel) | 15 |
| 33 | Headlight washer system | 20 |
| 34 | Engine control elements | 10 |
| 35 | 12V power outlet (in luggage compartment) | 30 |
| 36 | Fog lights | 15 |
| 37 | Radio terminal 865, intrument cluster | 10 |
| 38 | Central locking system (with power windows) luggage compartment light, remote fuel tank door, rear lid unlock | 15 |
| 39 | Emergency flasher | 15 |
| 40 | Dual tone horn | 20 |
| 41 | Cigarette lighter | 15 |
| 42 | Radio system | 25 |
| 43 | Engine control elements | 10 |
| 44 | Heated seats | 15 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
