Volvo 244 (1989) – wiring diagrams – cooling fans

26 May 2017 admin 244, Volvo 0

Volvo 244 (1989) – wiring diagrams – cooling fans

Year of productions:  1989

Cooling fans

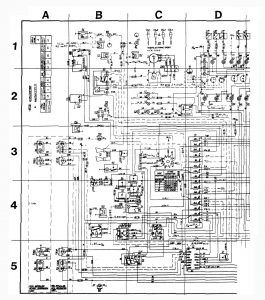

Volvo 244 – wiring diagram – cooling fans (part 1)

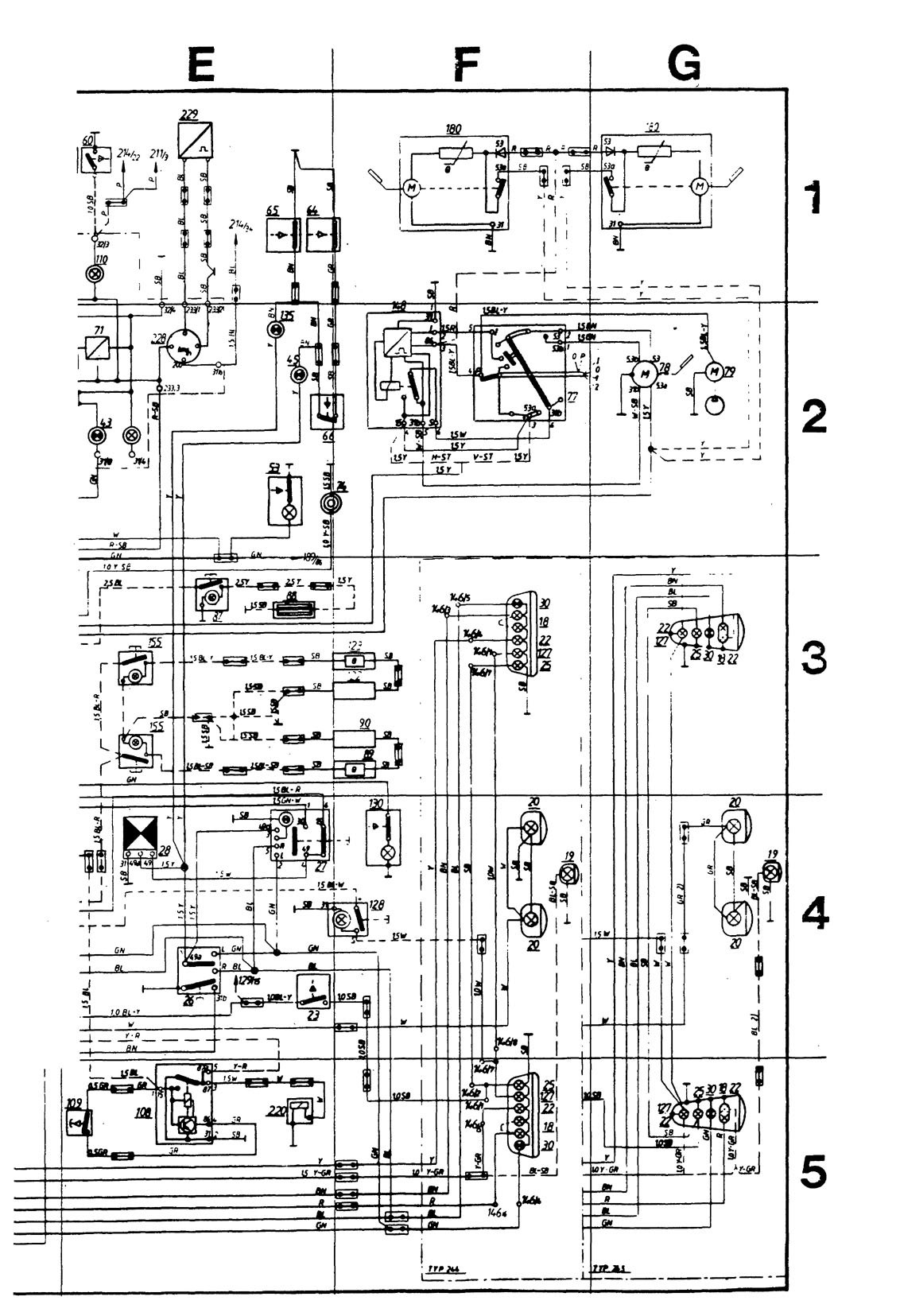

Volvo 244 – wiring diagram – cooling fans (part 2)

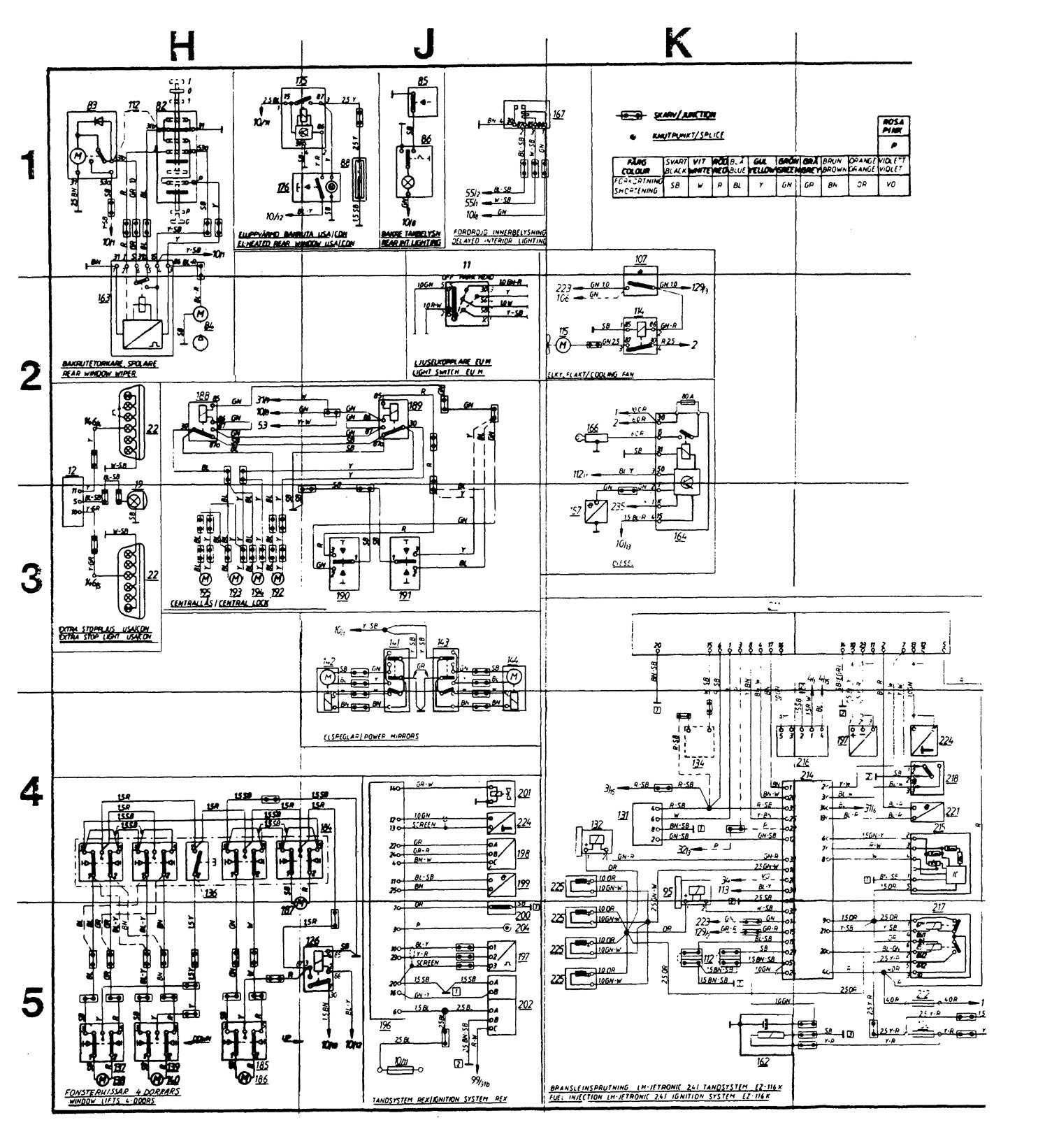

Volvo 244 – wiring diagram – cooling fans (part 3)

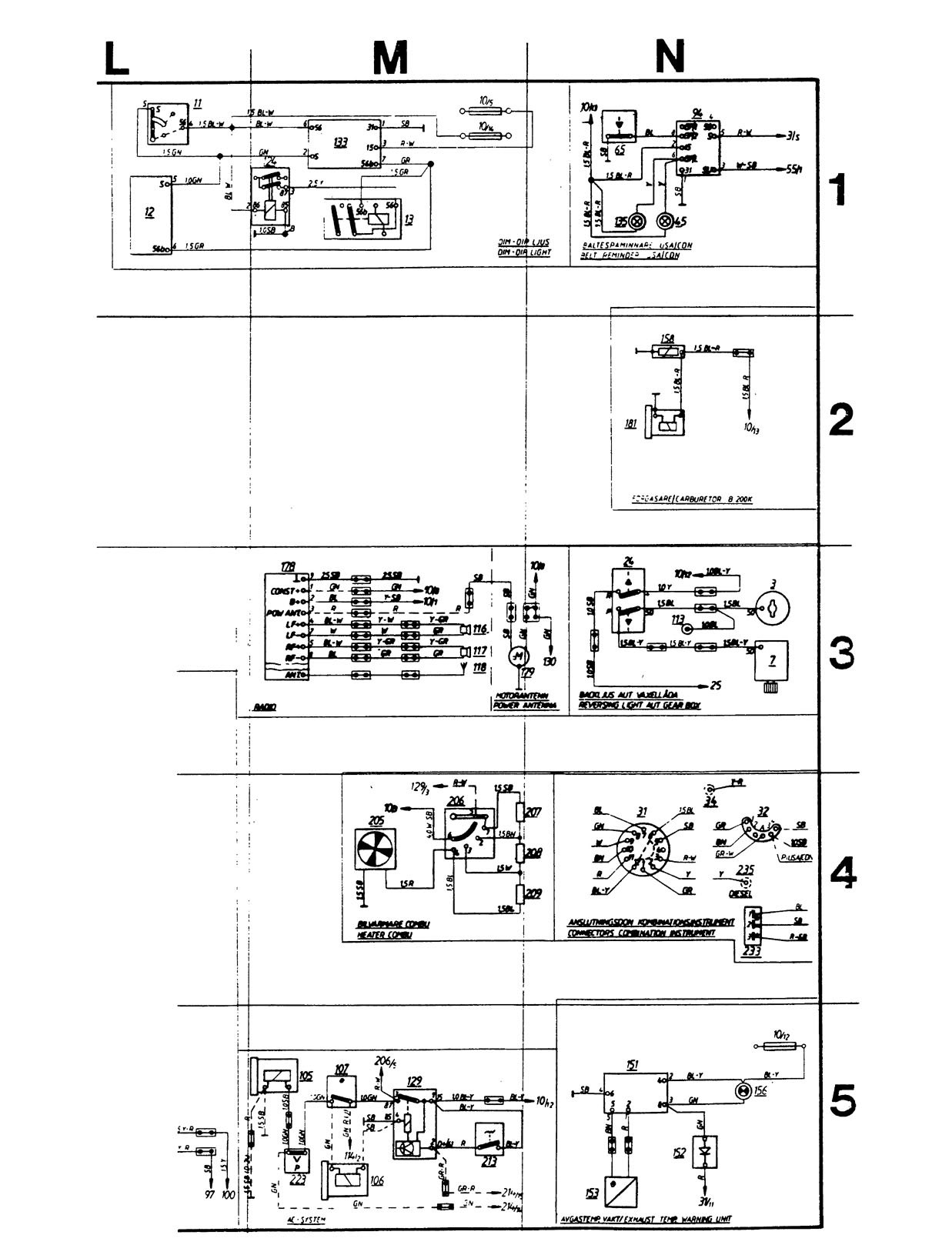

Volvo 244 – wiring diagram – cooling fans (part 4)
Description Location Position
AC delay relay E4, M4 129
AC compressor solenoid 3.9A M5 105
AC cut-out  relay (B21 FTL ) K1 231
AC microswitch M4 213
AC receiver/driver L4 223
AC switch (thermostat type) L4 107
Adjustment knob, panel light intensity c2 50
Antenna (A-post) M3 118
Air mass meter L5 215
Alternator B2 8
Ashtray Light 1.2W C2 48
Auxiliary air valve C1 102
Back-up light switch, automatic transmission N3 24
Beck-up light switch, manual gearbox F4 23
Beck·up light 32 cp/21 W F3, F5, G3, G5 25
Battery B1 1
Battery charging indicator lamp D2 40
Brake failure warning lamp E1 38
Brake failure warning switch E1 38
Brake light F3, F5, G3, G5, H2, H3 22
Brake light switch D5, H4 21
Bridge connector L5, B2, H1 112
Bulb failure warning sensor D5 12
Bulb failure warning sensor lamp D2 41
Capacitor 2.2 µF B2 120
Central lock link rod switch J3 191
Central lock motor armrest 242 K3 197
Central lock motor locking E2, J2 189
Central lock motor passenger side H3 192
Central lock motor rear left H3 193
Central lock motor rear right H3 194
Central lock motor tailgate H3 195
Central lock motor unlocking H2 188
Choke/check engine lamp E1 110
Choke switch D1 60
Cigar lighter 7A F2 74
CIS air control valve K4 132
Clock D1 91
Connector 8-pole F3, F5, H2, H3 146
Control pressure reguletor B1 101
Control unit B230F LH Jetrono1 2.4 K4 214
Control unit, diesel K3 164
Control unit, EZ 116K ignition sysem K3 211
Coolant temperature sender K3 157
Courtesy light 10W B4 54
Day running light 32cp/21 W A3, A5, F3, F5 17
Delayed courtesy light relay C4, J1 167
Diagnostic output K4 131
Dim·Dip regulator N5 133
Diode D1, D2, E1 92
Diode box N5 152
Direction indicator lamp E2 43
Direction indicator switch E4 26
Direction indicator front A3, A5 29
Direction indicator rear F3, F5, G3, G5 30
Distribution C1, K3 5
Door switch. driver side C4 55
Door switch. passenger side B3, B4, C3 56
EGR converter K4 134
Electric cooling fan motor K2 115
Electric cooling fan relay K2 114
Engine compartment light 15W B3 46
Fasten seat belt reminder light C3, N1 94
Flasher device E4 28
Fuel gauge D2 69
Fuel lever sender D1 57
Fuel pump relay B1 99
Fuel pump 6.5 A B1 100
Fuel shut-off J5 201
Fuel valve, diesel B2 154
Fuse H4 204
Fuse box C2 2
Fuse box D3, K5, L2 10
Fuse 25 A L5 212
Gear selector panel light C2 49
Glove compartment light 2W E2 53
Glow plug K2 166
Hazard warning lights switch E4 27
Headlight wiper 1A F1, G1 180
Heated rear window delay relay  J1 175
Heated rear window switch E3 87
Heated rear window 150W F3, J1 88
Heated rear switch E3 87
Heated fan CU M4 206
Heated fan switch B3 76
Heated fan switch CU M4 206
Heated pad, passenger seat backrest F3 122
Heated pad, passenger seat F3 123
Heated pad + thermostat, driver seat 30W F3 89
Heated pad, driver backrest 30W F3 90
High beam bulb max 75W A3, A5 14
High beam indicator lamp D2 42
 High·level brake lights F2, H2 19
Horn switch B3 73
Horn 7,5A B3 72
Hot start valve B1 145
Hot start valve relay B4 147
Idle speed switch J5 200
Ignition coil 12A C2 4
Ignition switch C3, N3 200
Impulse sender J4 197
Impulse wheel, rear axle E1 229
Indicator lamp (Lambda-sond), glow plug (diesel) B4, N2 181
Indicator lamp, Lambda-sond/glow plugs  183
Indicator lamp, parking lights D1 234
Indicator lamp, temperature sensor N5 156
Indicator light, parking lights D1 234
Injector K4 225
Instrument and panel lighting C2 52
Instrument connection N4 31
Instrument connection N3 32
Instrument connection E2, N4 235
Instrument connection E1, N4 233
Instrument connection, AW 71 D2 34
Instrument connection 2W D1 51
Knock sensor L4, J4 224
Lambda sond switch E1 63
Lambda sond (B 230 F) K5 162
License number plate light 4 cp/5W F4, G4 20
Light switch B4, J1 11
Loudspeaker 4 ohms, front left door M3 116
Loudspeaker 4 ohms, front right door M3 117
Low beam bulb max 55 W A3, A5 15
Main headlight relay C4 124
Main relay B230 F K5 217
Microswitch (idling and full load) L4 218
Motor, electric cooling fan K2 115
Oil pressure indicator lamp D1 35
Oil pressure sender D1 59
Overdrive indicator lamp E2 44
Overdrive  relay E5, H3, L3 108
Overdrive solenoid AW 71/Shift indicator D2 111
Overdrive switch (M 46) E5, H3 109
Overdrive  (AW 71) solenoid E5 220
Parking brake indicator lamp D1 37
Parking brake switch D1 61
Parking light 4 cp/5 W A2, A3, A5 16
Power antenna 3A M3 179
Power door mirror switch, right J3 143
Power door mirror left J3 141
Power door mirror left J3 142
Power door mirror, right K3 144
Power stage EZ 116 K L4 216
Power liege coil J5 202
Power window motor 5A. driver side H5 187
Power window motor 5A, passenger side H5, J5 186
Power window motor, rear left 5A H5 138
Power window motor rear right 5A H5 140
Power window relay J5 126
Power window switch (main), rear H4 136
Power window switch, driver side J4, K4 184
Power window switch, passenger side H5, J5 185
Power window switch, rear left H5 137
Power window switch, rear right H5 139
Pressure tranducer J4 198
Radio D2, L2 178
Rear courtesy light 10 W J1 86
Rear door switch J1 85
Rear fog light switch F4 128
Rear fog light 32 cp/21W F3, F5, G3, G5 127
Rear seat belt light 2W E2, N1 135
Relay, electric cooling fan K2 114
Relay, temperature sensor N5 151
Resistor 0.2 ohm M4 209
Resistor 0.7 ohm M4 208
Resistor 1.9 ohm M4 207
Rex ignition system control unit J5 196
Seat belt buckle light C2 47
Seat belt reminder light E2, N1 45
Seat belt switch driver E1 65
Seat belt switch passenger E1 64
Seat belt switch passenger E2 66
Service socker J5 204
Service socket for cranking starter motor B2, N3 113
Side marker light 2 – 4 W B3, B5 150
Solenoid K2, M2 106
Solenoid valve, carb (fuel valve, diesel) B4, N2 181
Solex carburettor PTC resistor B4 158
Spark plug suppressor C1 121
Spark plug C1 6
Speedometer E2 228
Standard heater unit 115 W B4 75
Start injector B1 96
Starter motor B1, B4, N3 7
Step relay, high/low beams and flash C5 13
Switch, delay relay J1 176
Tachometer D2 68
Tail light 4 cp/5W G3, G5 18
Tailgate washer 1A H1 83
Tailgate washer 3.4 A H2 84
Tailgate wash/wipe switch H1 82
Tailgate wipe relay H2 163
Tank pump 1.6 A C1 97
Temperature gauge E2 70
Temperature sender D1 58
Temperature sender B230 F L4 221
Temperature sensor J4 199
Temperature sensor N5 153
Temperature sensor, indicator lamp N5 156
Temperature sensor relay N5 151
Thermal time switch, start injector B1 96
Trunk light F3 130
TZ-28 H ignition system control unit C1 210
Voltage regulator 10+-0.2V E2 71
Windscreen wash 2.6 A G2 79
Windscreen wash/wip switch F2 77
Windscreen wiper 3.5 A G2 78
Windscreen wiper relay F1 148

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
