Volvo 760 (1990) – wiring diagrams – headlamps

Volvo 760 (1990) – wiring diagrams – headlamps

Year of productions:  1990

Headlamps

Version 1

Volvo 760 – wiring diagram – headlamps

Version 2

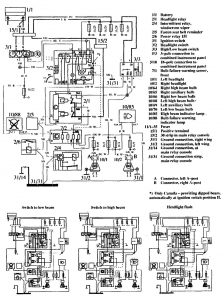

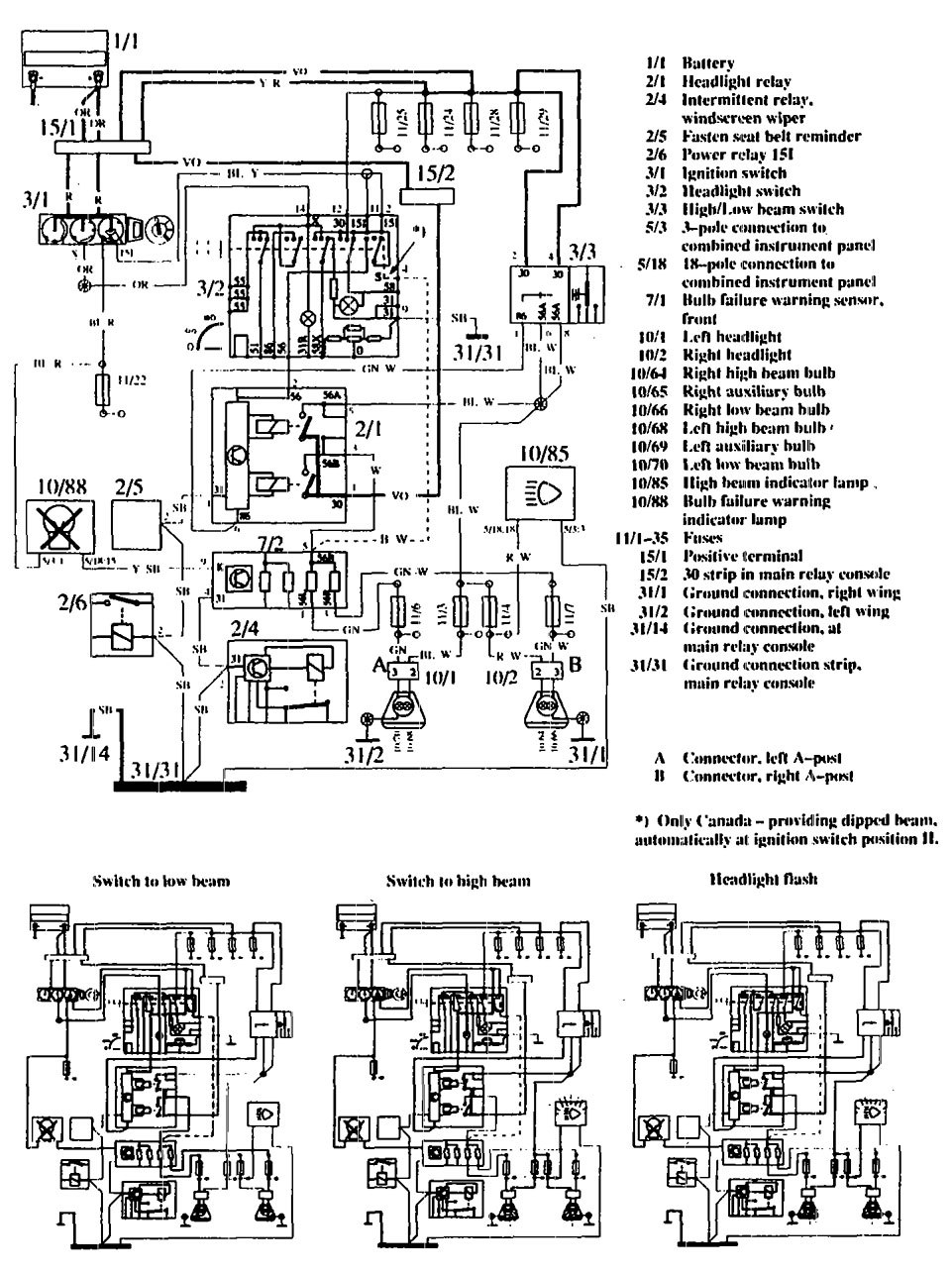

Volvo 760 – wiring diagram – headlamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
