Volvo 850 (1993) – wiring diagrams – heater

Volvo 850 (1993) – wiring diagrams – heater

Year of productions:  1993

Heater

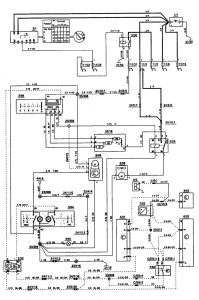

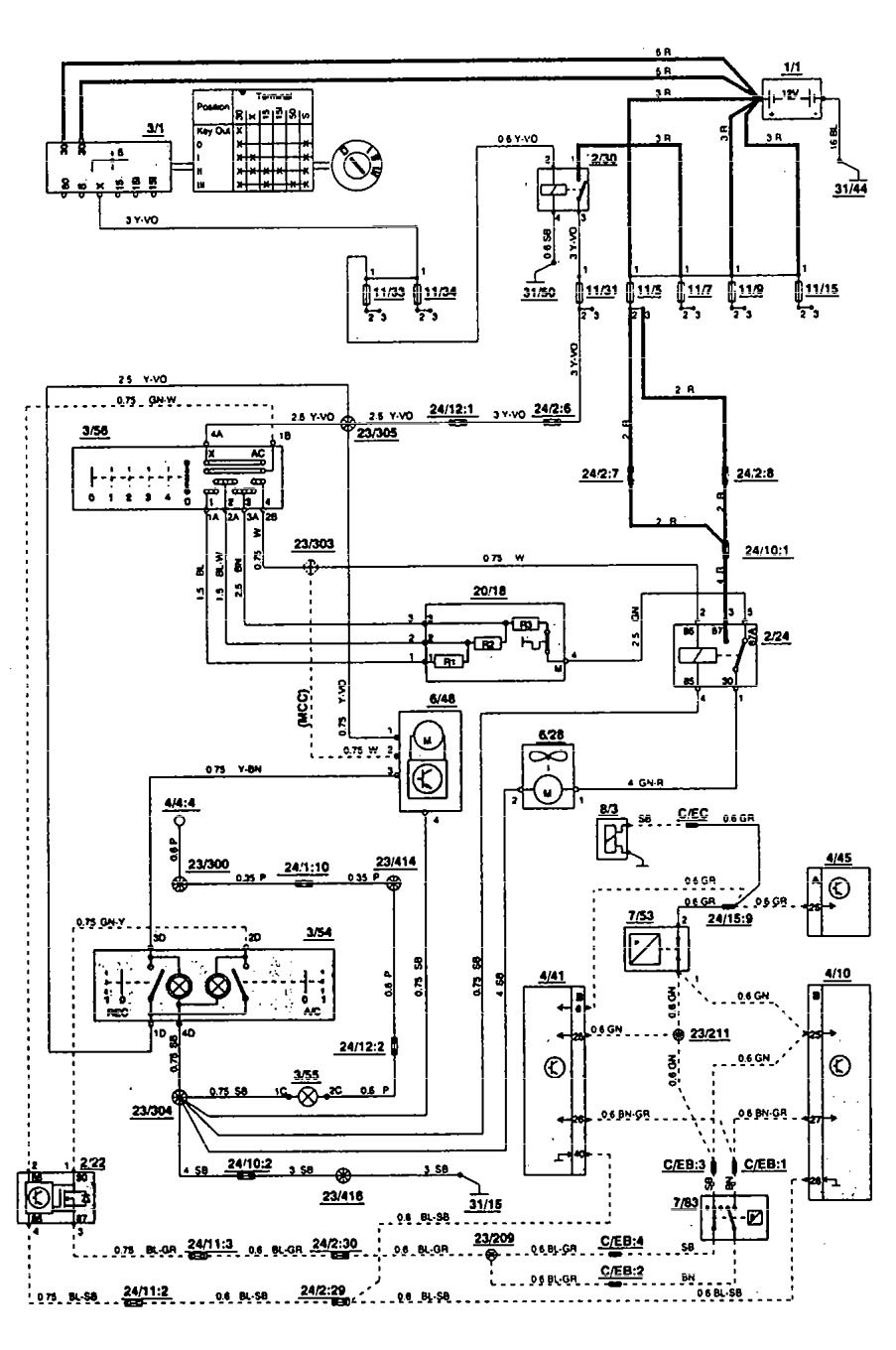

Volvo 850 - wiring diagram - heater (part 1)
Volvo 850 – wiring diagram – heater (part 1)

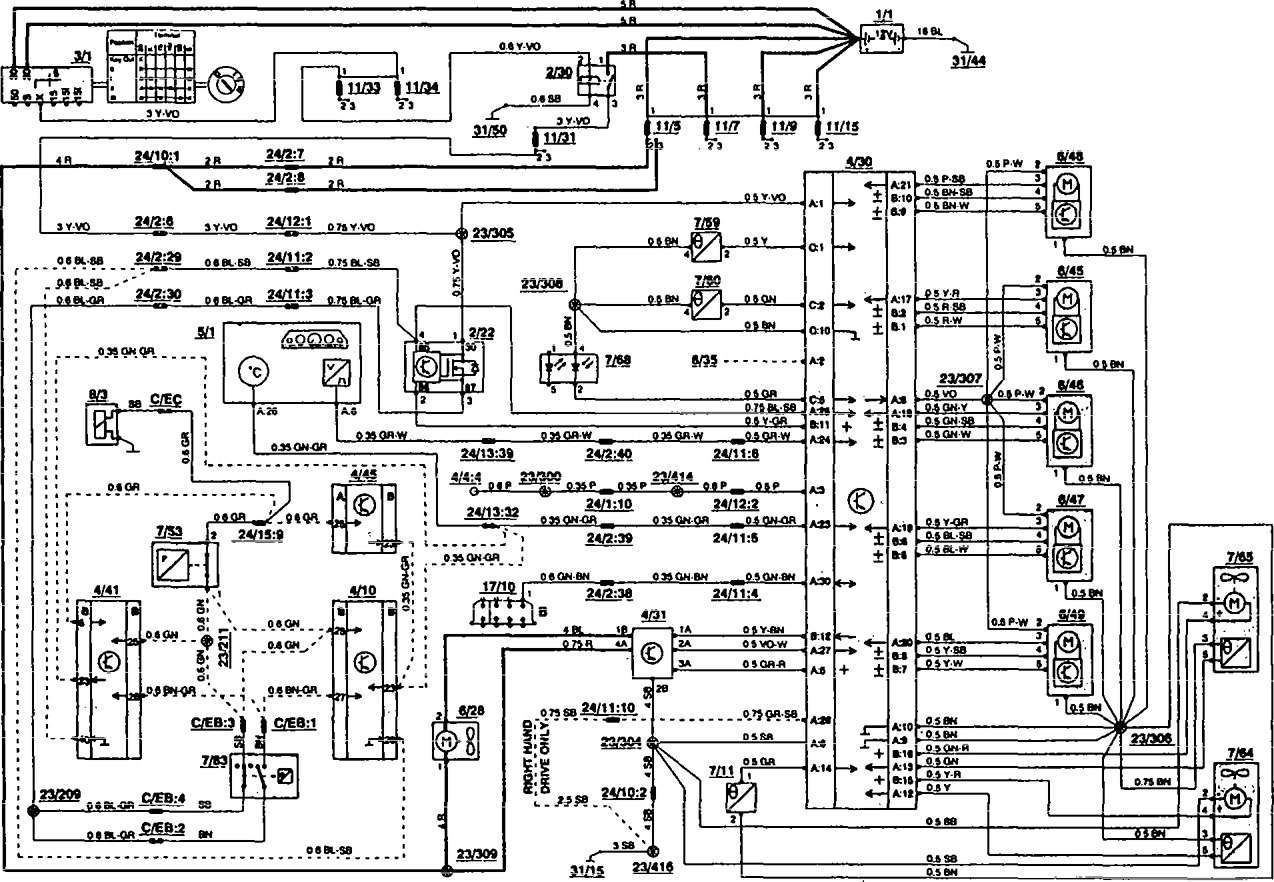

Volvo 850 - wiring diagram - heater (part 2)
Volvo 850 – wiring diagram – heater (part 2)

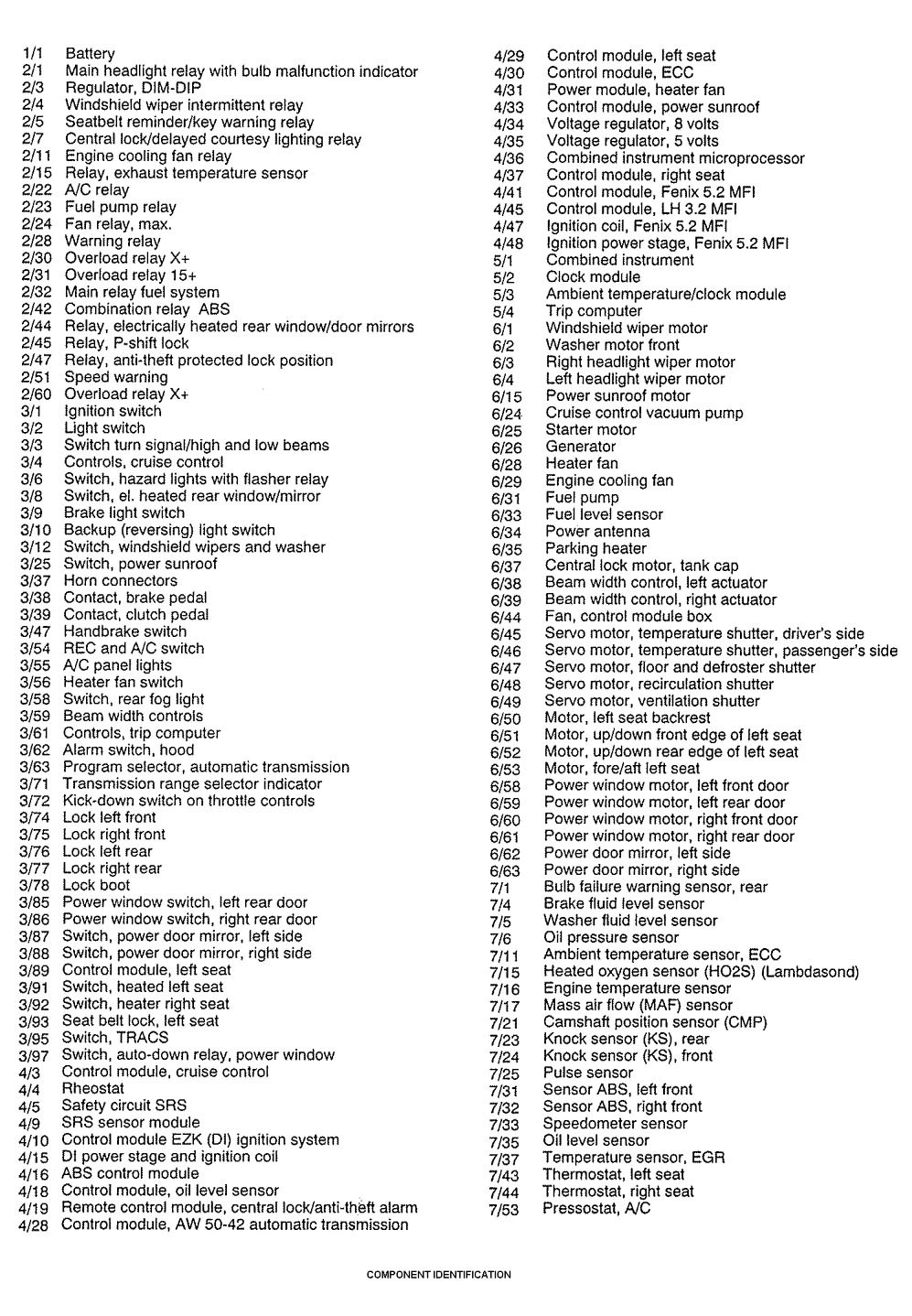

Volvo 850 - wiring diagram - heater (part 3)
Volvo 850 – wiring diagram – heater (part 3)

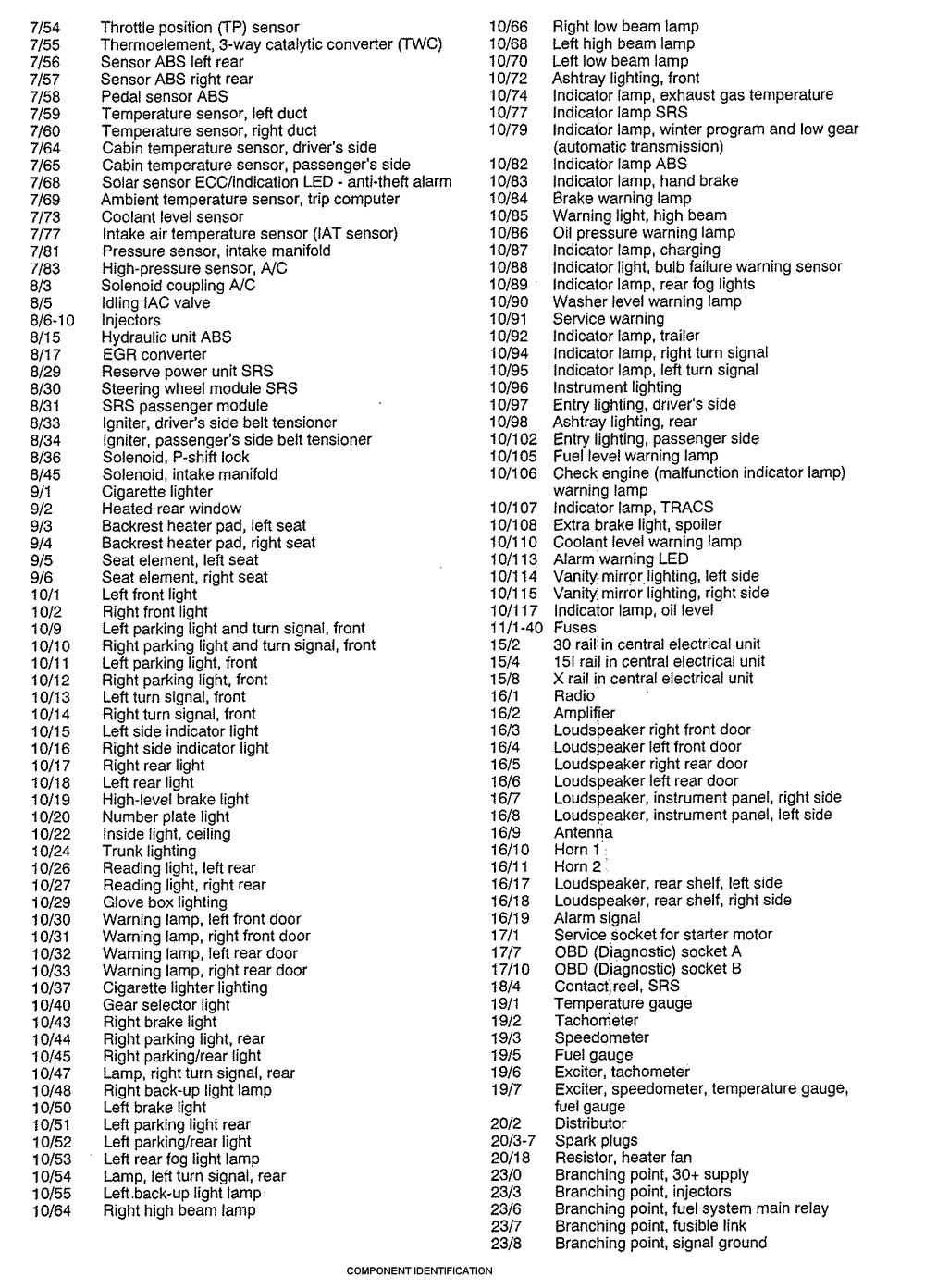

Volvo 850 - wiring diagram - heater (part 4)
Volvo 850 – wiring diagram – heater (part 4)

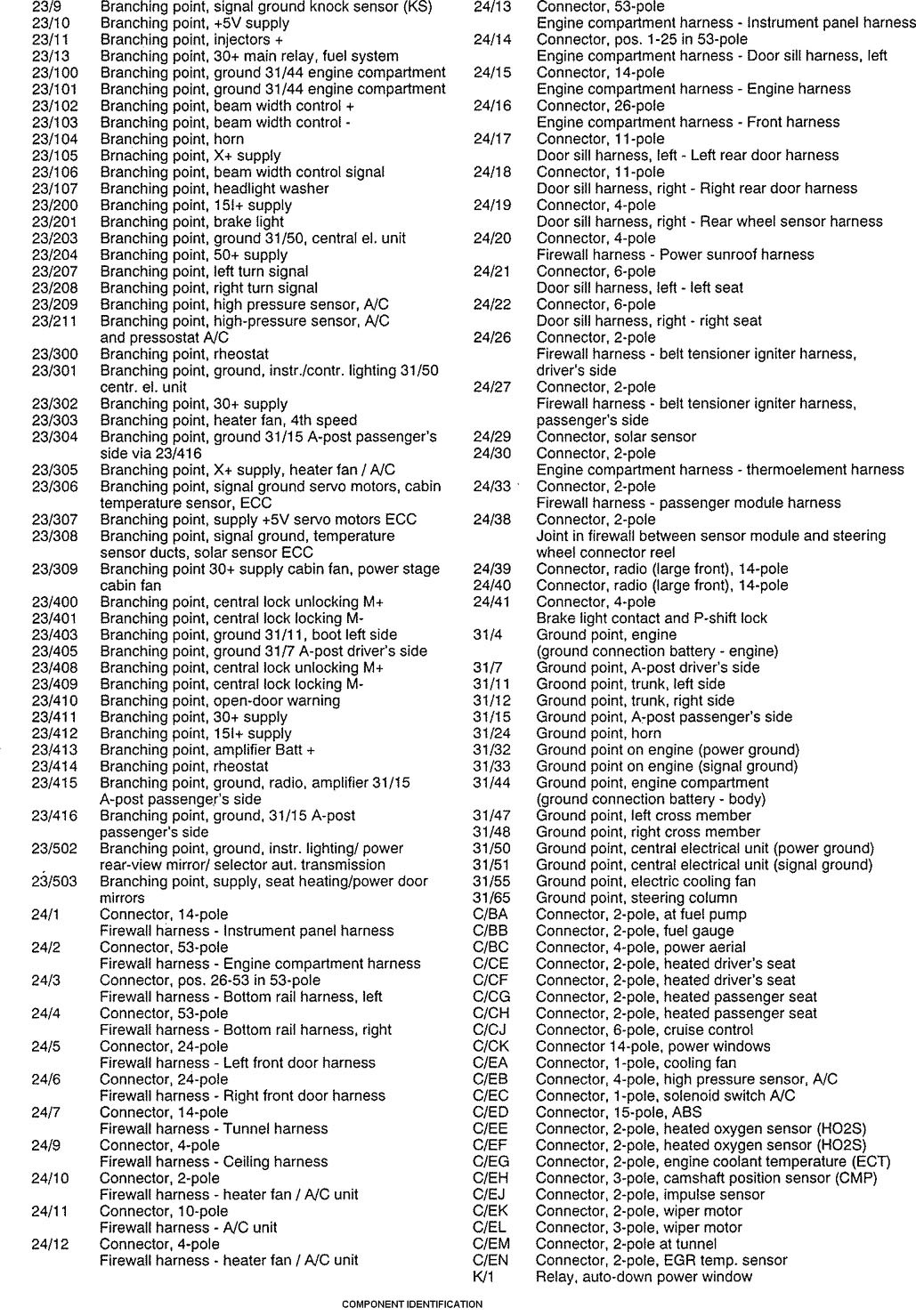

Volvo 850 - wiring diagram - heater (part 5)
Volvo 850 – wiring diagram – heater (part 5)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
