Volvo 850 (1994) – wiring diagrams – power seats

Year of productions:  1994

Power seats

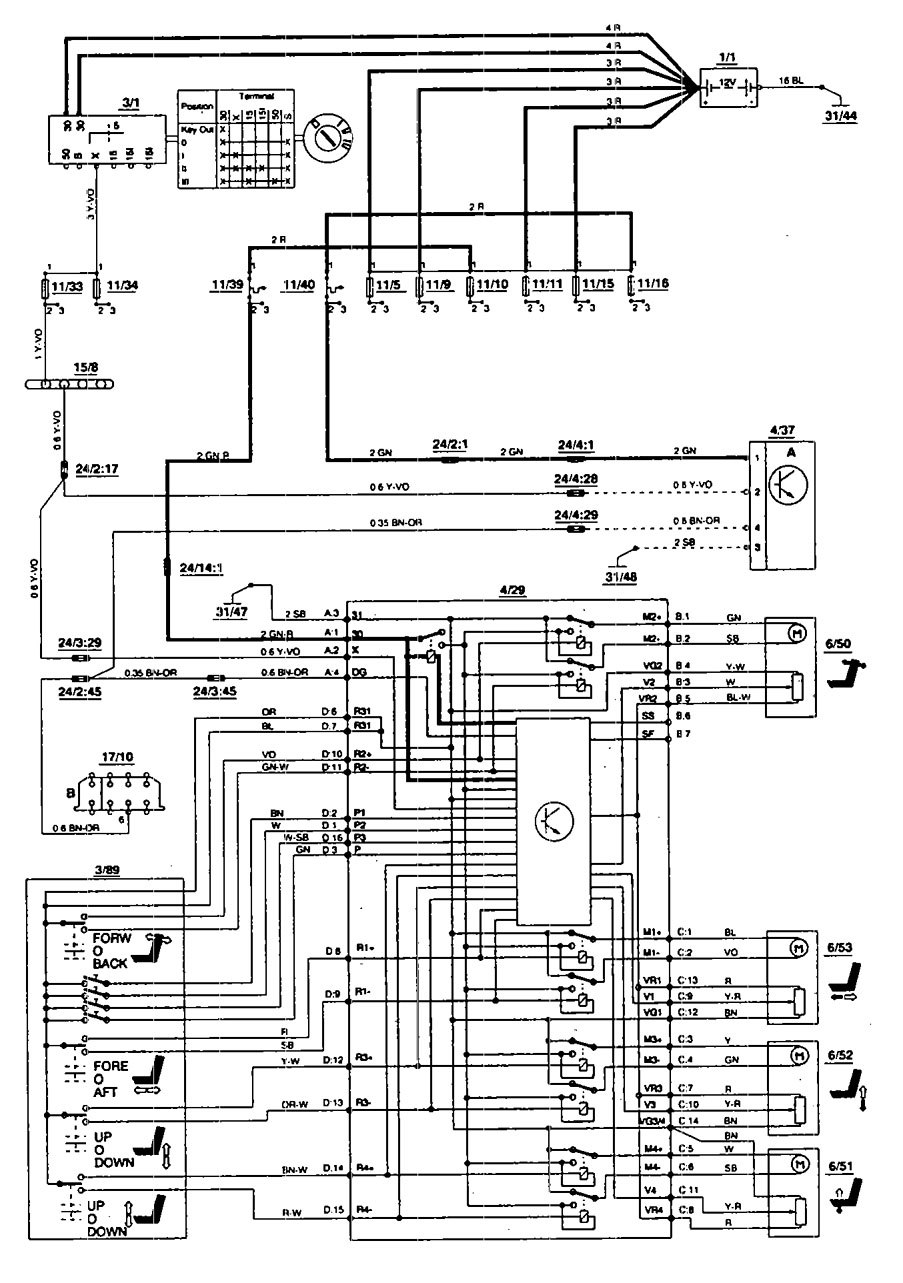

Volvo 850 - wiring diagram - power seats
Volvo 850 – wiring diagram – power seats

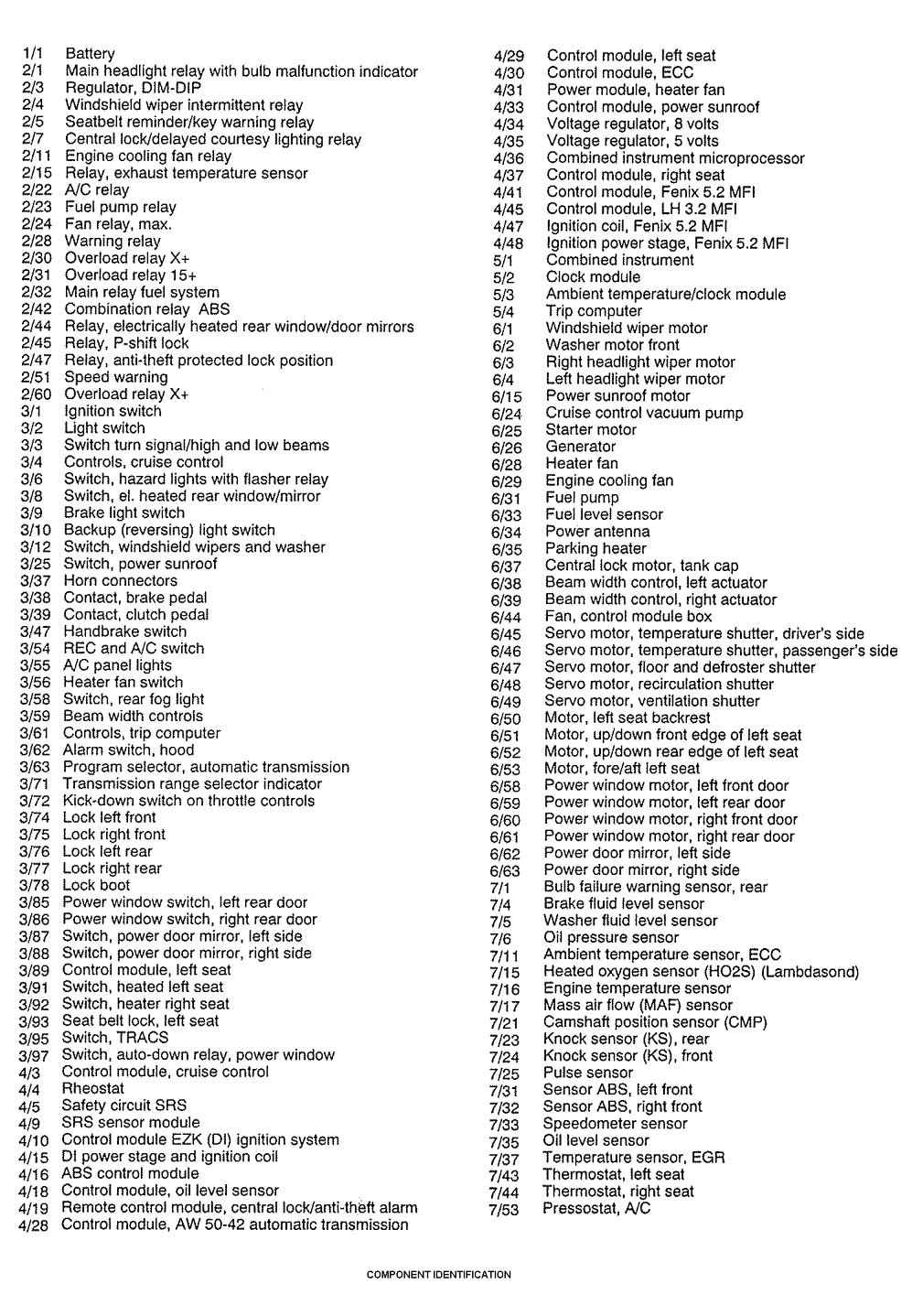

Volvo 850 - wiring diagram - component (part 1)
Volvo 850 – wiring diagram – component (part 1)

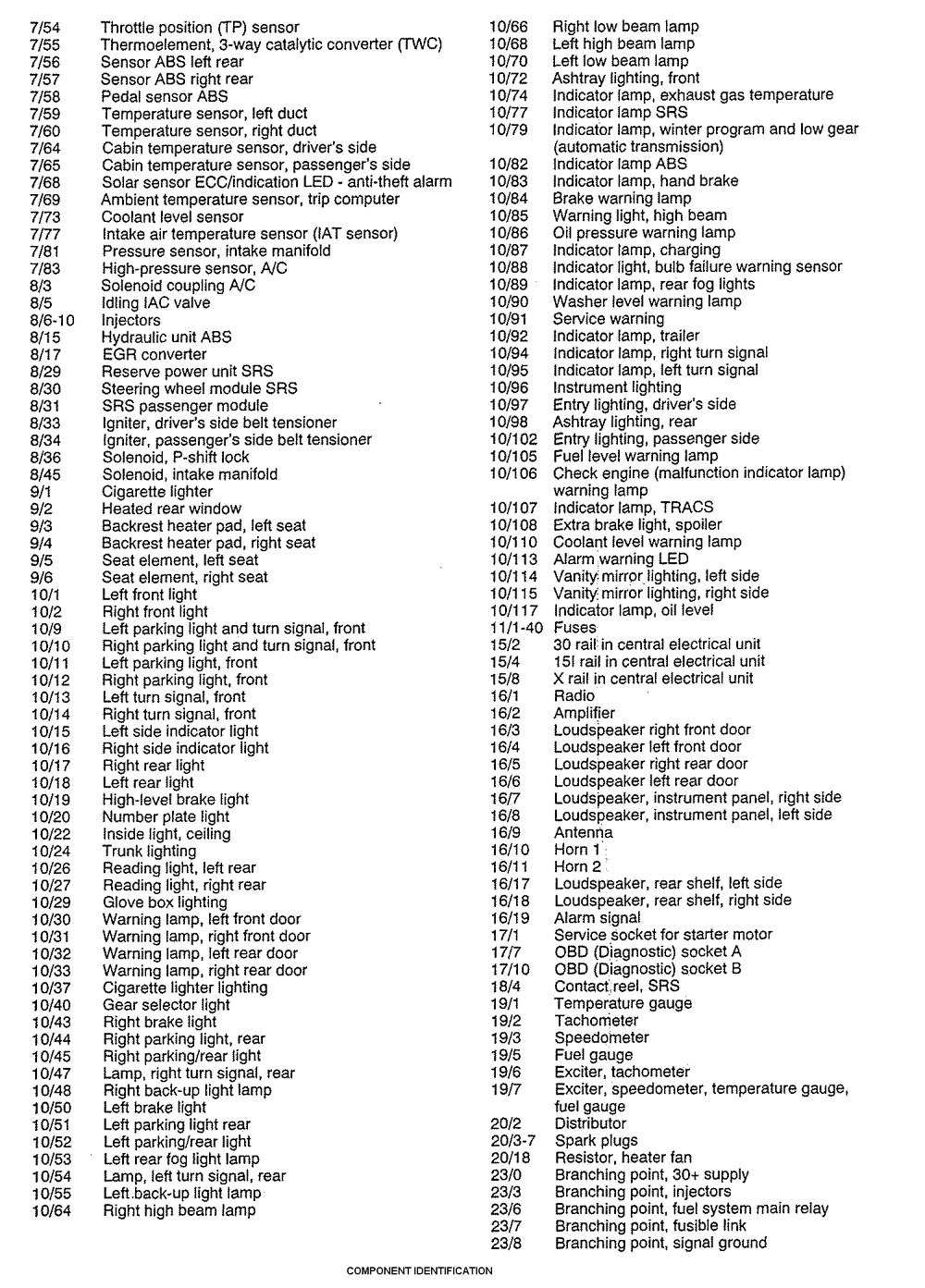

Volvo 850 - wiring diagram - component (part 2)
Volvo 850 – wiring diagram – component (part 2)

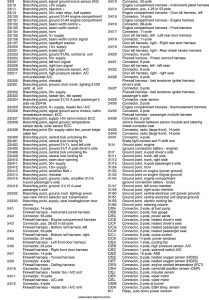

Volvo 850 - wiring diagram - component (part 3)
Volvo 850 – wiring diagram – component (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
