Volvo 850 (1996) – wiring diagrams – clock

Volvo 850 (1996) – wiring diagrams – clock

Year of productions:  1996

Clock

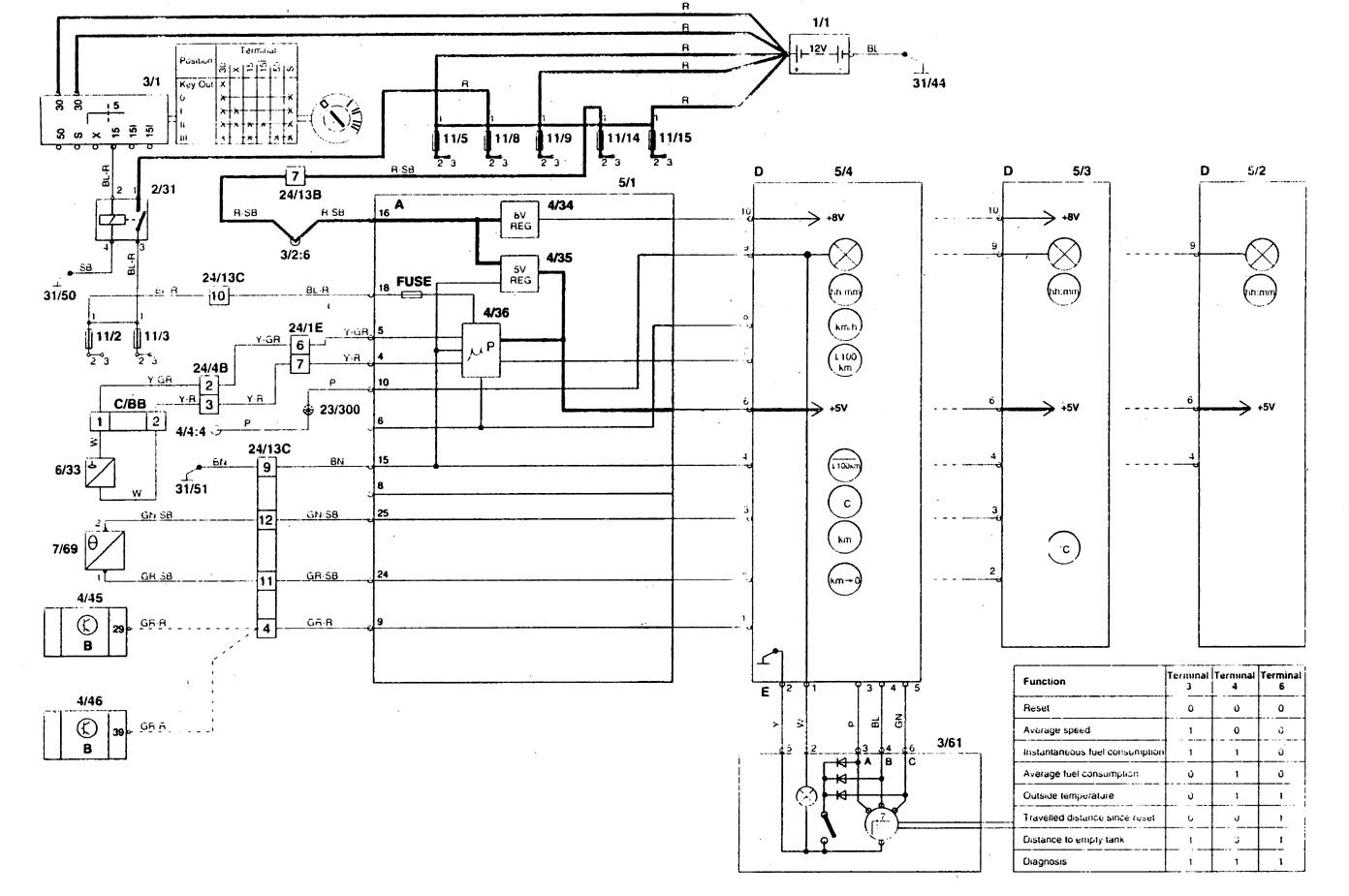

Volvo 850 - wiring diagram - clock (part 1)
Volvo 850 – wiring diagram – clock (part 1)

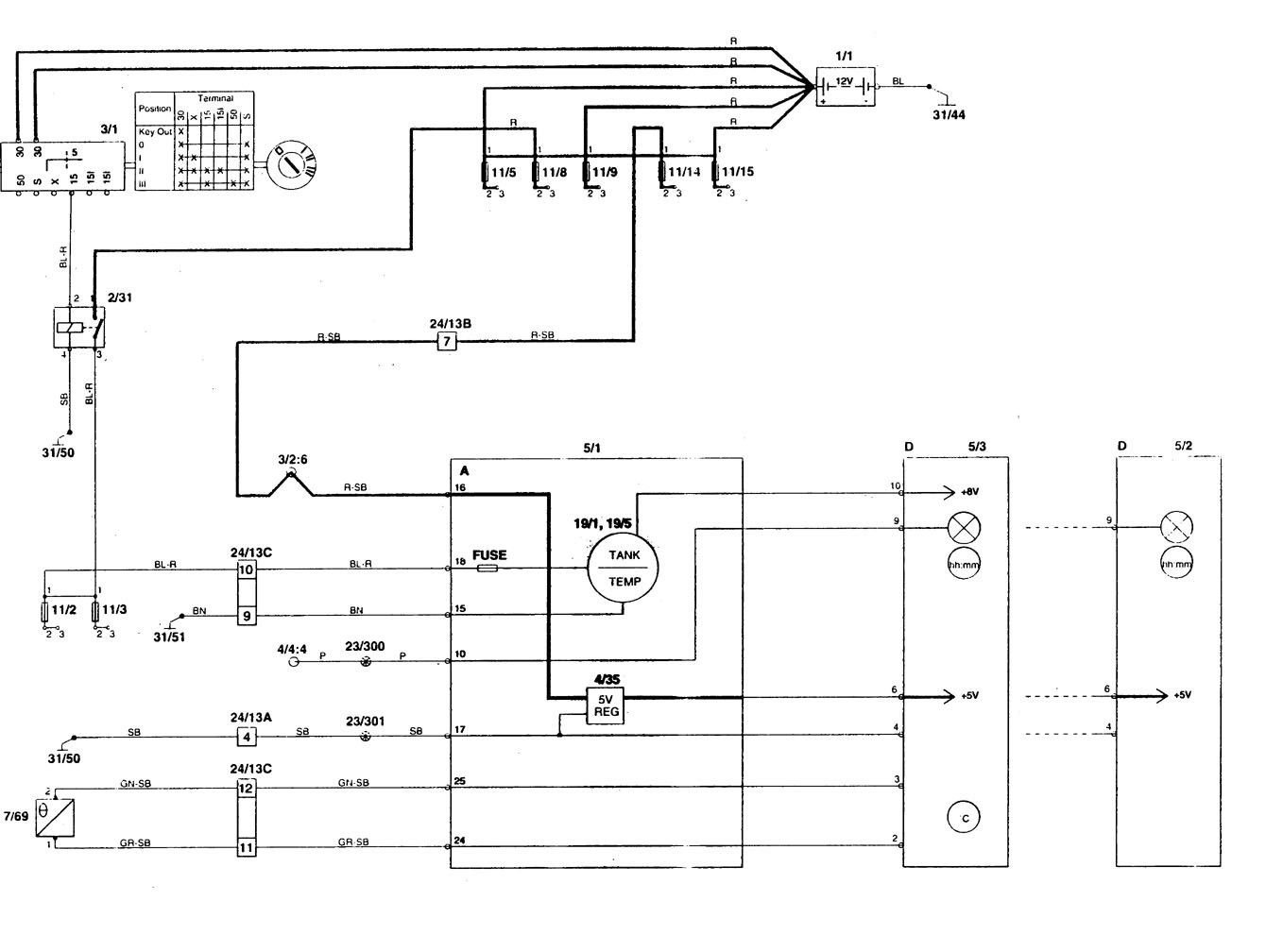

Volvo 850 – wiring diagram – clock (part 2)
Volvo 850 - wiring diagram - clock (part 2)
Volvo 850 – wiring diagram – clock (part 2)
Volvo 850 - wiring diagram - clock (part 3)
Volvo 850 – wiring diagram – clock (part 3)
Volvo 850 - wiring diagram - clock (part 4)
Volvo 850 – wiring diagram – clock (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
