Volvo 850 (1996 – 1997) – wiring diagrams – power/auxiliary outlet

Volvo 850 (1996 – 1997) – wiring diagrams – power/auxiliary outlet

Year of productions:  1996, 1997

Power/auxiliary outlet

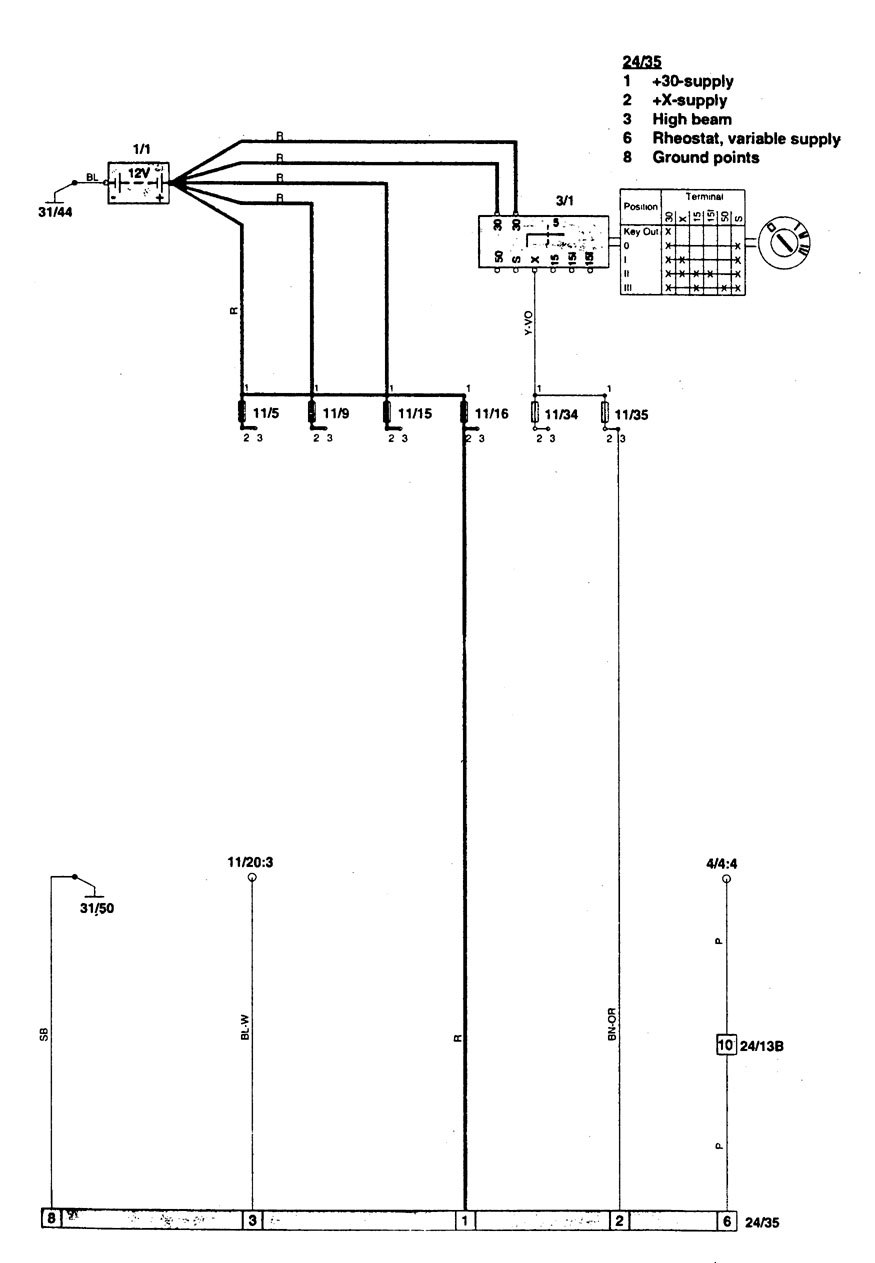

Volvo 850 - wiring diagram - power - auxiliary/outlet
Volvo 850 – wiring diagram – power – auxiliary/outlet
Volvo 850 - wiring diagram - component identification (part 1)
Volvo 850 – wiring diagram – component identification (part 1)
Volvo 850 - wiring diagram - component identification (part 2)
Volvo 850 – wiring diagram – component identification (part 2)
Volvo 850 - wiring diagram - component identification (part 3)
Volvo 850 – wiring diagram – component identification (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
