Volvo 850 (1997) – wiring diagrams – power locks

Volvo 850 (1997) – wiring diagrams – power locks

Year of productions:  1997

Power locks

Volvo 850 - wiring diagram - power locks (part 1)
Volvo 850 – wiring diagram – power locks (part 1)

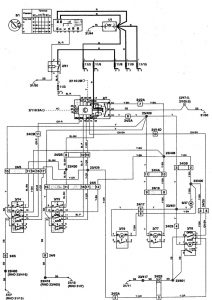

Volvo 850 - wiring diagram - power locks (part 2)
Volvo 850 – wiring diagram – power locks (part 2)
Volvo 850 - wiring diagram - power locks (part 3)
Volvo 850 – wiring diagram – power locks (part 3)
Volvo 850 - wiring diagram - power locks (part 4)
Volvo 850 – wiring diagram – power locks (part 4)
Volvo 850 - wiring diagram - power locks (part 5)
Volvo 850 – wiring diagram – power locks (part 5)

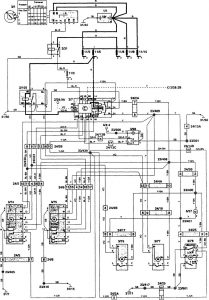

Volvo 850 - wiring diagram - power locks (part 6)
Volvo 850 – wiring diagram – power locks (part 6)
Volvo 850 - wiring diagram - component (part 1)
Volvo 850 – wiring diagram – component (part 1)
Volvo 850 - wiring diagram - component (part 2)
Volvo 850 – wiring diagram – component (part 2)
Volvo 850 - wiring diagram - component (part 3)
Volvo 850 – wiring diagram – component (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
