Volvo 940 (1993) – wiring diagrams – fuel controls

Volvo 940 (1993) – wiring diagrams – fuel controls

Year of productions:  1993

Fuel controls

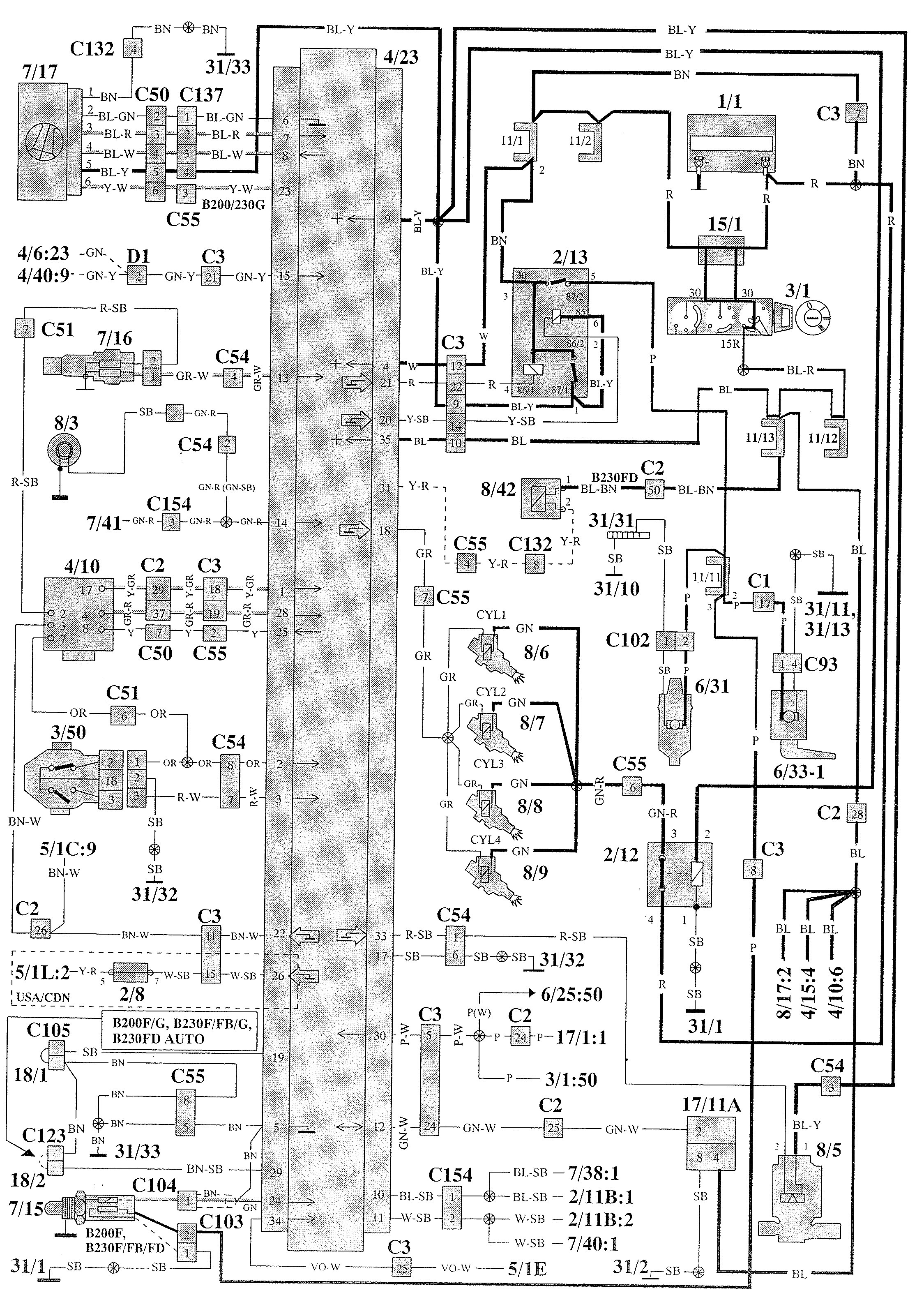

Volvo 940 – wiring diagram – fuel controls (part 1)

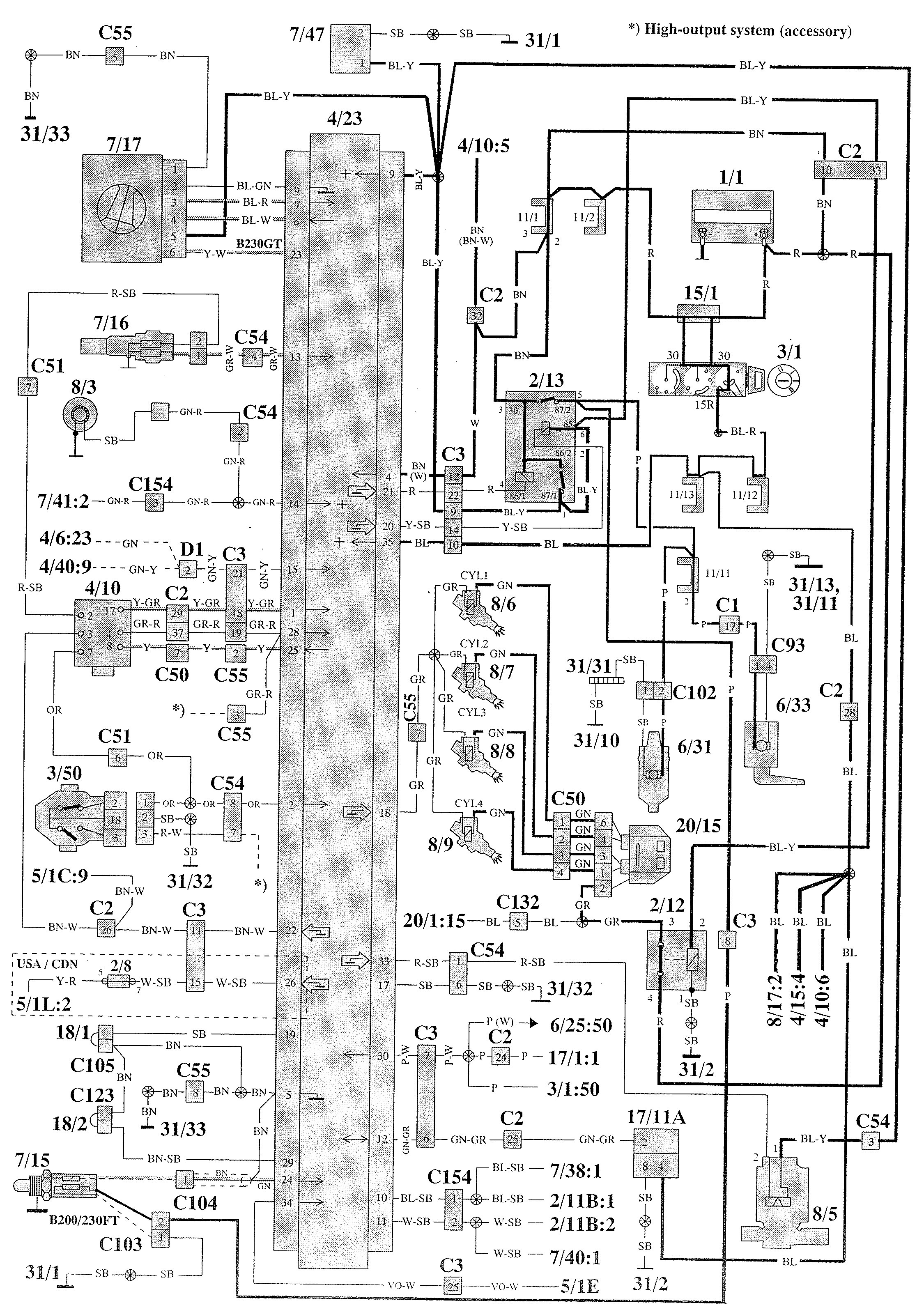

Volvo 940 – wiring diagram – fuel controls (part 2)

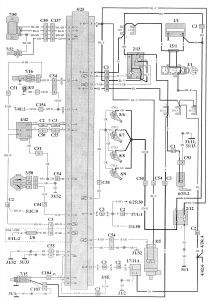

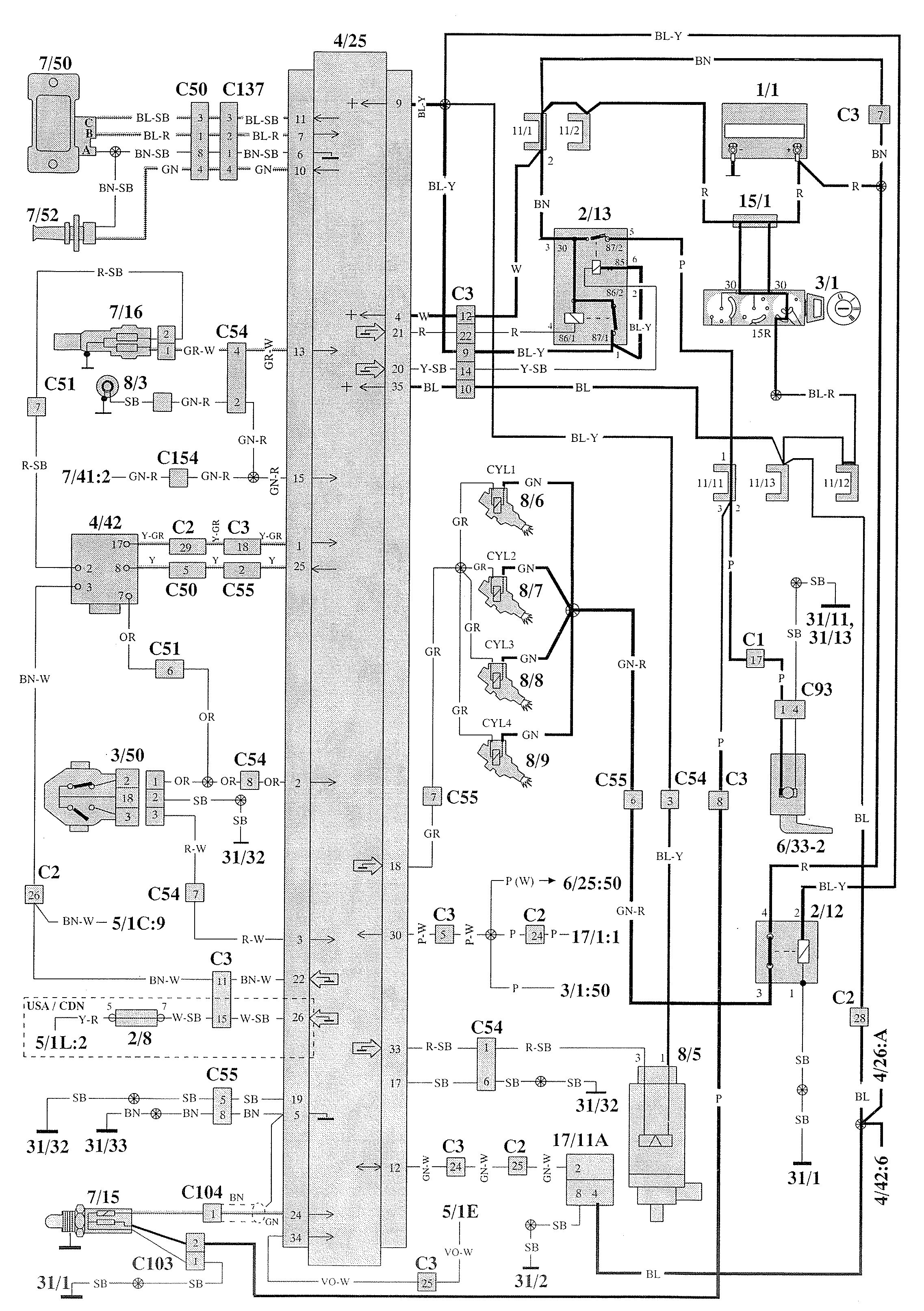

Volvo 940 – wiring diagram – fuel controls (part 3)

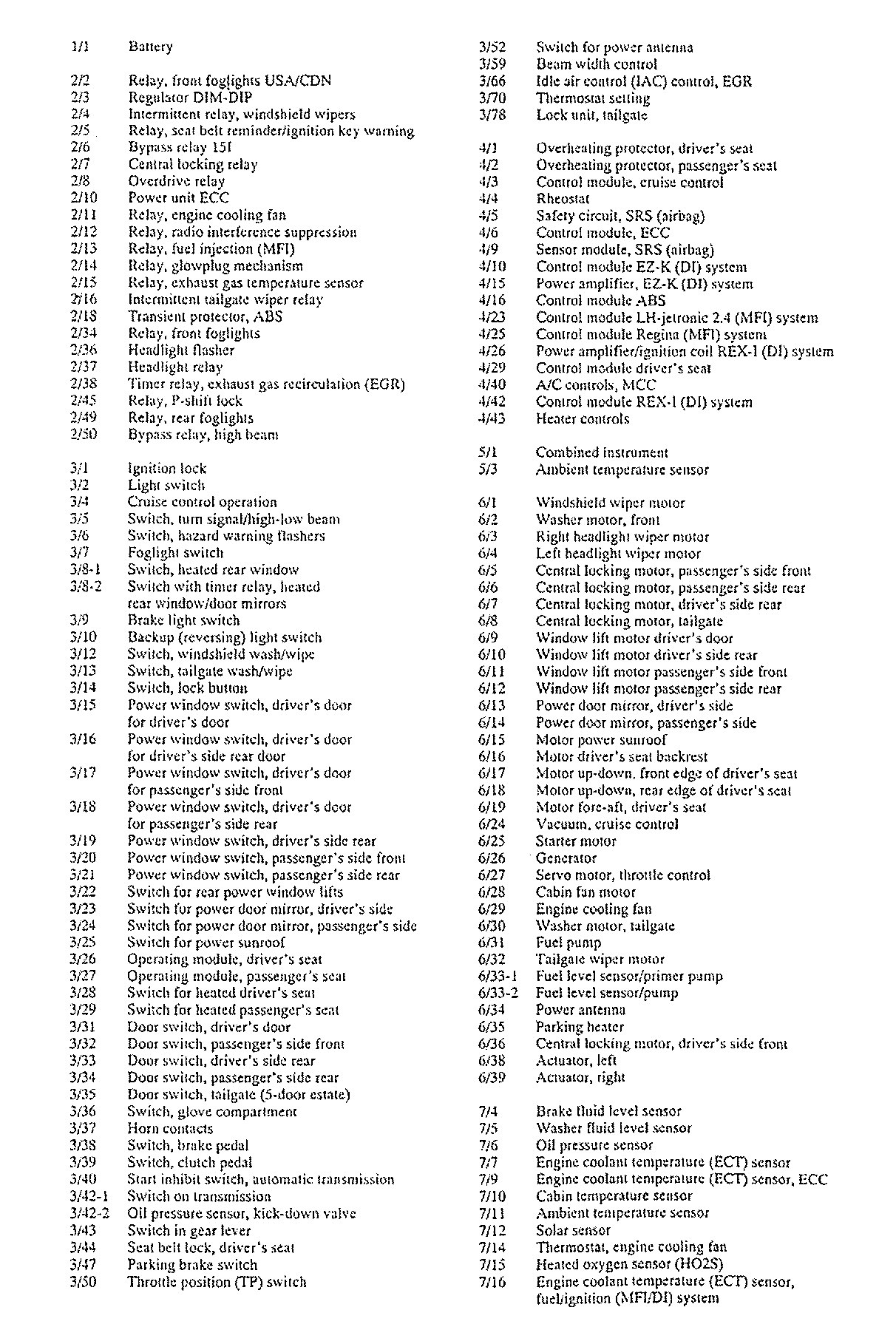

Volvo 940 – wiring diagram – fuel controls (part 4)

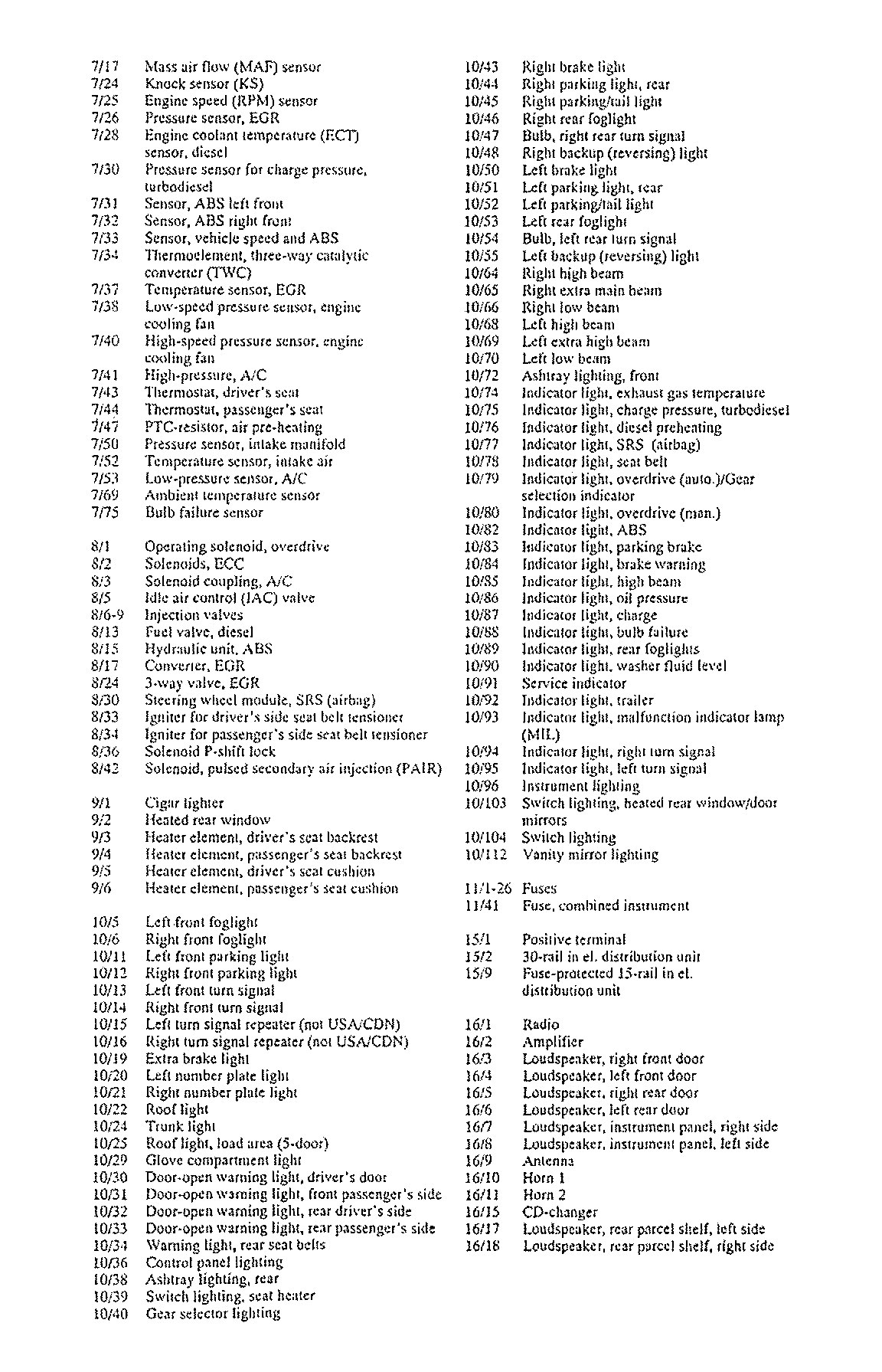

Volvo 940 – wiring diagram – fuel controls (part 5)

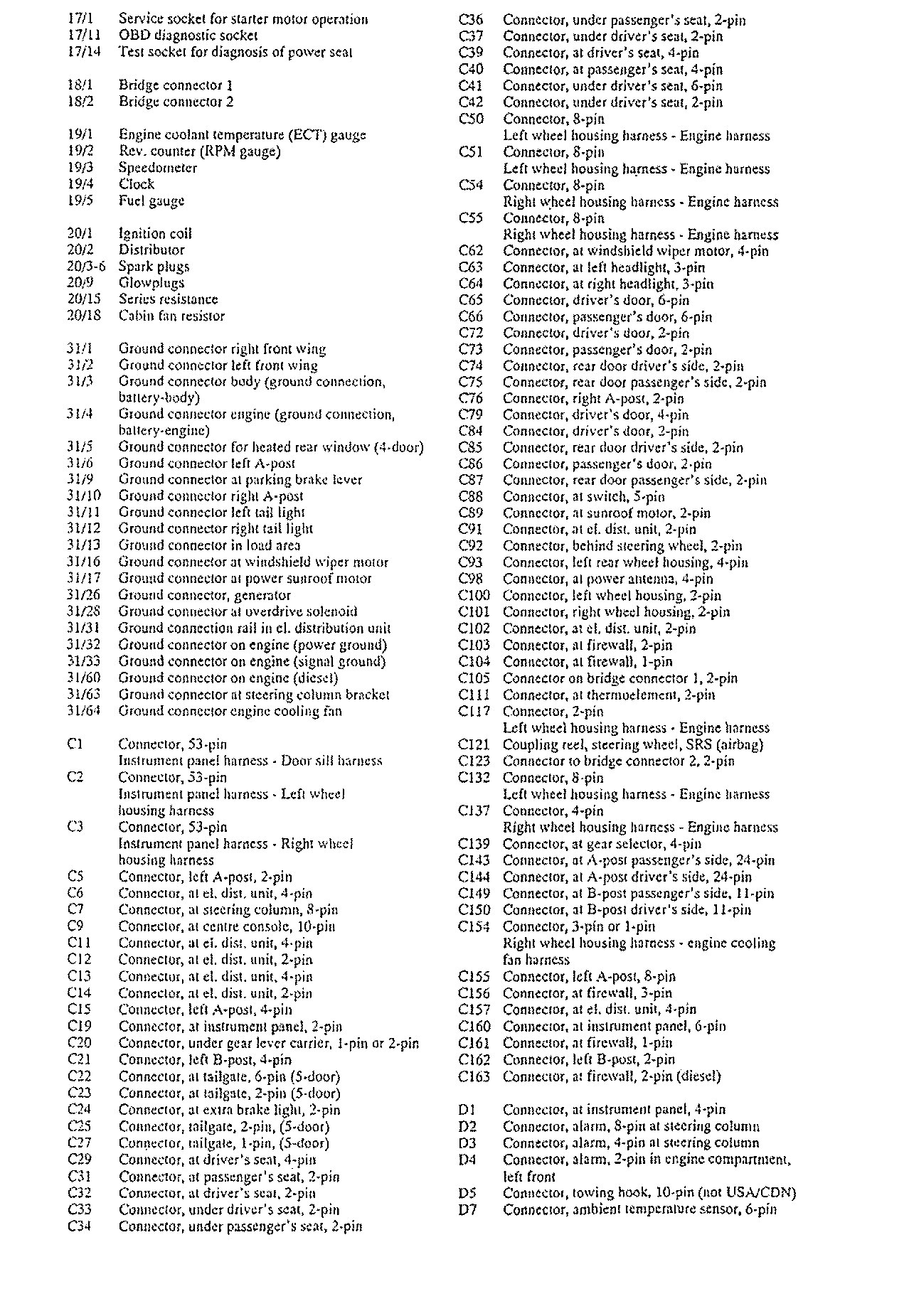

Volvo 940 – wiring diagram – fuel controls (part 6)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
