Year of productions:  1993

Wiper/washer

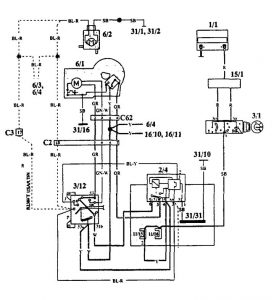

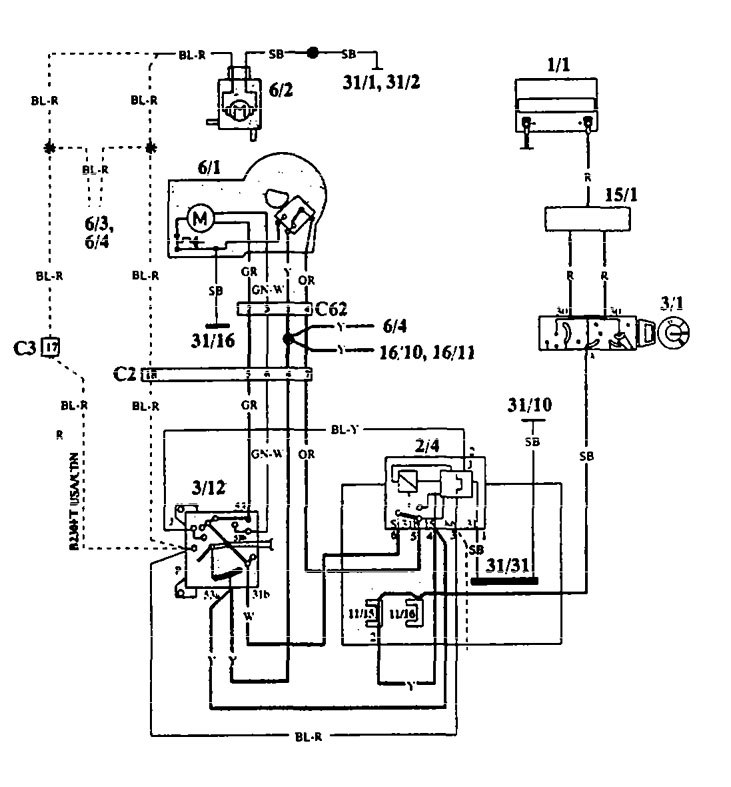

Volvo 940 – wiring diagram – wiper/washer (part 1)

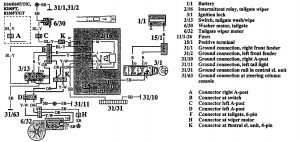

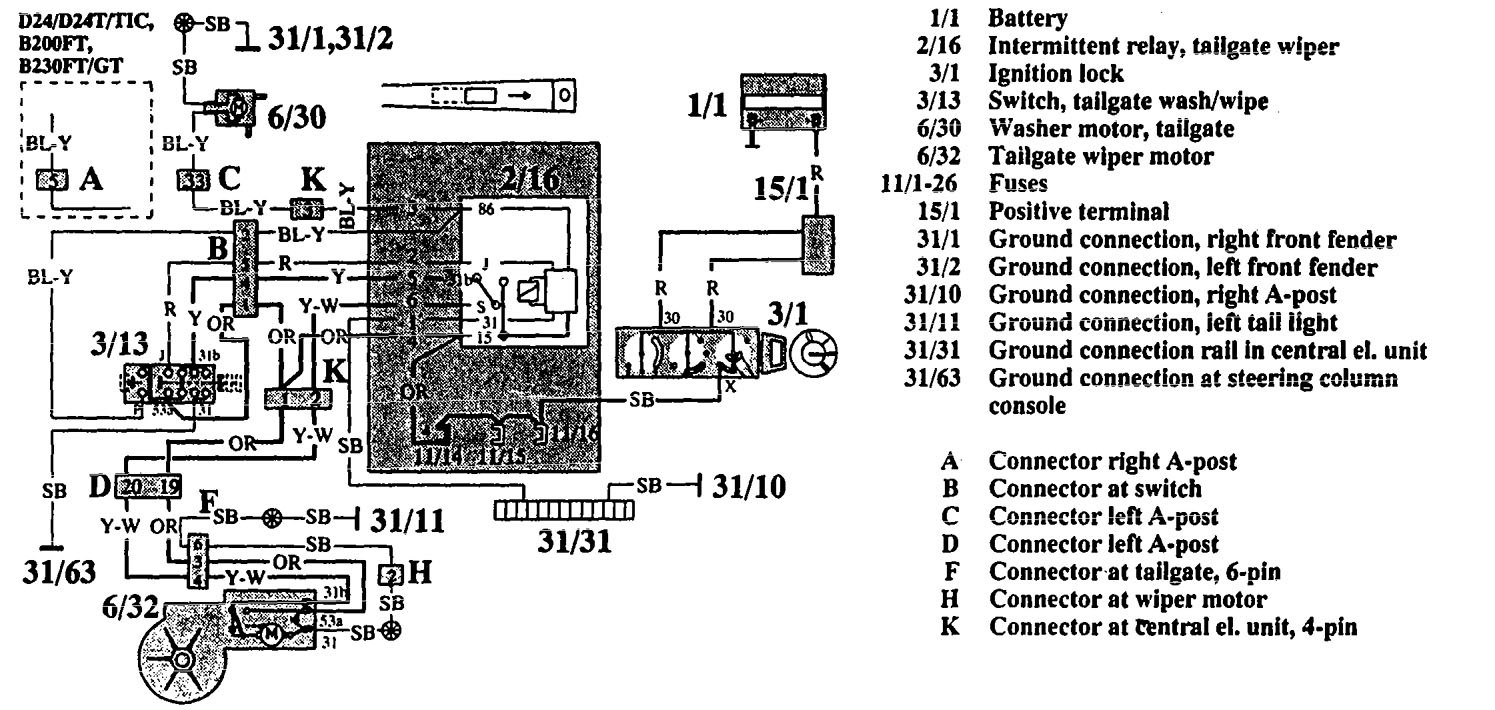

Volvo 940 – wiring diagram – wiper/washer (part 2)
Volvo 940 – wiring diagram – wiper/washer (part 3)
Volvo 940 – wiring diagram – wiper/washer (part 4)
Volvo 940 – wiring diagram – wiper/washer (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
