Volvo 940 (1995) – wiring diagrams – key warning

Volvo 940 (1995) – wiring diagrams – key warning

Year of productions:  1995

Key warning

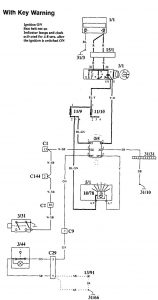

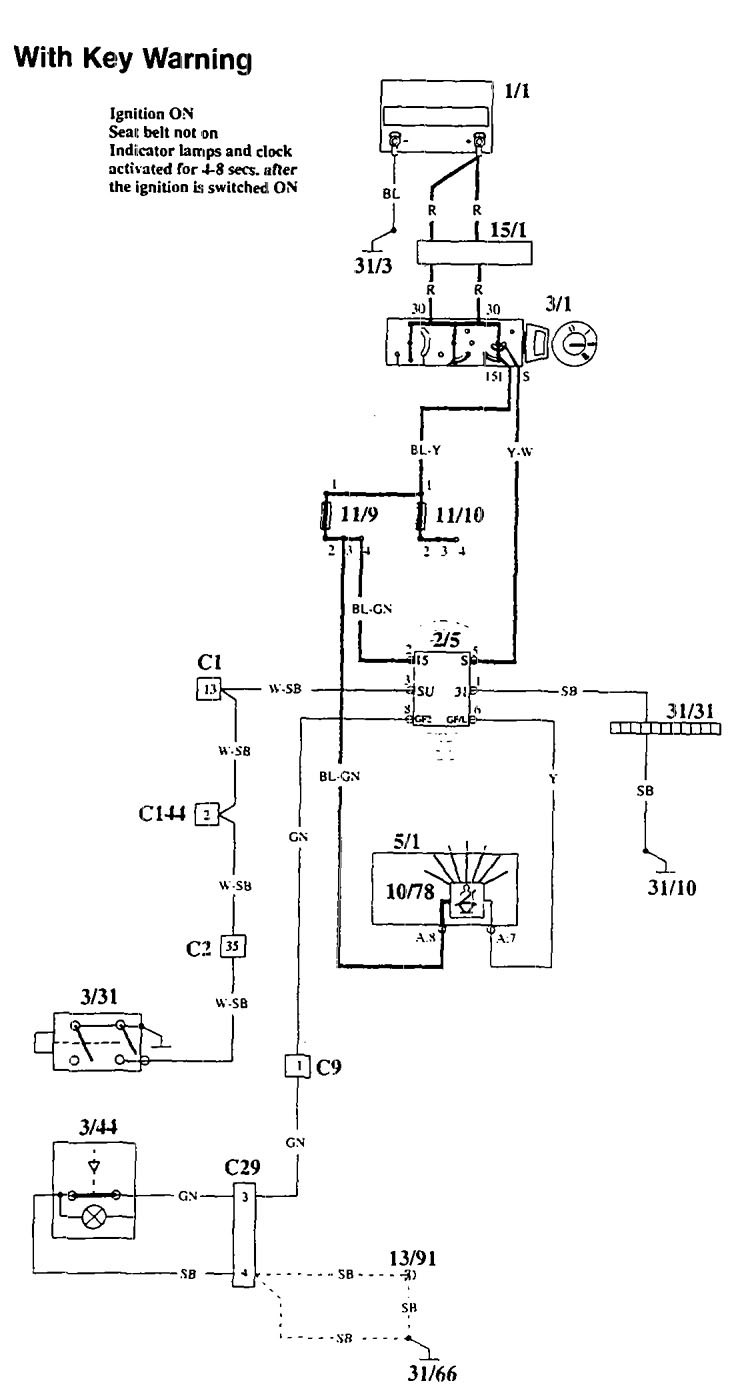

Volvo 940 – wiring diagrams – key warning (part 1)

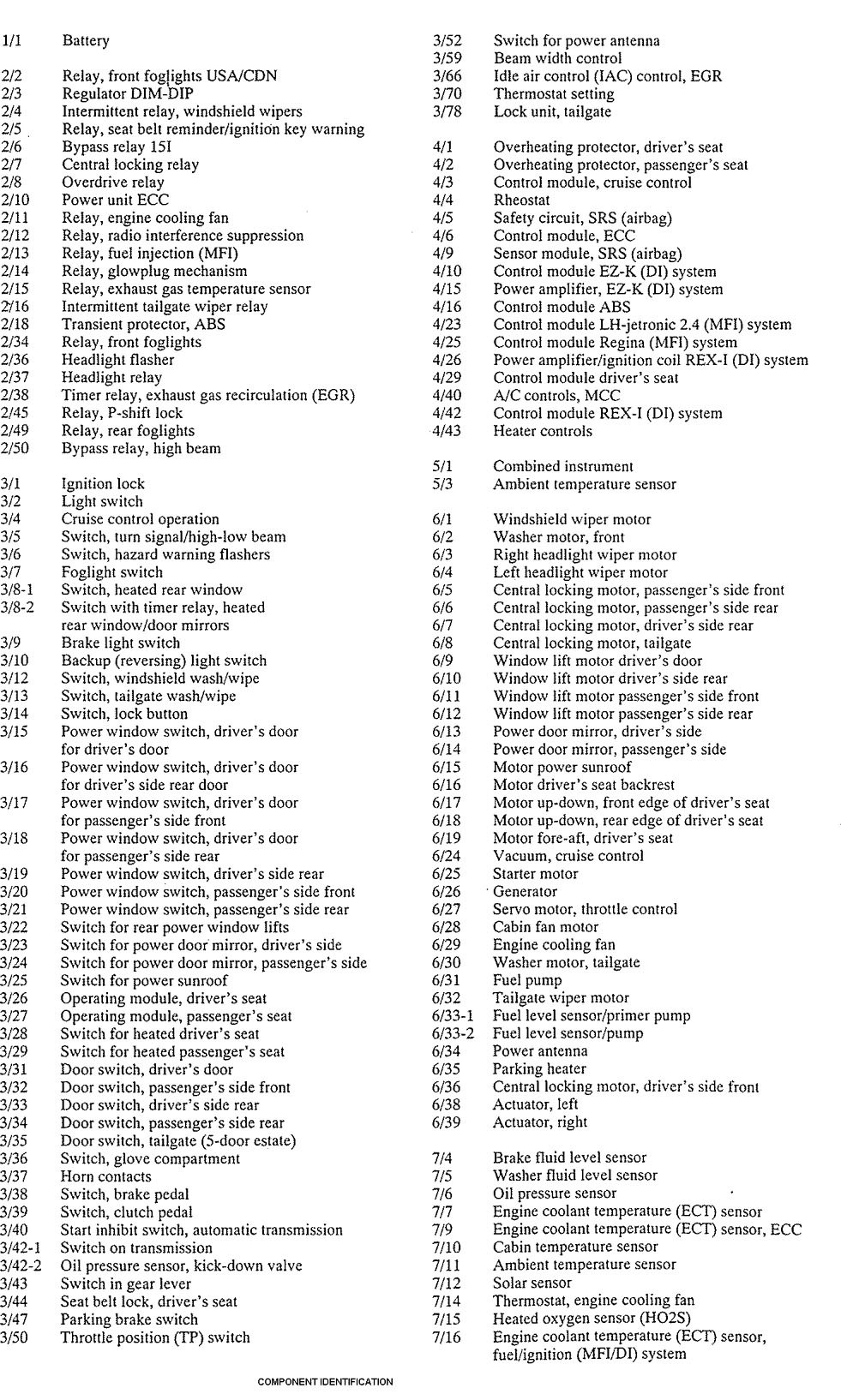

Volvo 940 – wiring diagram – key warning (part 2)

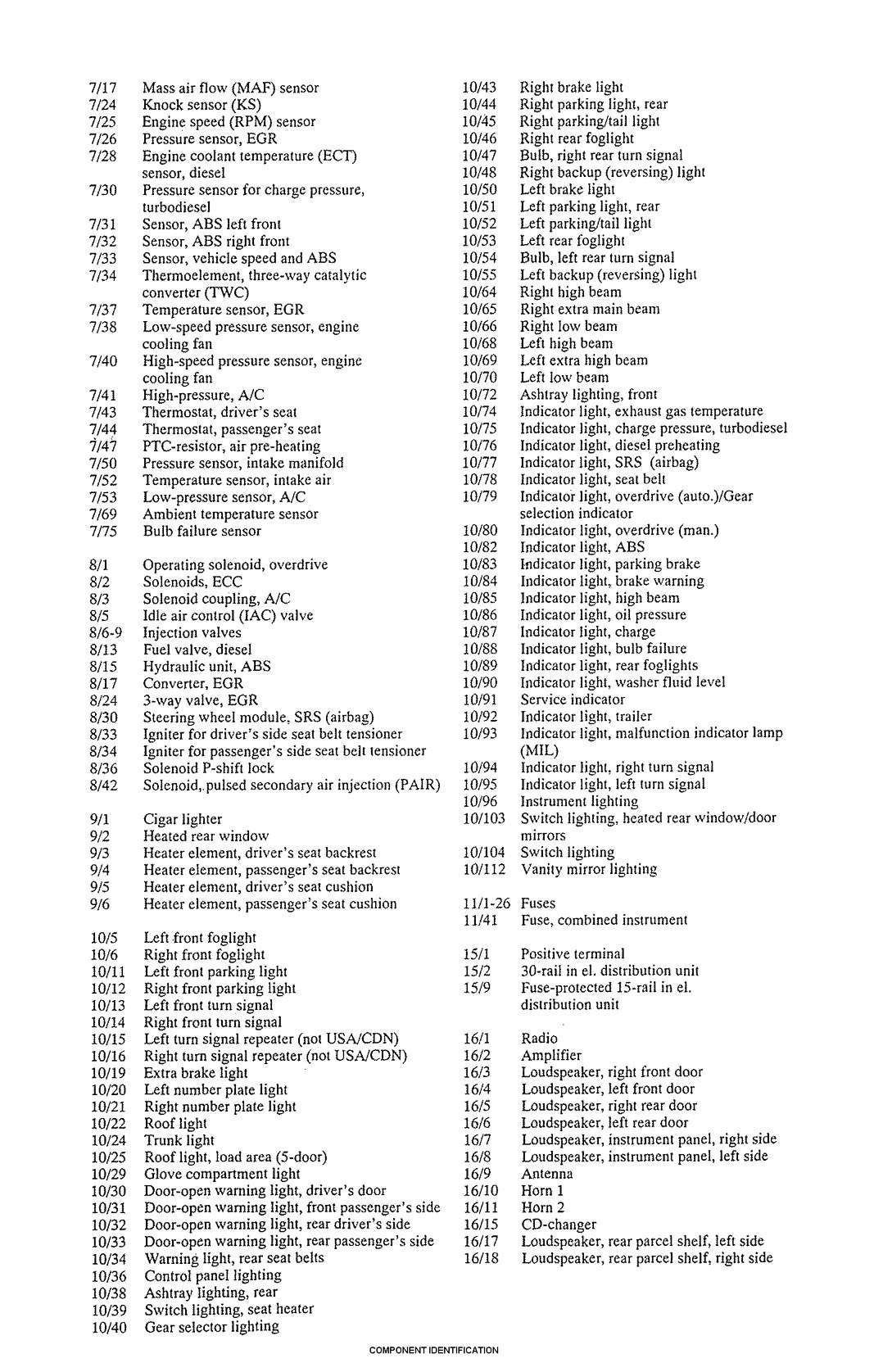

Volvo 940 – wiring diagram – key warning (part 3)

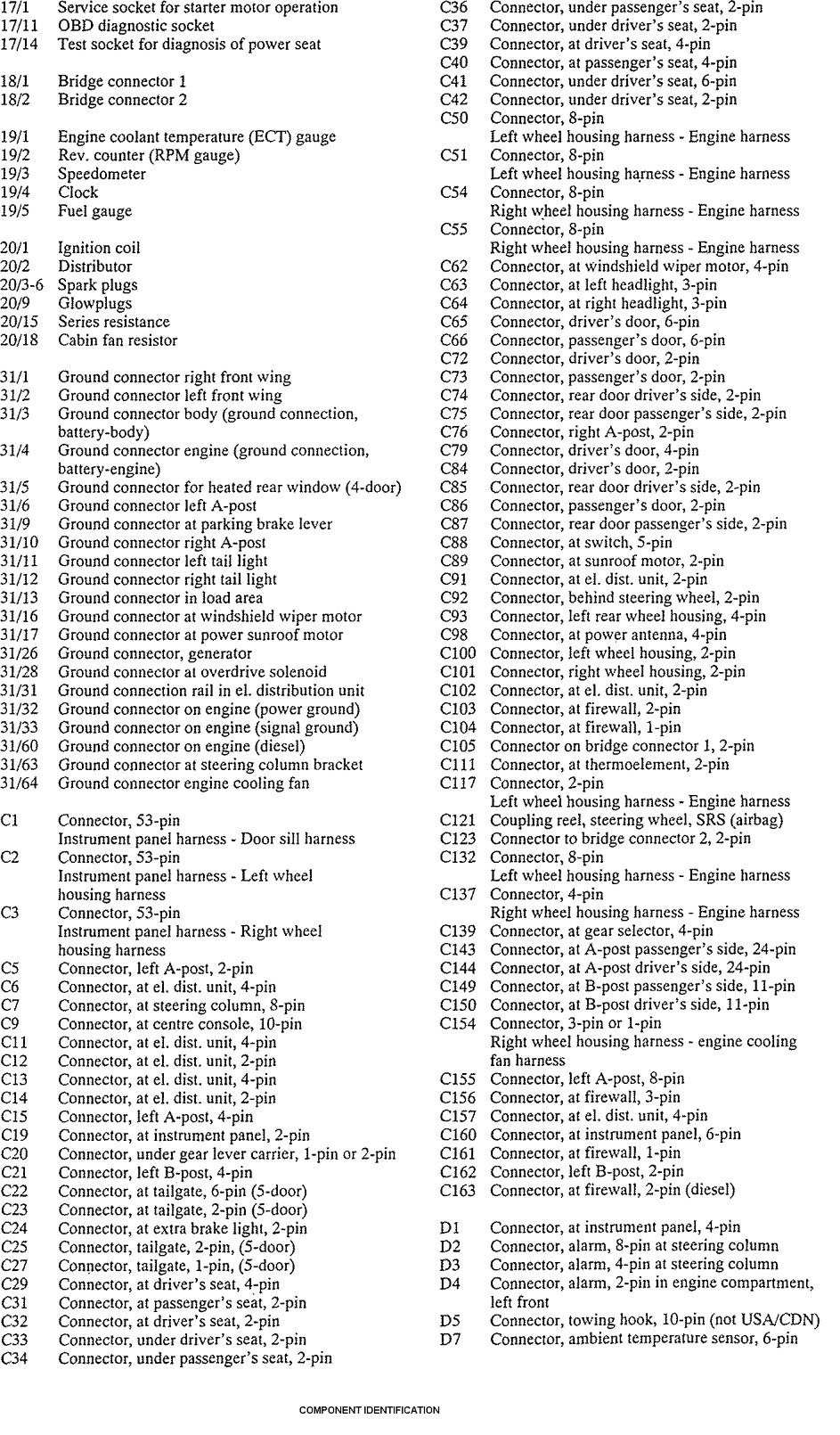

Volvo 940 – wiring diagram – key warning (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
