Volvo 940 (1995) – wiring diagrams – wiper/washer

Volvo 940 (1995) – wiring diagrams – wiper/washer

Year of productions:  1995

Wiper/washer

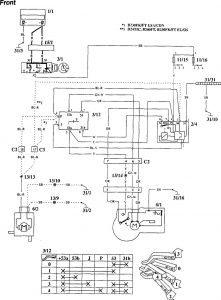

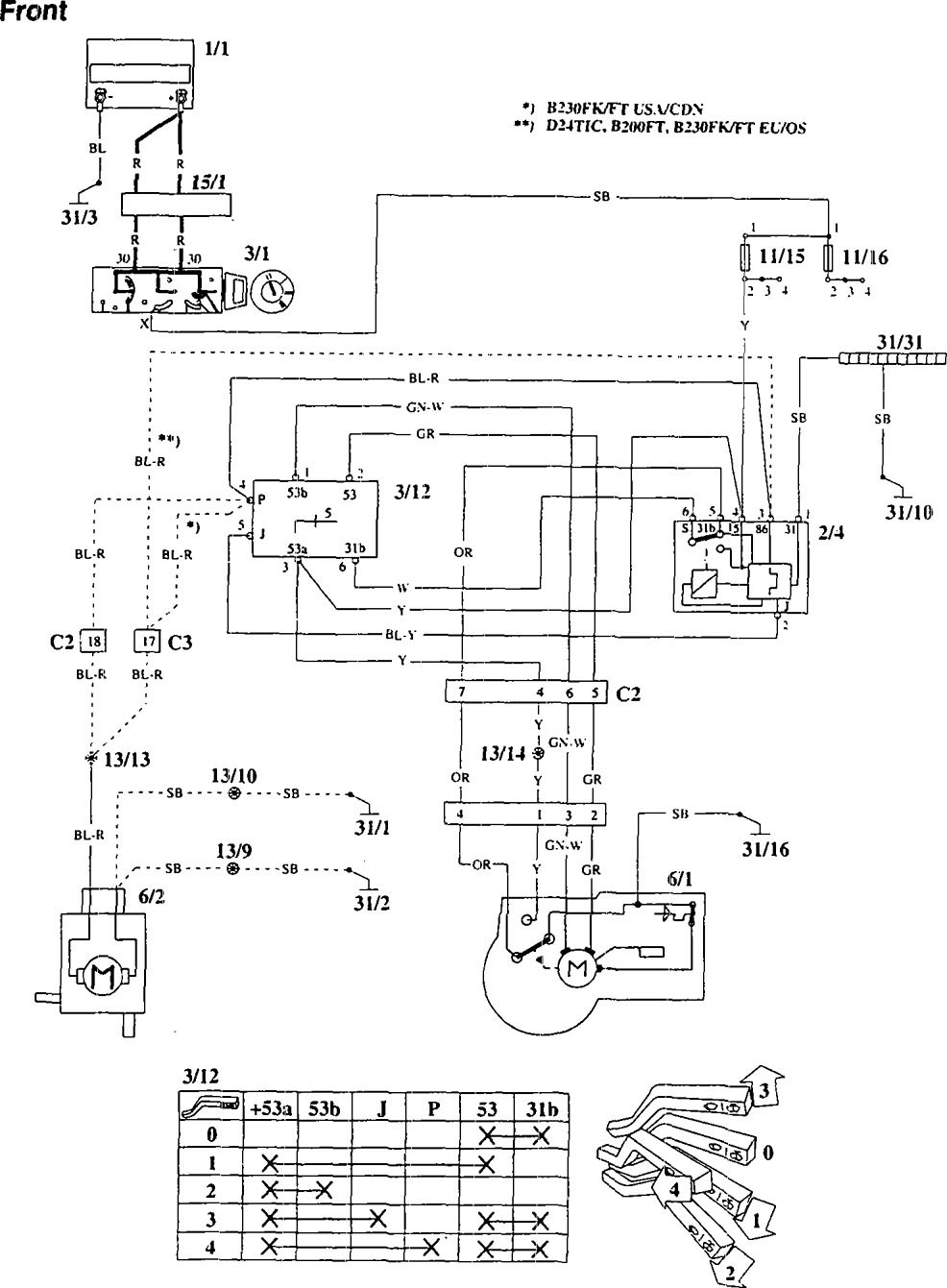

Volvo 940 – wiring diagram – wiper/washer (part 1)

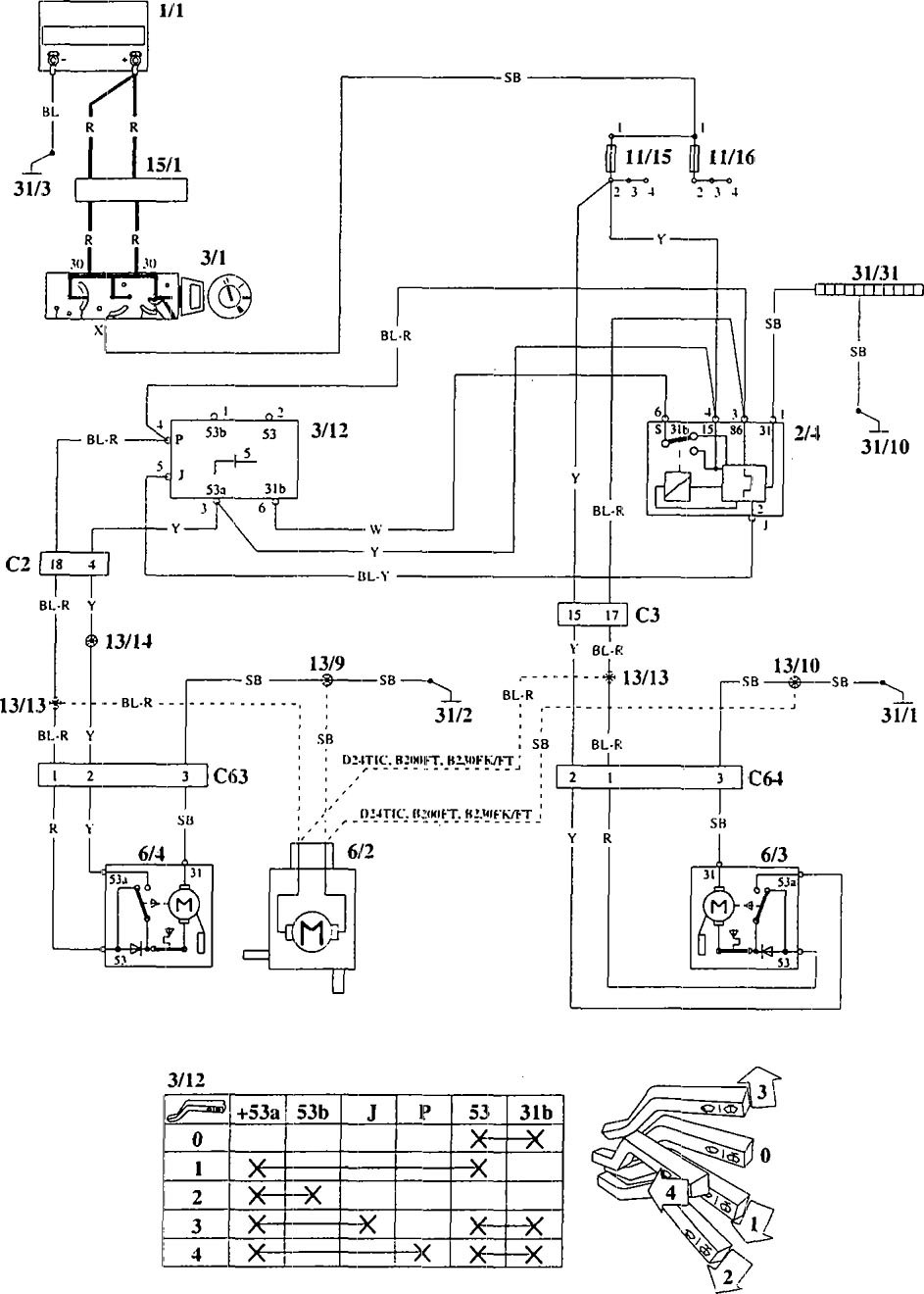

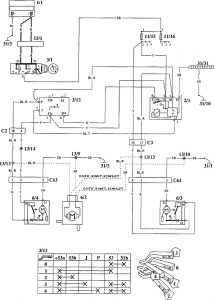

Volvo 940 – wiring diagram – wiper/washer (part 2)

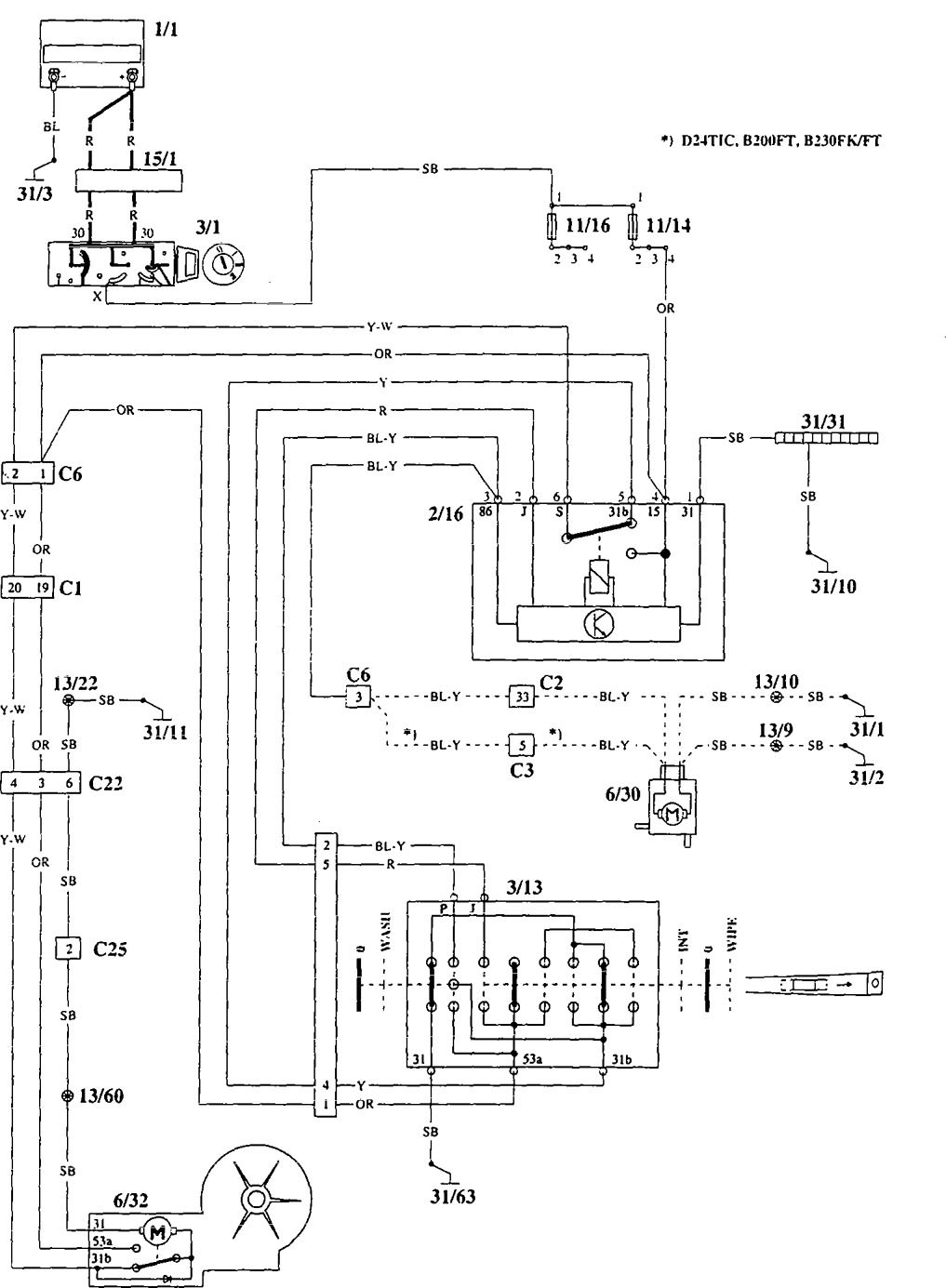

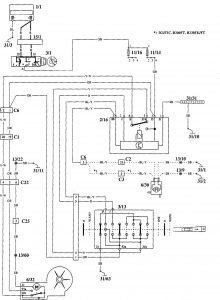

Volvo 940 – wiring diagram – wiper/washer (part 3)

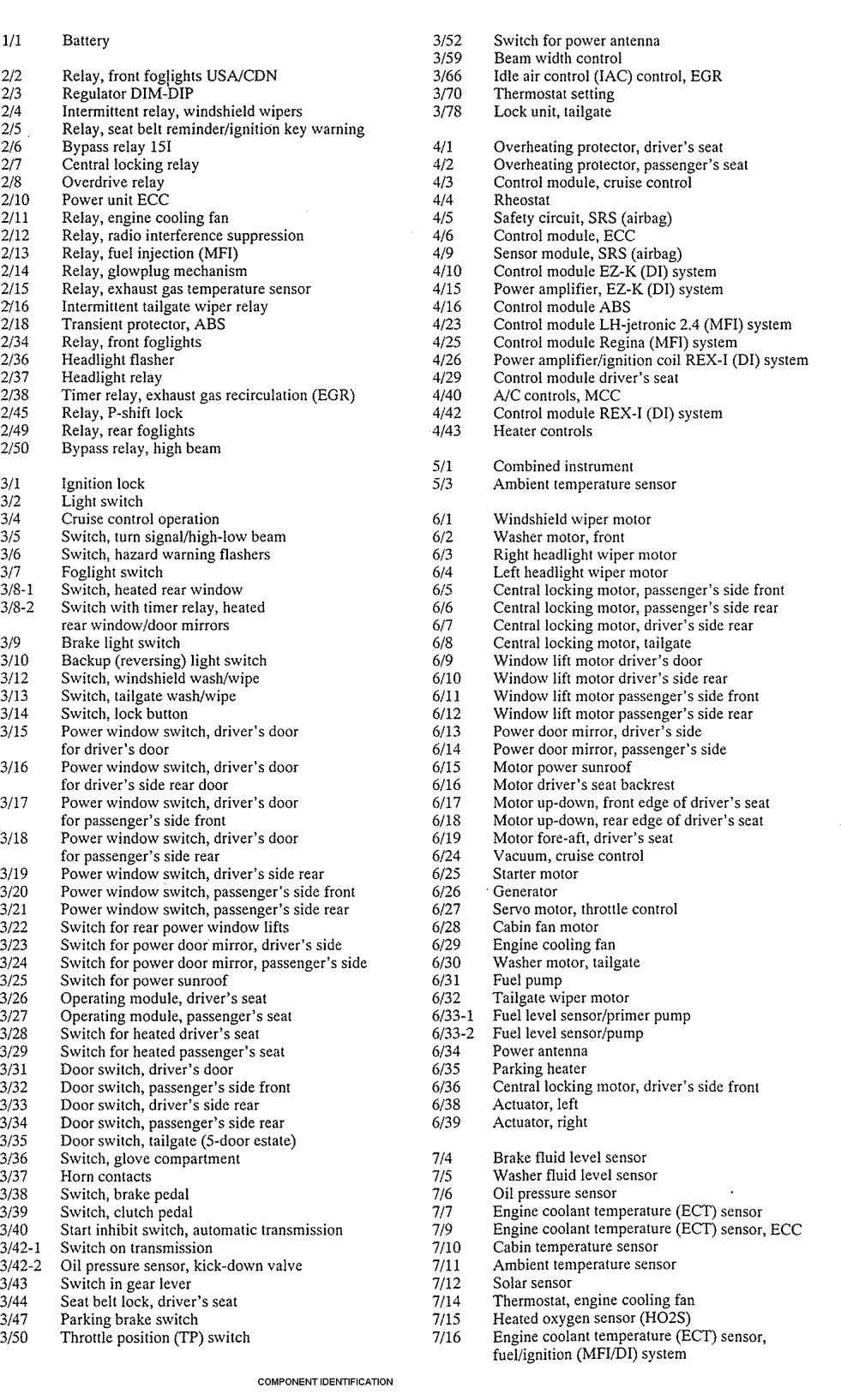

Volvo 940 – wiring diagram – wiper/washer (part 3)

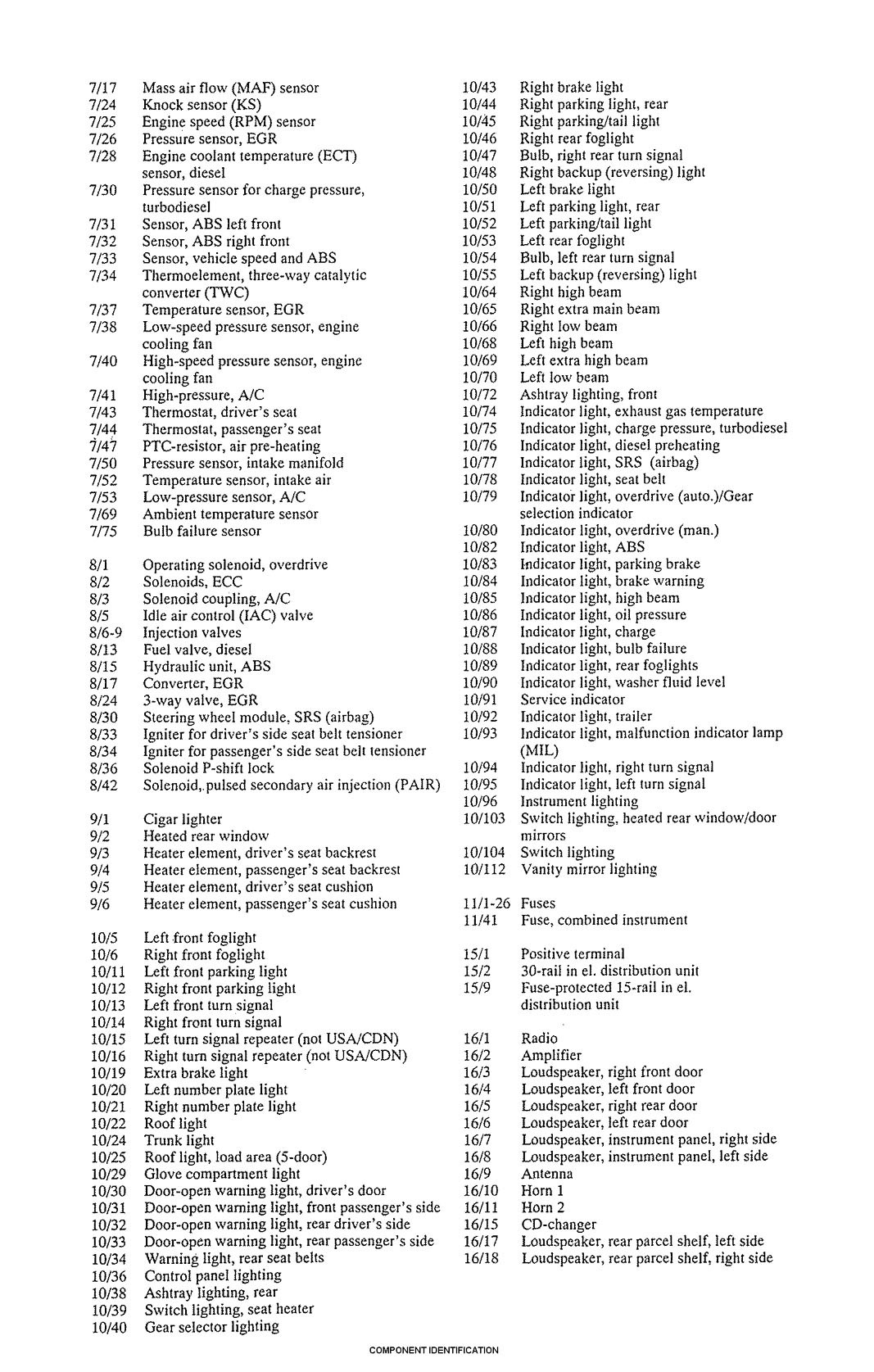

Volvo 940 – wiring diagram – wiper/washer (part 4)

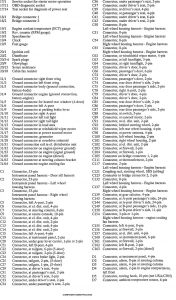

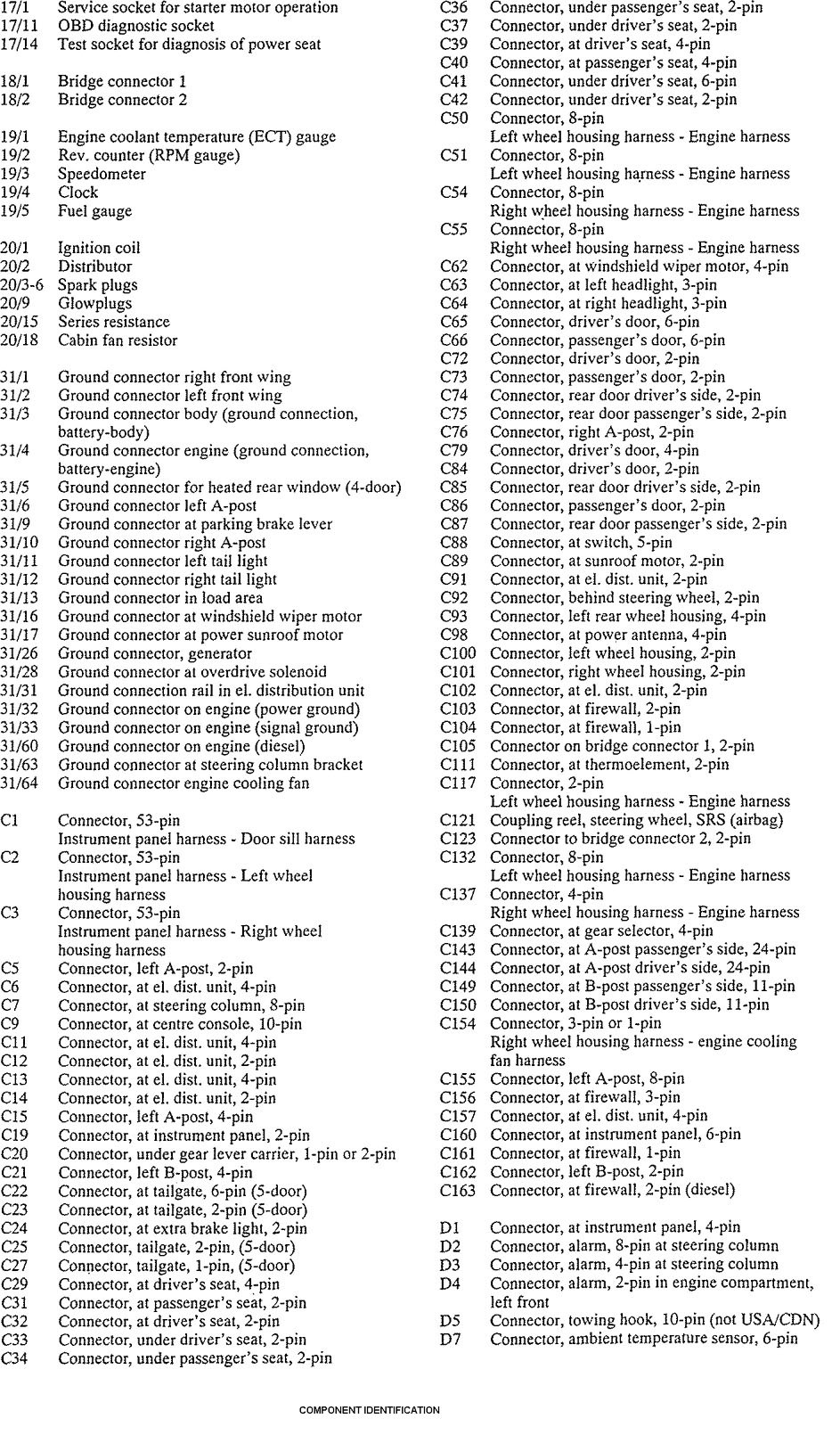

Volvo 940 – wiring diagram – wiper/washer (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
