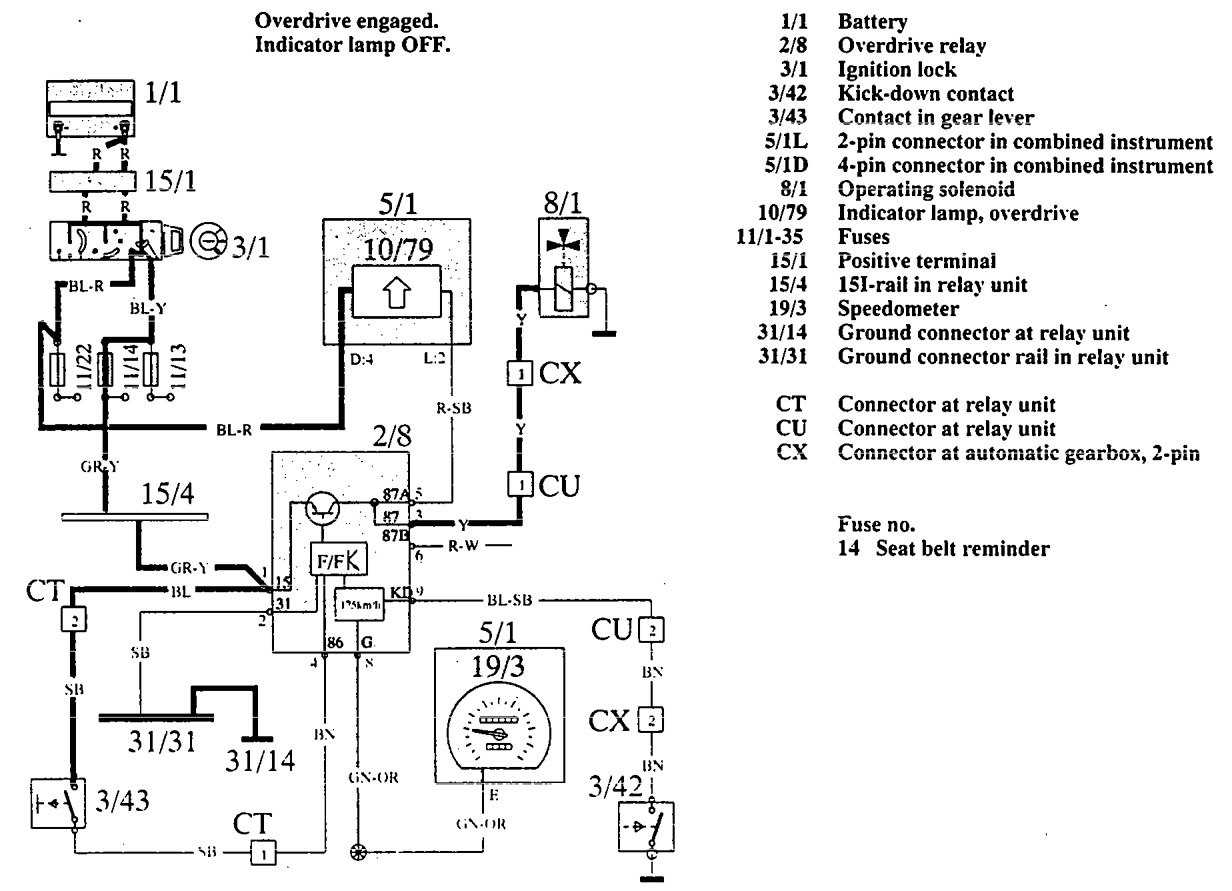

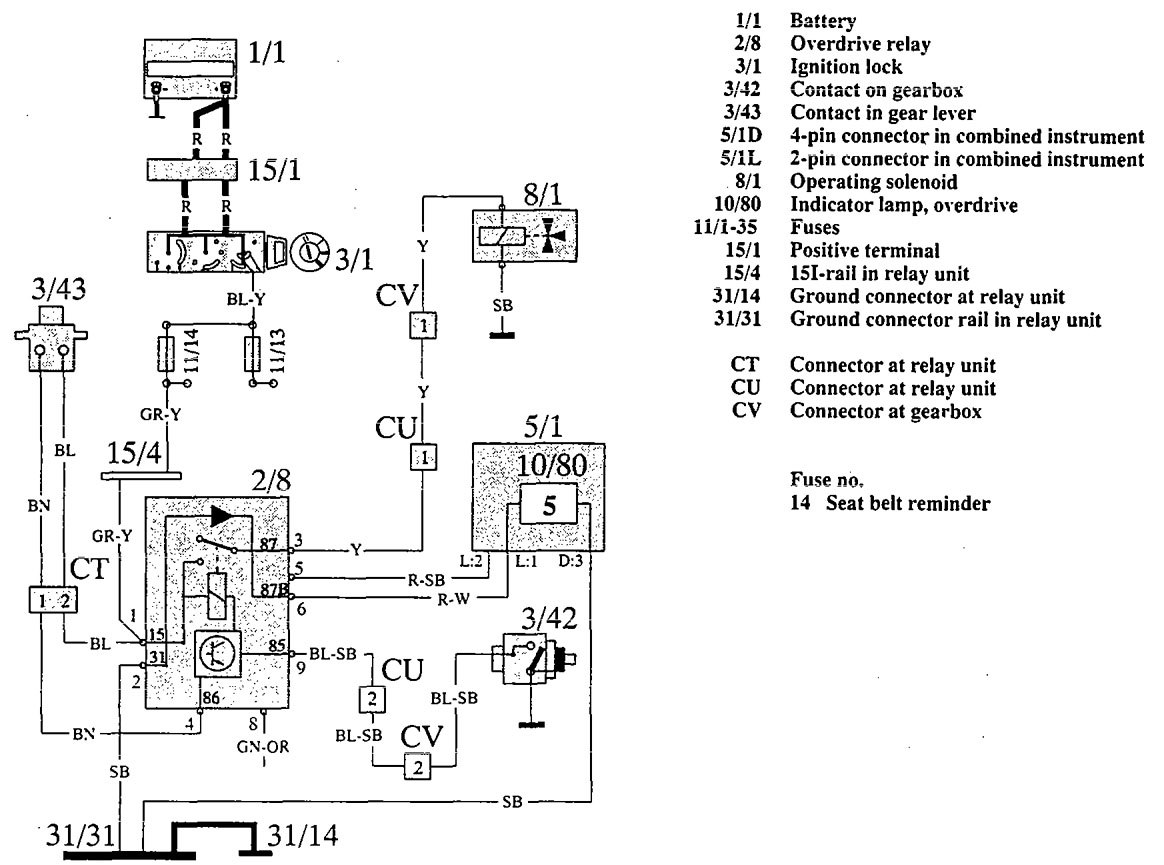

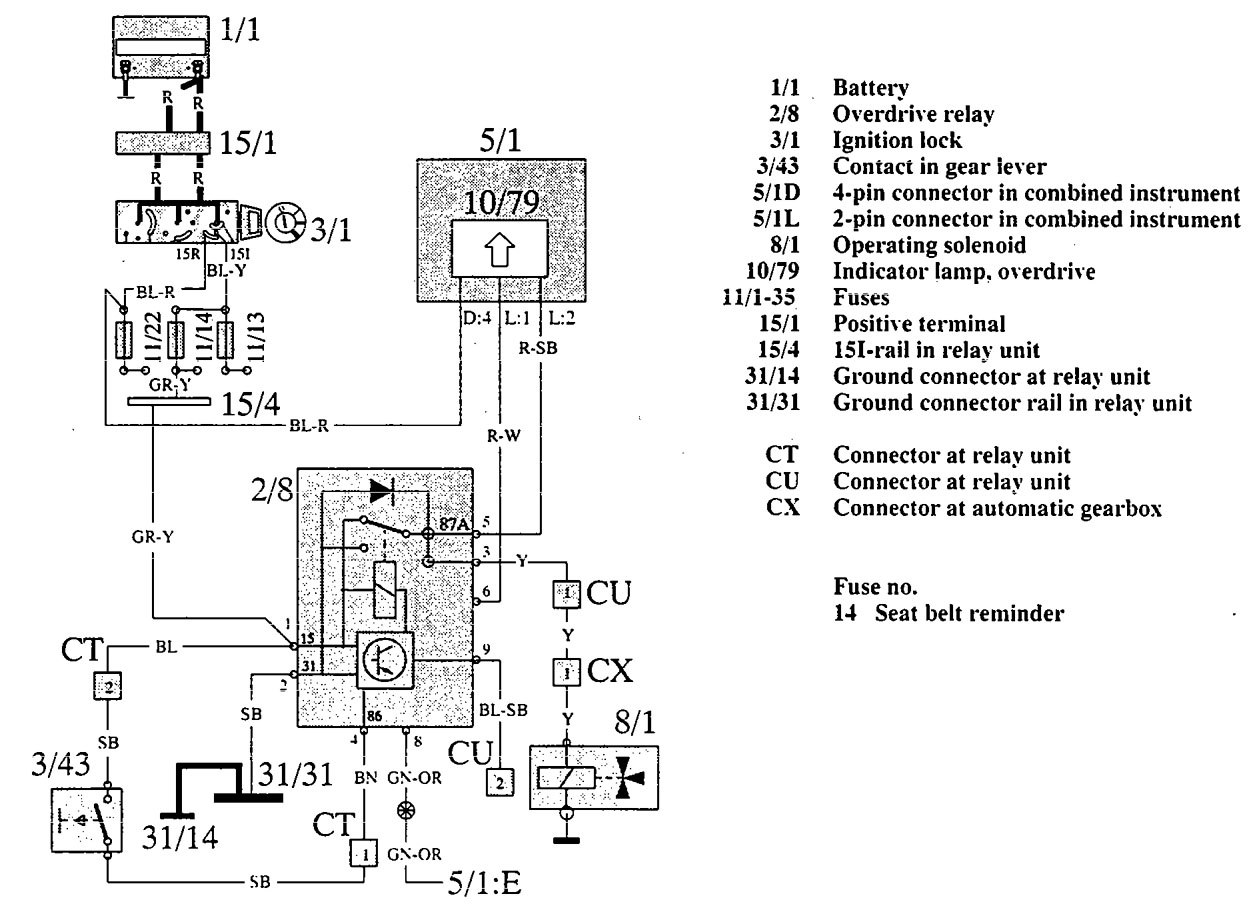

Volvo 960 (1992 – 1994) – wiring diagrams – overdrive controls

Volvo 244 (1986 – 1987) – wiring diagrams – HVAC controls Year of productions:  1986, 1987 HVAC controls WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and […]

Mercedes-Benz 420SEL (1990 – 1991) – wiring diagrams – audible warning system Year of productions:  1990, 1991 Audible warning system WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, […]

Acura NSX (2005) – wiring diagrams – illuminated entry Year of productions:  2005 Illuminated entry WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
