Volvo 960 (1996) – wiring diagrams – heated seats

Volvo 960 (1996) – wiring diagrams – heated seats

Year of productions:  1996

Heated seats

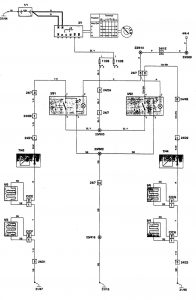

Volvo 960 - wiring diagram - heated seats (part 1)
Volvo 960 – wiring diagram – heated seats (part 1)

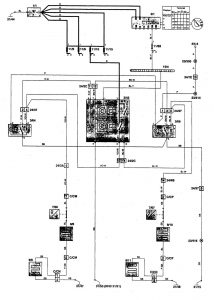

Volvo 960 - wiring diagram - heated seats (part 2)
Volvo 960 – wiring diagram – heated seats (part 2)

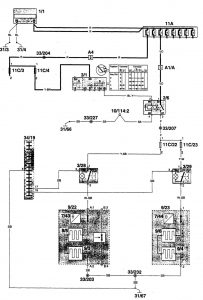

Volvo 960 - wiring diagram - heated seats (part 3)
Volvo 960 – wiring diagram – heated seats (part 3)
Volvo 960 - wiring diagram - heated seats (part 4)
Volvo 960 – wiring diagram – heated seats (part 4)
Volvo 960 - wiring diagram - heated seats (part 5)
Volvo 960 – wiring diagram – heated seats (part 5)
Volvo 960 - wiring diagram - heated seats (part 6)
Volvo 960 – wiring diagram – heated seats (part 6)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
