Volvo 960 (1996 – 1997) – wiring diagrams – horn

Volvo 960 (1996 – 1997) – wiring diagrams – horn

Year of productions:  1996, 1997

Horn

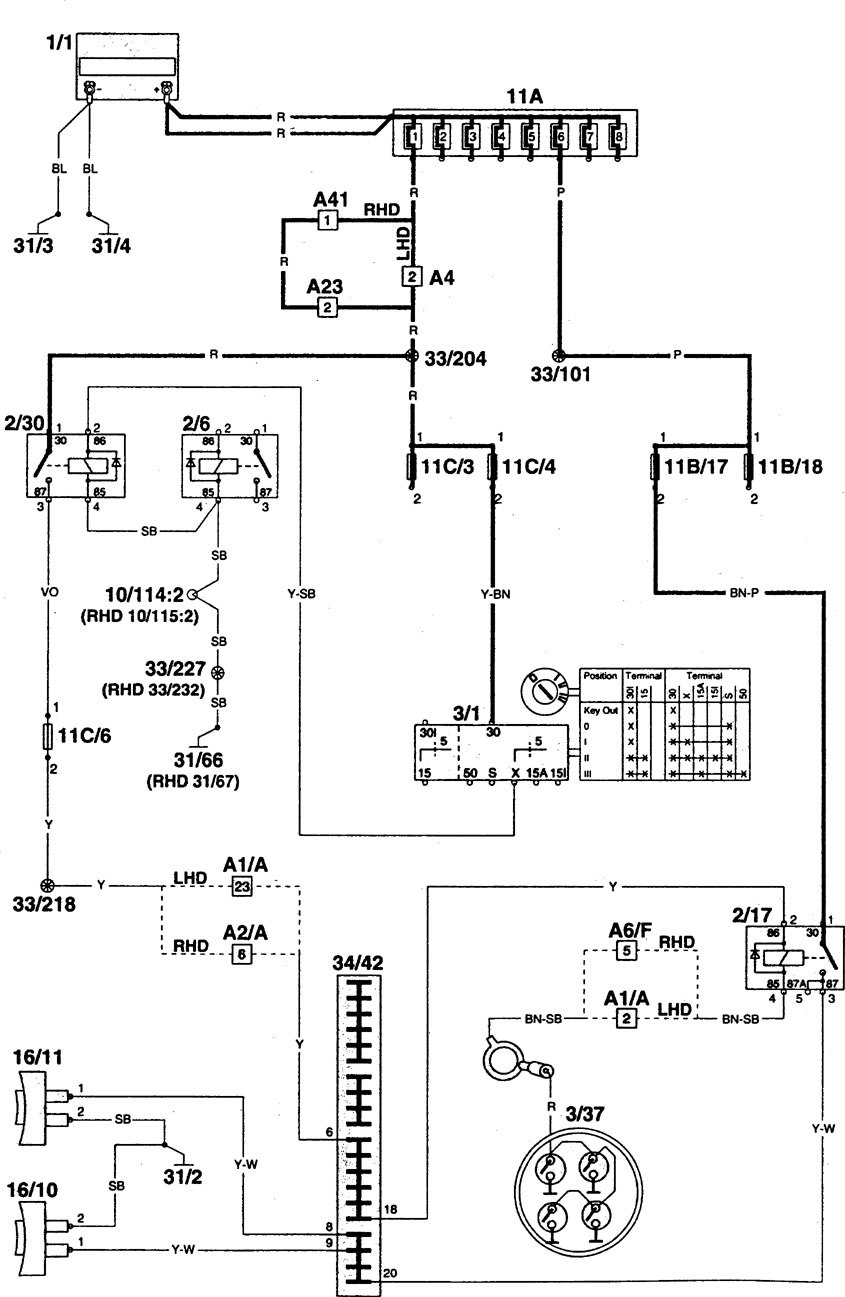

Volvo 960 - wiring diagram - horn (part 1)
Volvo 960 – wiring diagram – horn (part 1)

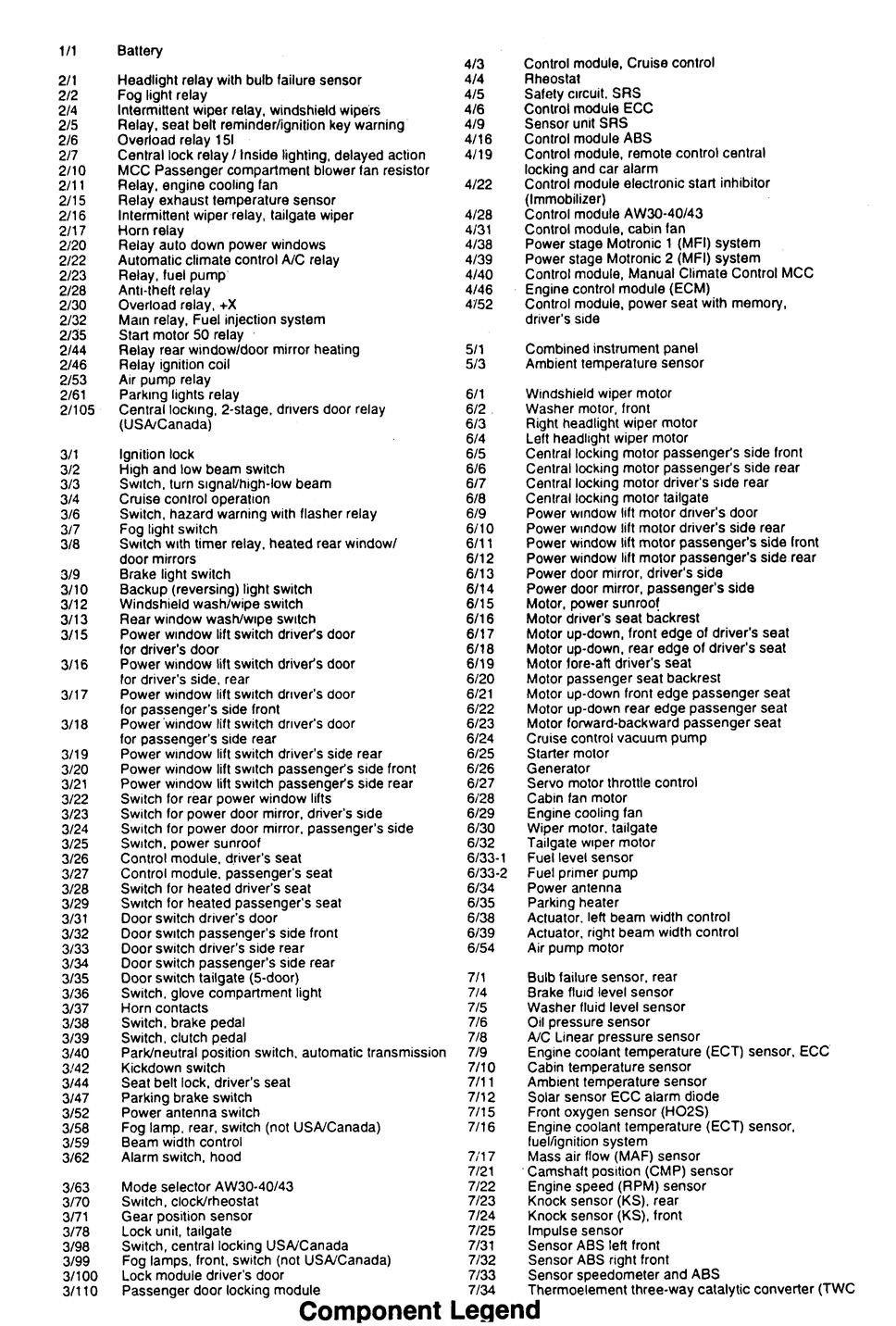

Volvo 960 - wiring diagram - horn (part 2)
Volvo 960 – wiring diagram – horn (part 2)

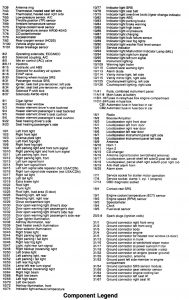

Volvo 960 - wiring diagram - horn (part 3)
Volvo 960 – wiring diagram – horn (part 3)

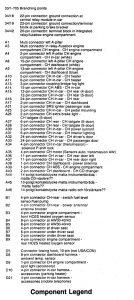

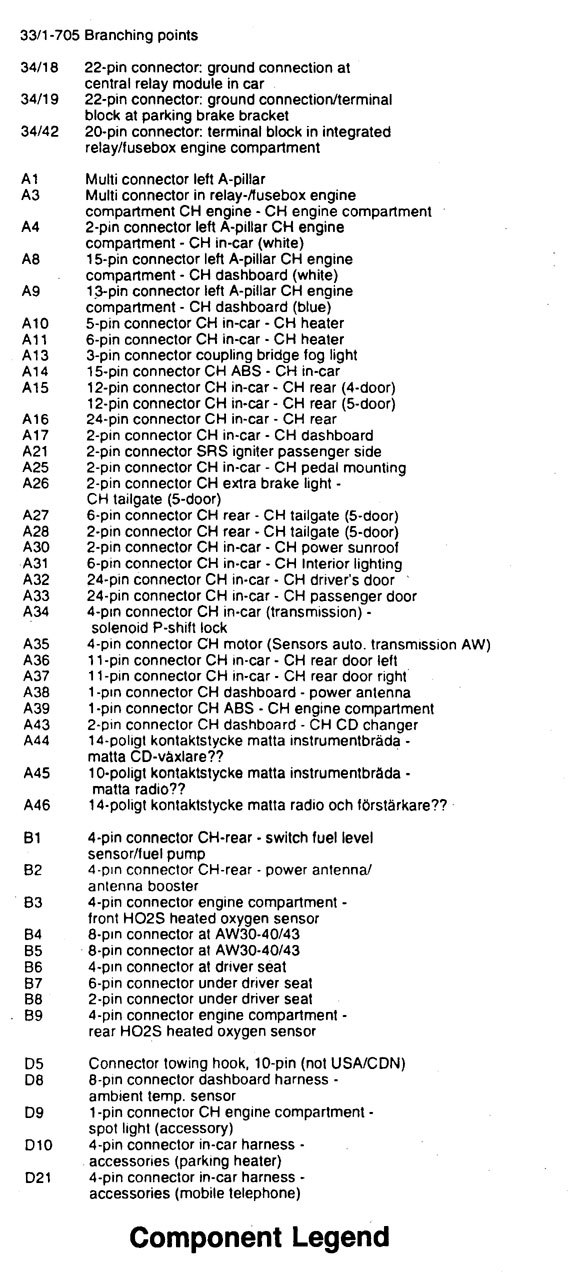

Volvo 960 - wiring diagram - horn (part 4)
Volvo 960 – wiring diagram – horn (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
