Volvo 960 (1996) – wiring diagrams – wiper/washer

Volvo 960 (1996) – wiring diagrams – wiper/washer

Year of productions:  1996

Wiper/washer

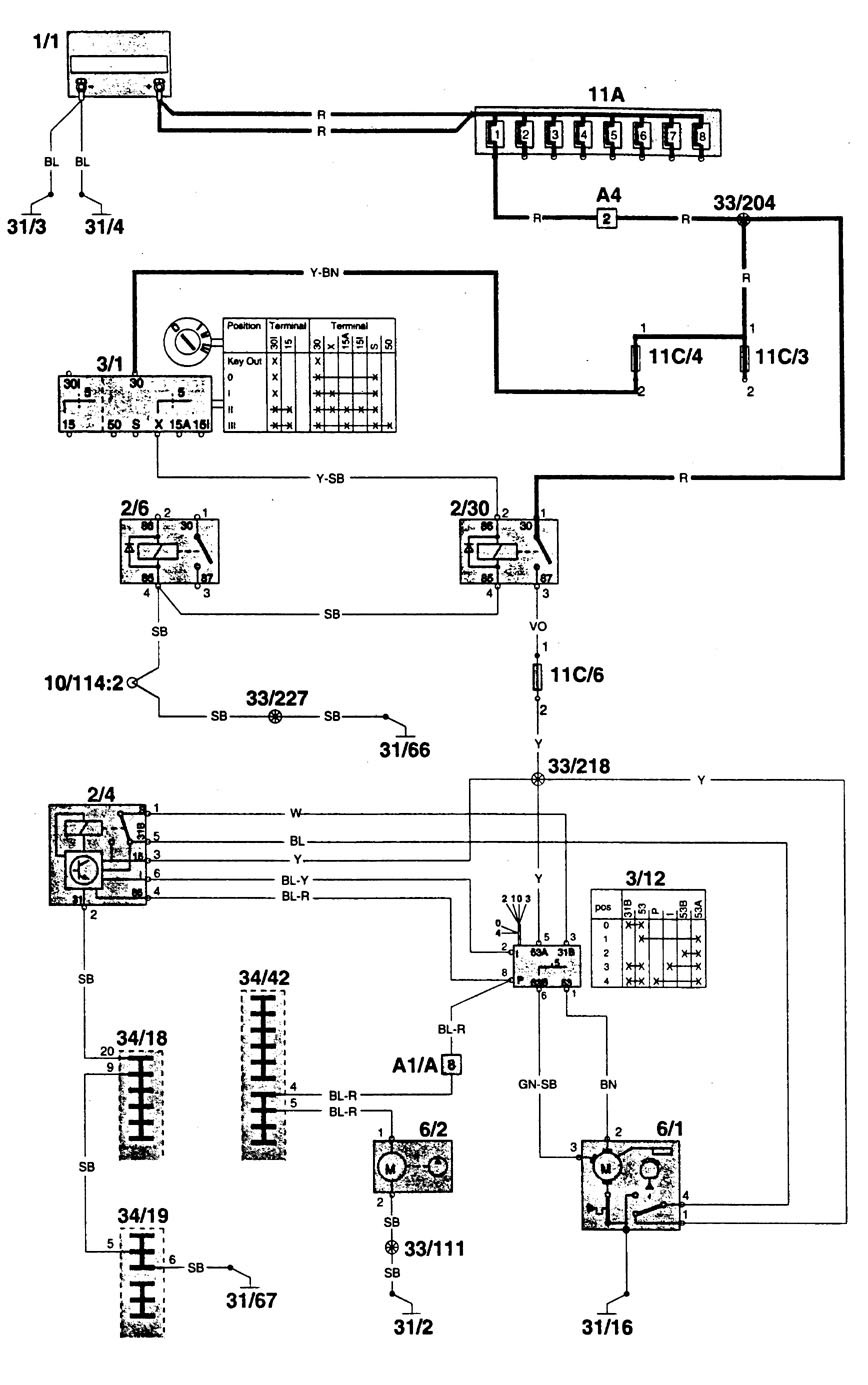

Volvo 960 - wiring diagram - wiper/washer (part 1)
Volvo 960 – wiring diagram – wiper/washer (part 1)

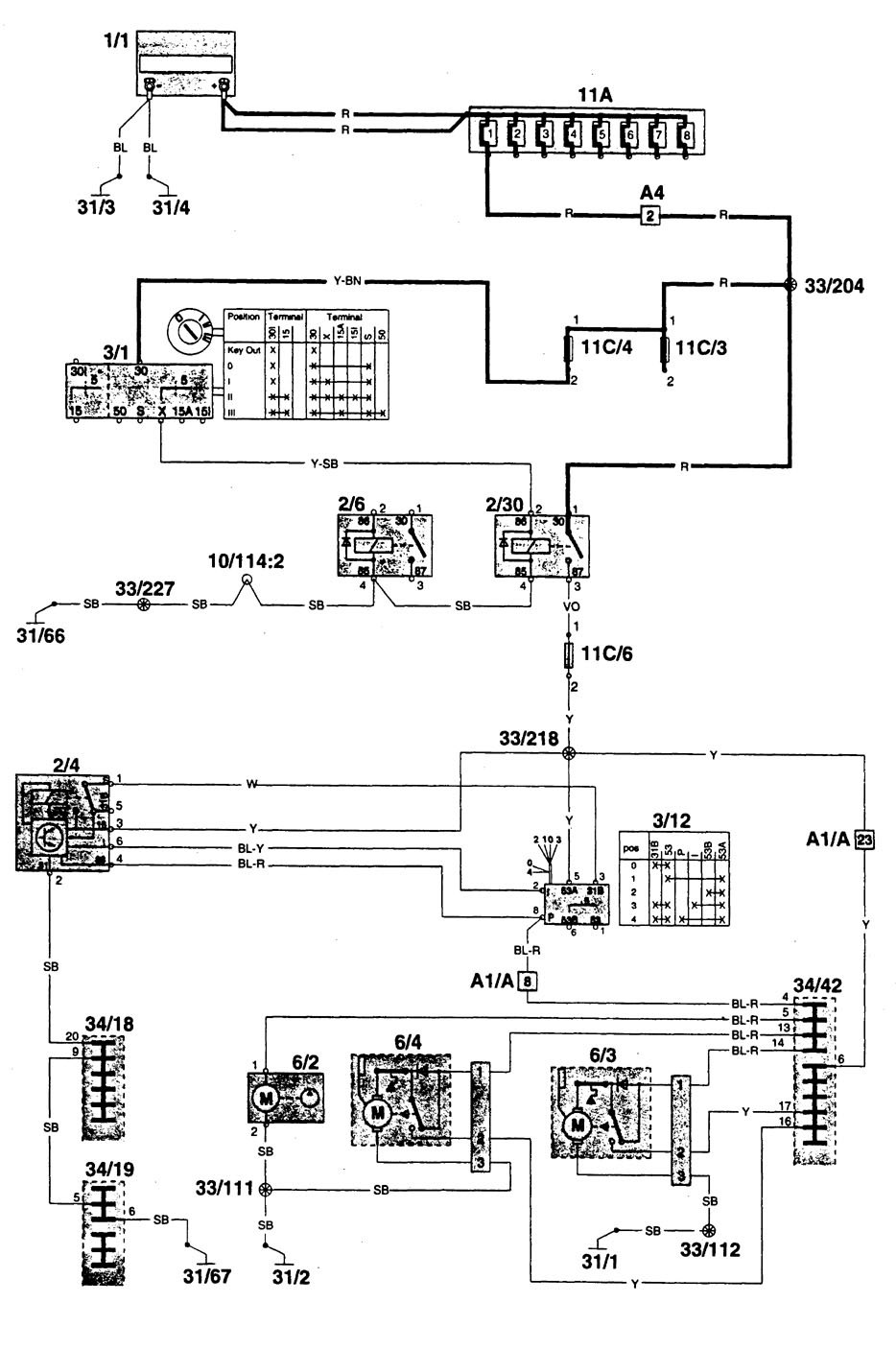

Volvo 960 - wiring diagram - wiper/washer (part 2)
Volvo 960 – wiring diagram – wiper/washer (part 2)

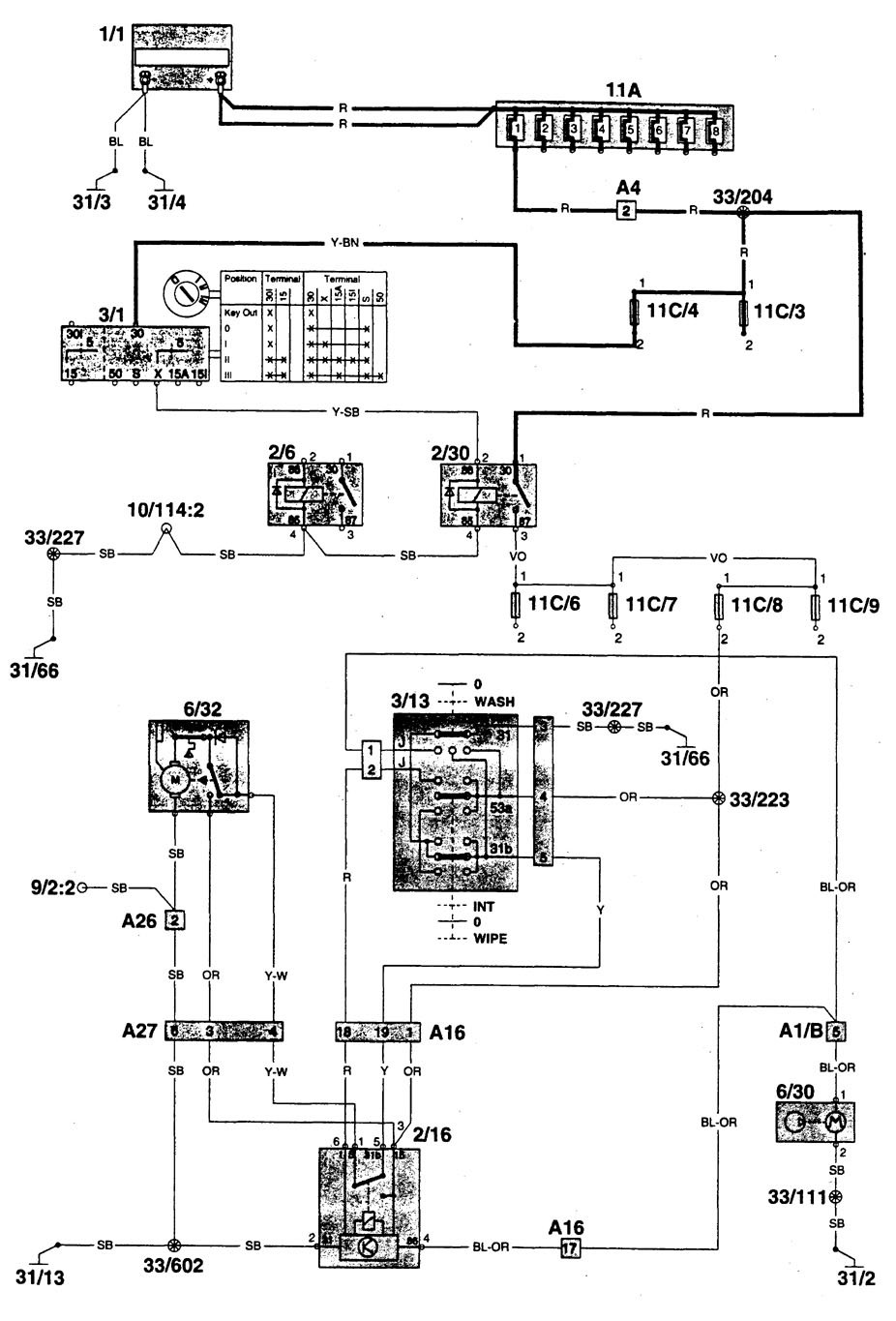

Volvo 960 - wiring diagram - wiper/washer (part 3)
Volvo 960 – wiring diagram – wiper/washer (part 3)
Volvo 960 - wiring diagram - wiper/washer (part 6)
Volvo 960 – wiring diagram – wiper/washer (part 4)
Volvo 960 - wiring diagram - wiper/washer (part 7)
Volvo 960 – wiring diagram – wiper/washer (part 5)
Volvo 960 - wiring diagram - wiper/washer (part 8)
Volvo 960 – wiring diagram – wiper/washer (part 6)
Volvo 960 - wiring diagram - wiper/washer (part 9)
Volvo 960 – wiring diagram – wiper/washer (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
