Volvo 960 (1997) – wiring diagrams – headlamps

Volvo 960 (1997) – wiring diagrams – headlamps

Year of productions:  1997

Headlamps

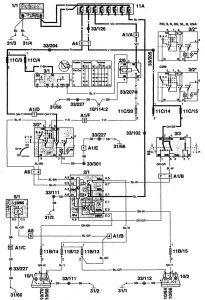

Volvo 960 - wiring diagram - headlamps (part 1)
Volvo 960 – wiring diagram – headlamps (part 1)

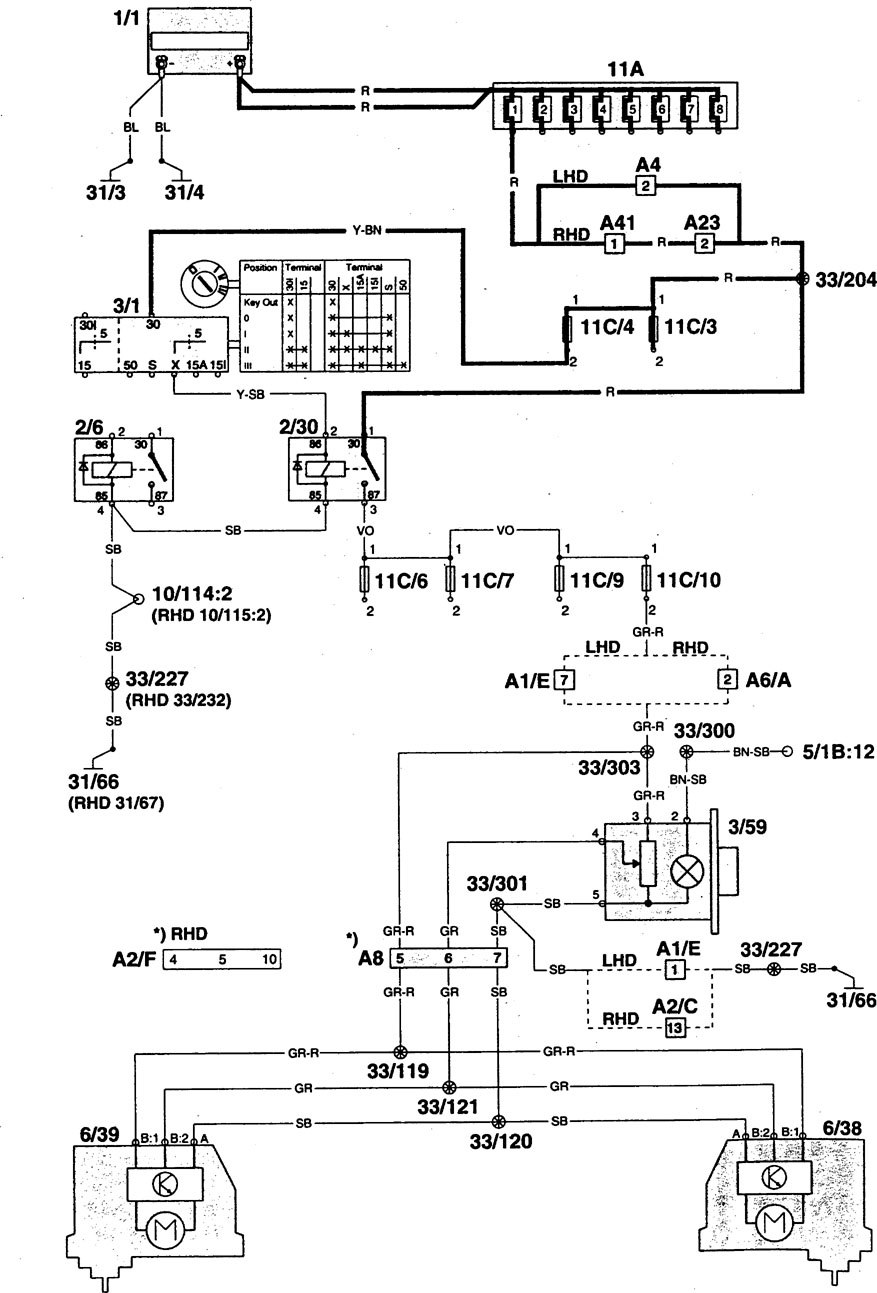

Volvo 960 - wiring diagram - headlamps (part 2)
Volvo 960 – wiring diagram – headlamps (part 2)

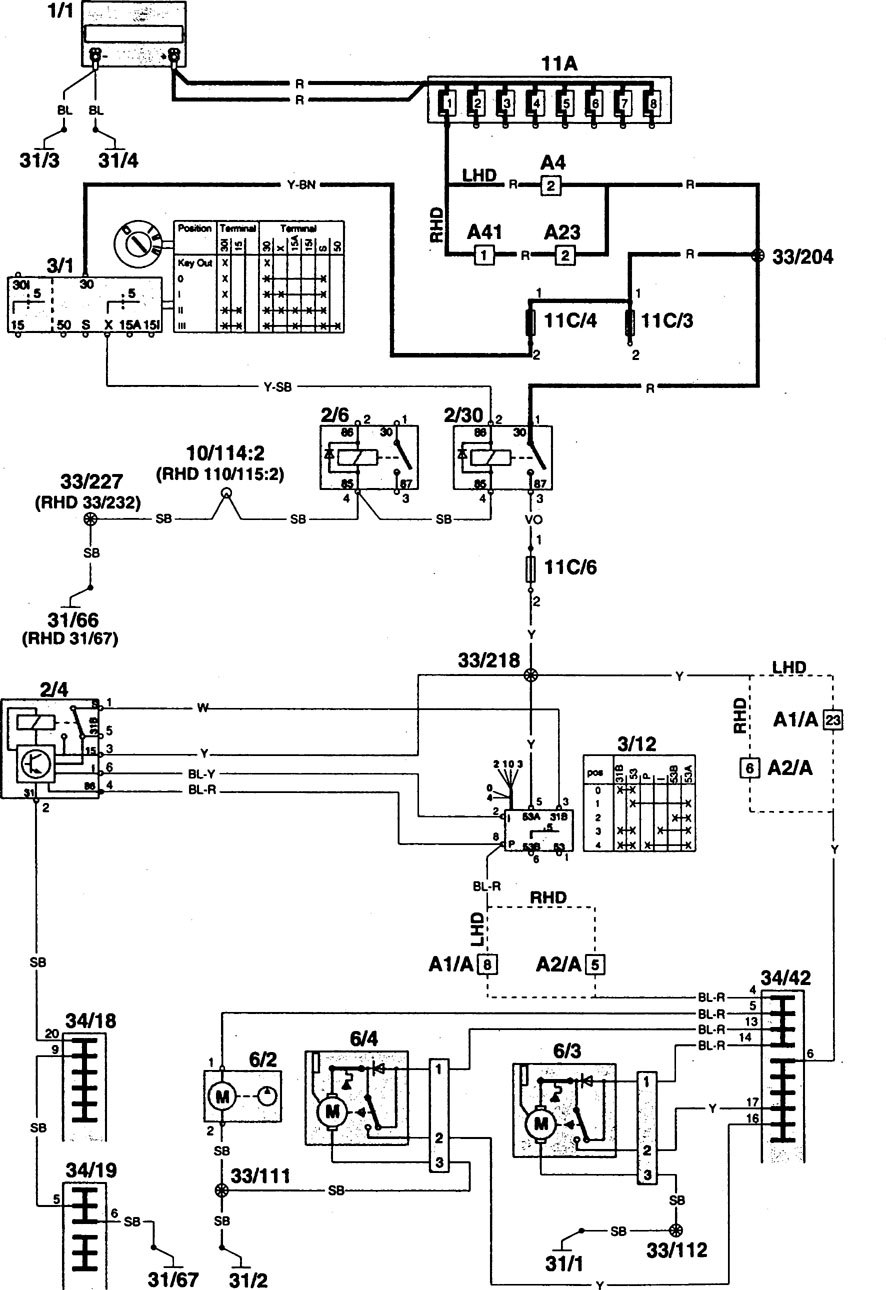

Volvo 960 - wiring diagram - headlamps (part 3)
Volvo 960 – wiring diagram – headlamps (part 3)
Volvo 960 - wiring diagram - headlamps (part 5)
Volvo 960 – wiring diagram – headlamps (part 4)
Volvo 960 - wiring diagram - headlamps (part 6)
Volvo 960 – wiring diagram – headlamps (part 5)
Volvo 960 - wiring diagram - headlamps (part 7)
Volvo 960 – wiring diagram – headlamps (part 6)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
