Volvo 960 (1997) – wiring diagrams – heated mirror

Volvo 960 (1997) – wiring diagrams – heated mirror

Year of productions:  1997

Heated mirror

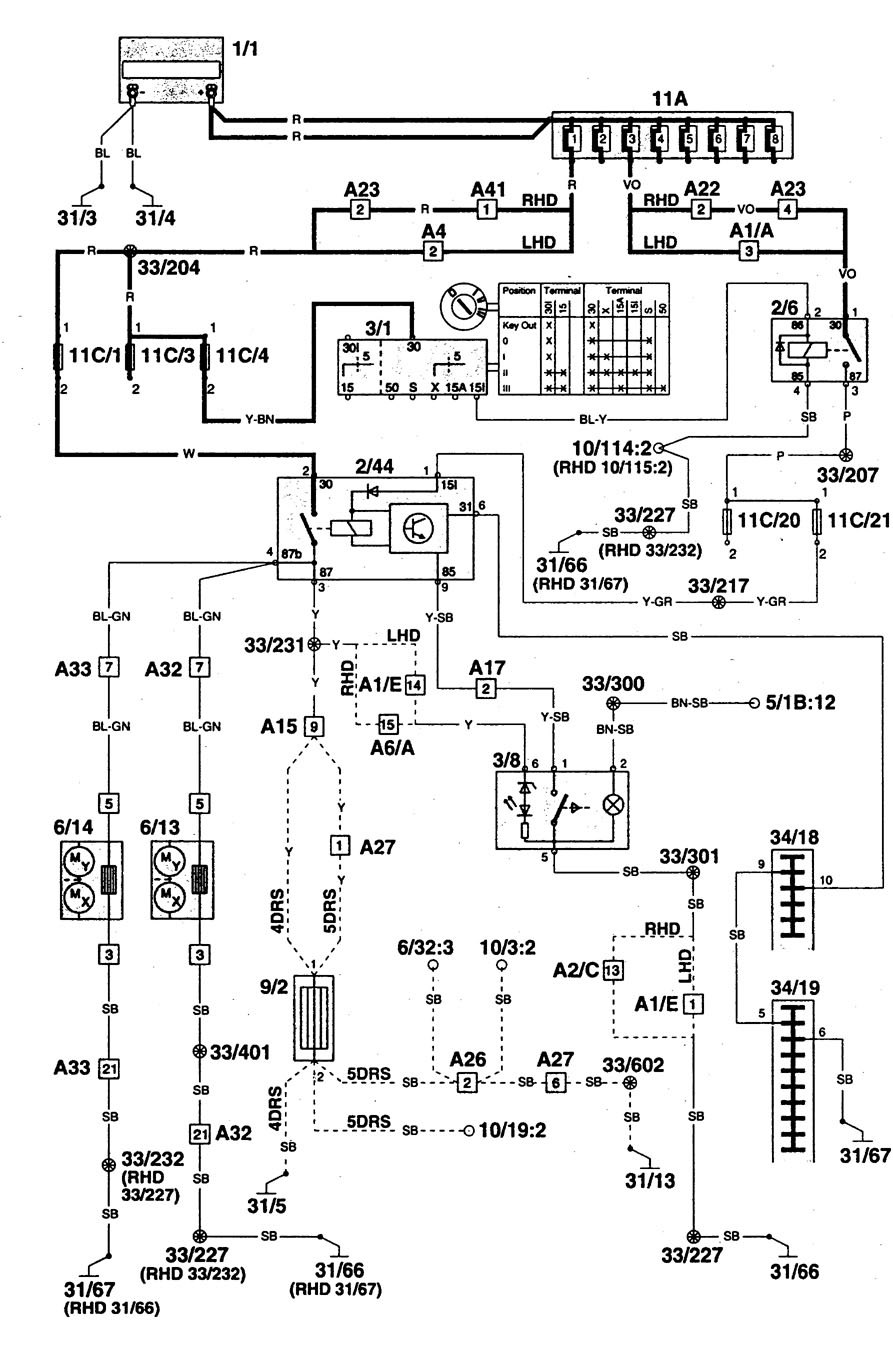

Volvo 960 - wiring diagram - heated mirror (part 1)
Volvo 960 – wiring diagram – heated mirror (part 1)

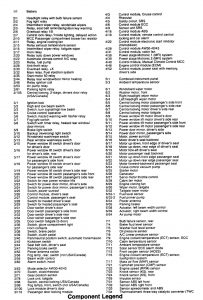

Volvo 960 - wiring diagram - heated mirror (part 2)
Volvo 960 – wiring diagram – heated mirror (part 2)
Volvo 960 - wiring diagram - heated mirror (part 3)
Volvo 960 – wiring diagram – heated mirror (part 3)

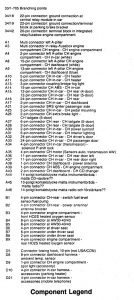

Volvo 960 - wiring diagram - heated mirror (part 4)
Volvo 960 – wiring diagram – heated mirror (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
