Volvo 960 (1997) – wiring diagrams – reverse lamp

Volvo 960 (1997) – wiring diagrams – reverse lamp

Year of productions:  1997

Reverse lamp

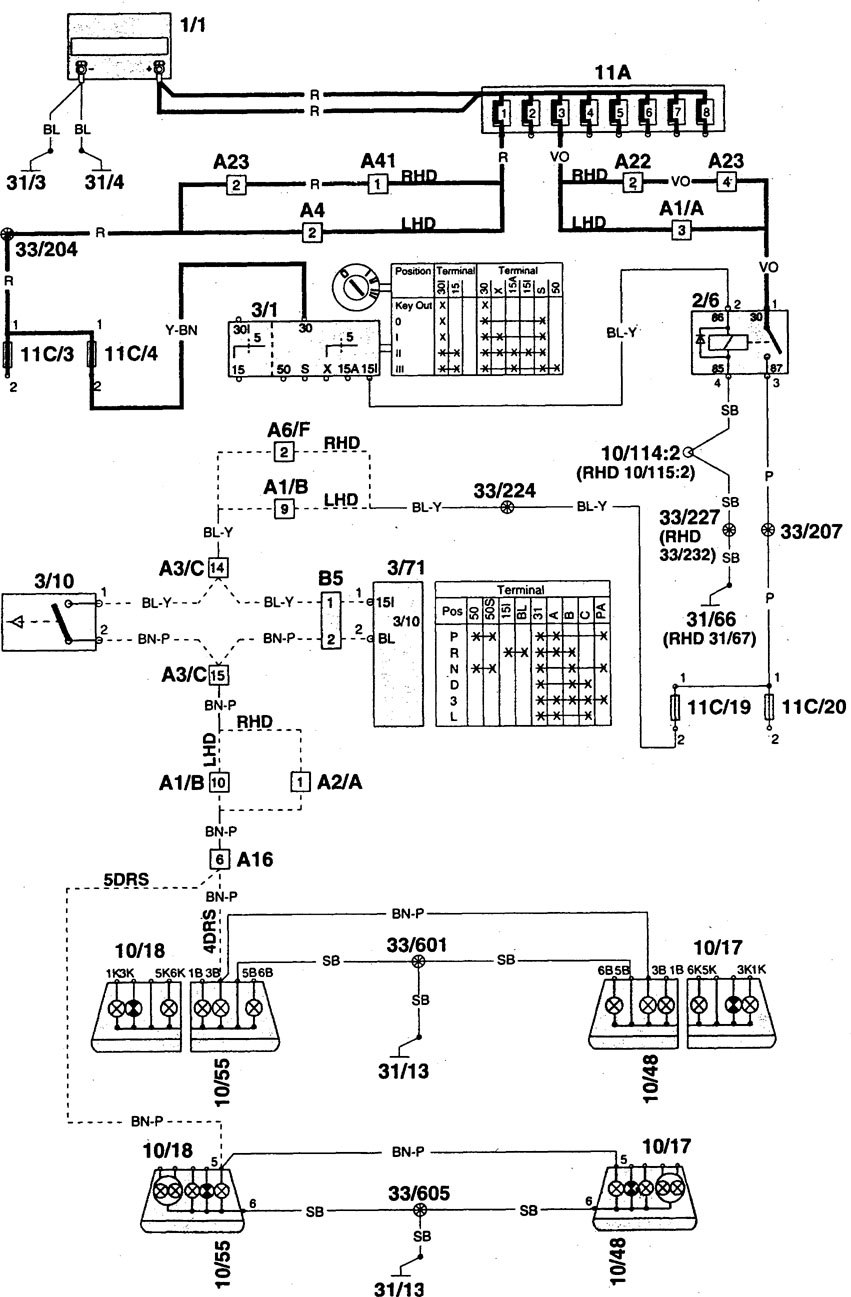

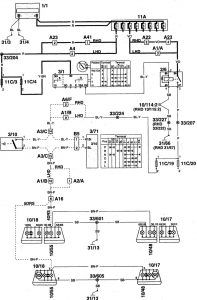

Volvo 960 - wiring diagram - reverse lamp (part 1)
Volvo 960 – wiring diagram – reverse lamp (part 1)
Volvo 960 - wiring diagram - reverse lamp (part 3)
Volvo 960 – wiring diagram – reverse lamp (part 3)
Volvo 960 - wiring diagram - reverse lamp (part 4)
Volvo 960 – wiring diagram – reverse lamp (part 4)
Volvo 960 - wiring diagram - reverse lamp (part 5)
Volvo 960 – wiring diagram – reverse lamp (part 5)
Volvo 960 - wiring diagram - reverse lamp (part 6)
Volvo 960 – wiring diagram – reverse lamp (part 6)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
