Volvo C70 (1998 – 2004) – wiring diagrams – security/anti-theft

1 July 2017 admin C70, Volvo 0

Volvo C70 (1998 – 2004) – wiring diagrams – security/anti-theft

Year of productions:  1998, 1999, 2000, 2001, 2002, 2003, 2004

Security/Anti-theft

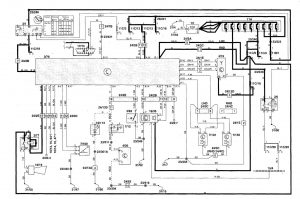

Volvo C70 - wiring diagram - security/anti-theft (part 1)
Volvo C70 – wiring diagram – security/anti-theft (part 1)

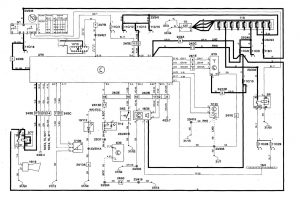

Volvo C70 - wiring diagram - security/anti-theft (part 2)
Volvo C70 – wiring diagram – security/anti-theft (part 2)

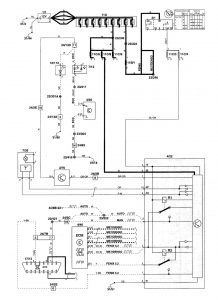

Volvo C70 - wiring diagram - security/anti-theft (part 3)
Volvo C70 – wiring diagram – security/anti-theft (part 3)
Volvo C70 - wiring diagram - component ID (part 1)
Volvo C70 – wiring diagram – component ID (part 1)
Volvo C70 - wiring diagram - component ID (part 2)
Volvo C70 – wiring diagram – component ID (part 2)
Volvo C70 - wiring diagram - component ID (part 3)
Volvo C70 – wiring diagram – component ID (part 3)
Volvo C70 - wiring diagram - component ID (part 4)
Volvo C70 – wiring diagram – component ID (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
