Volvo C70 (1999 – 2004) – wiring diagrams – headlamps

Volvo C70 (1999 – 2004) – wiring diagrams – headlamps

Year of productions:  1999, 2000, 2001, 2002, 2003, 2004

Headlamps

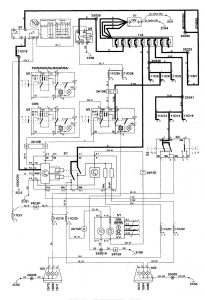

Volvo C70 - wiring diagram - headlamps (part 1)
Volvo C70 – wiring diagram – headlamps (part 1)

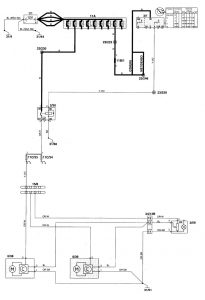

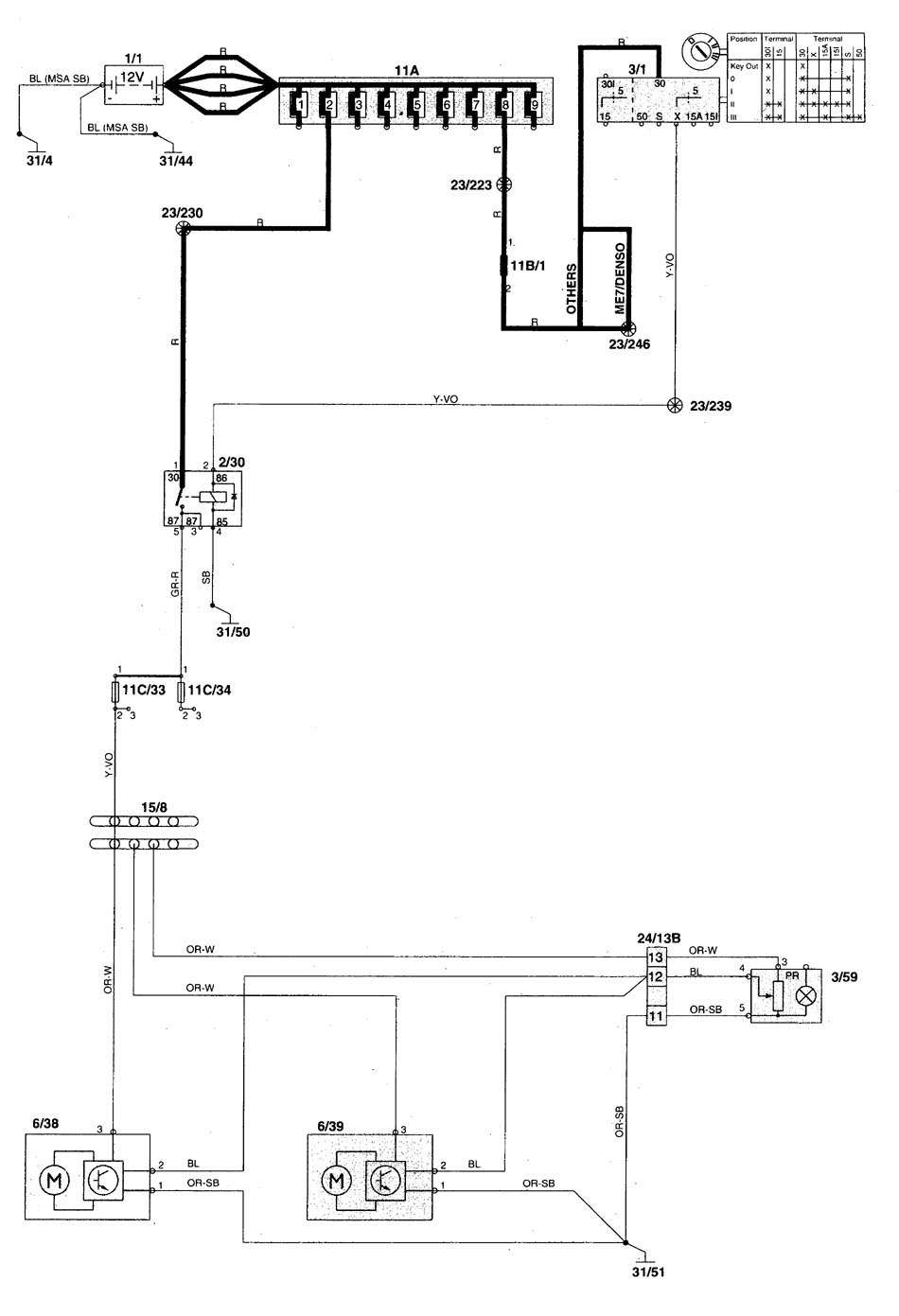

Volvo C70 - wiring diagram - headlamps (part 2)
Volvo C70 – wiring diagram – headlamps (part 2)
Volvo C70 - wiring diagram - component ID (part 1)
Volvo C70 – wiring diagram – component ID (part 1)
Volvo C70 - wiring diagram - component ID (part 2)
Volvo C70 – wiring diagram – component ID (part 2)
Volvo C70 - wiring diagram - component ID (part 3)
Volvo C70 – wiring diagram – component ID (part 3)
Volvo C70 - wiring diagram - component ID (part 4)
Volvo C70 – wiring diagram – component ID (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
