Volvo C70 (1999) – wiring diagrams – transmission controls

Volvo C70 (1999) – wiring diagrams – transmission controls

Year of productions:  1999

Transmission controls

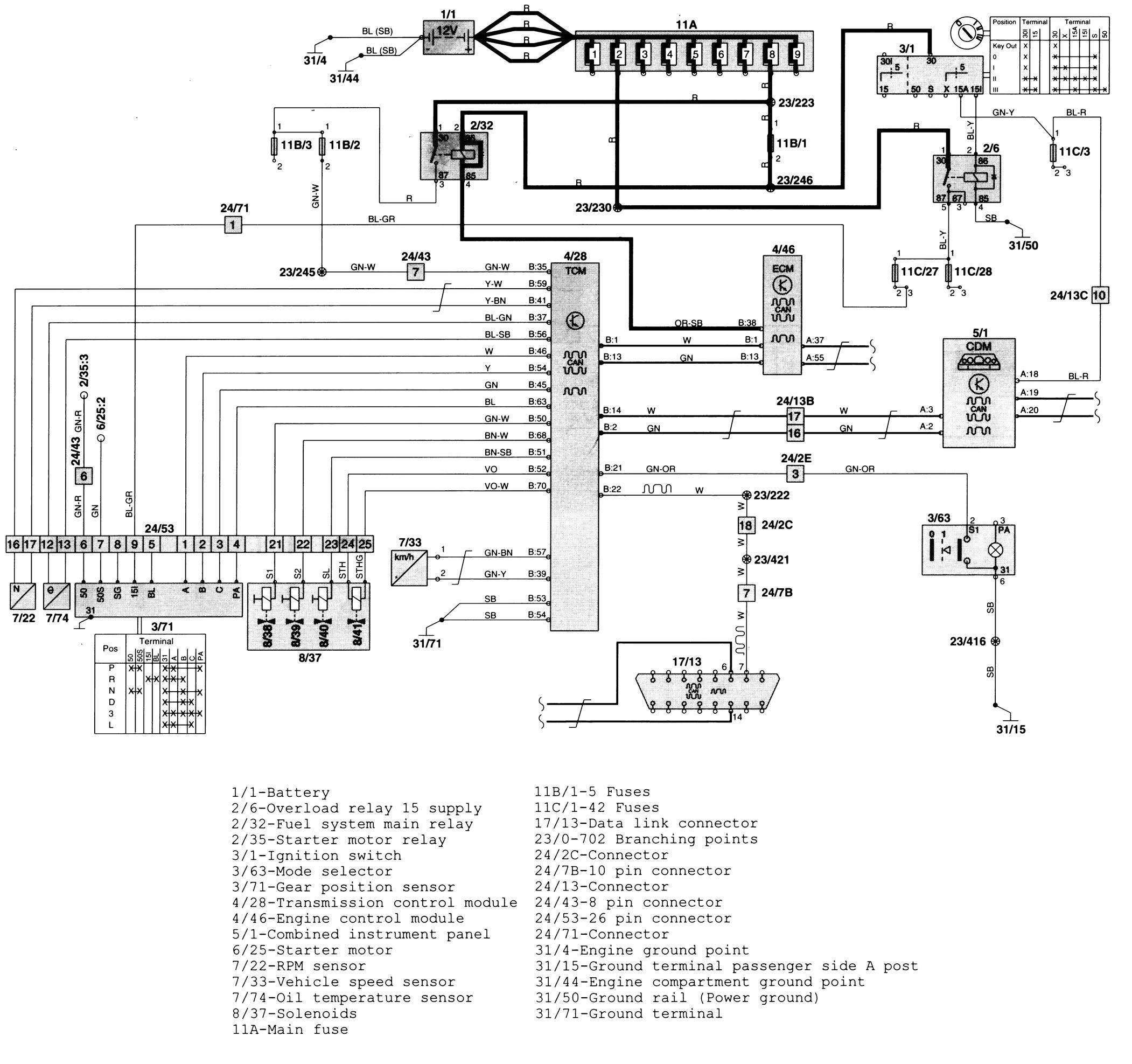

Volvo C70 - wiring diagram - transmission controls
Volvo C70 – wiring diagram – transmission controls
Volvo C70 - wiring diagram - component ID (part 1)
Volvo C70 – wiring diagram – component ID (part 1)
Volvo C70 - wiring diagram - component ID (part 2)
Volvo C70 – wiring diagram – component ID (part 2)
Volvo C70 - wiring diagram - component ID (part 3)
Volvo C70 – wiring diagram – component ID (part 3)
Volvo C70 - wiring diagram - component ID (part 4)
Volvo C70 – wiring diagram – component ID (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
