Volvo S70 (1998 – 2000) – wiring diagrams – security/anti-theft

Year of productions:  1998, 1999, 2000

Security/anti-theft

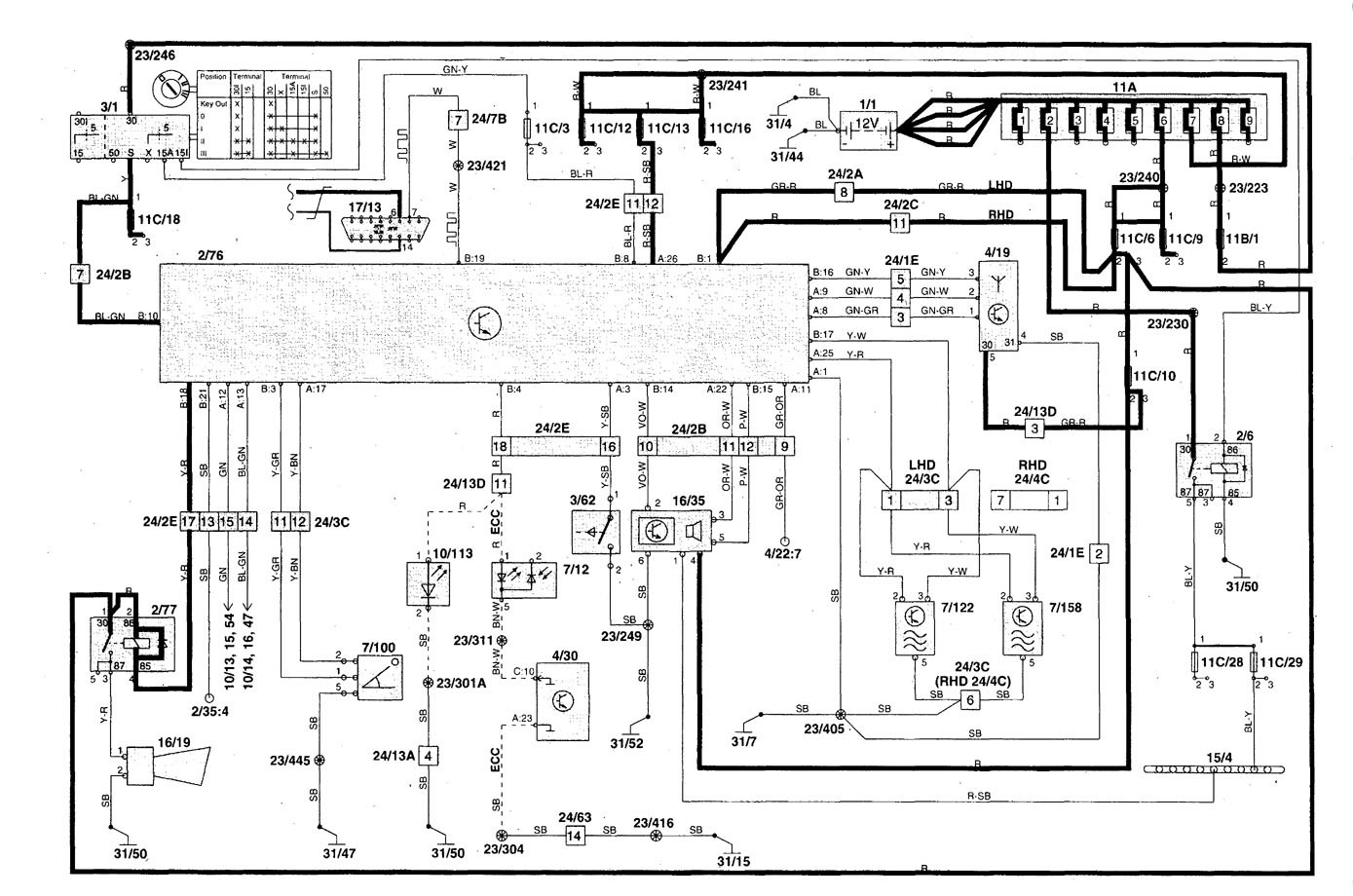

Volvo S70 - wiring diagram - security/anti-theft (part 1)
Volvo S70 – wiring diagram – security/anti-theft (part 1)

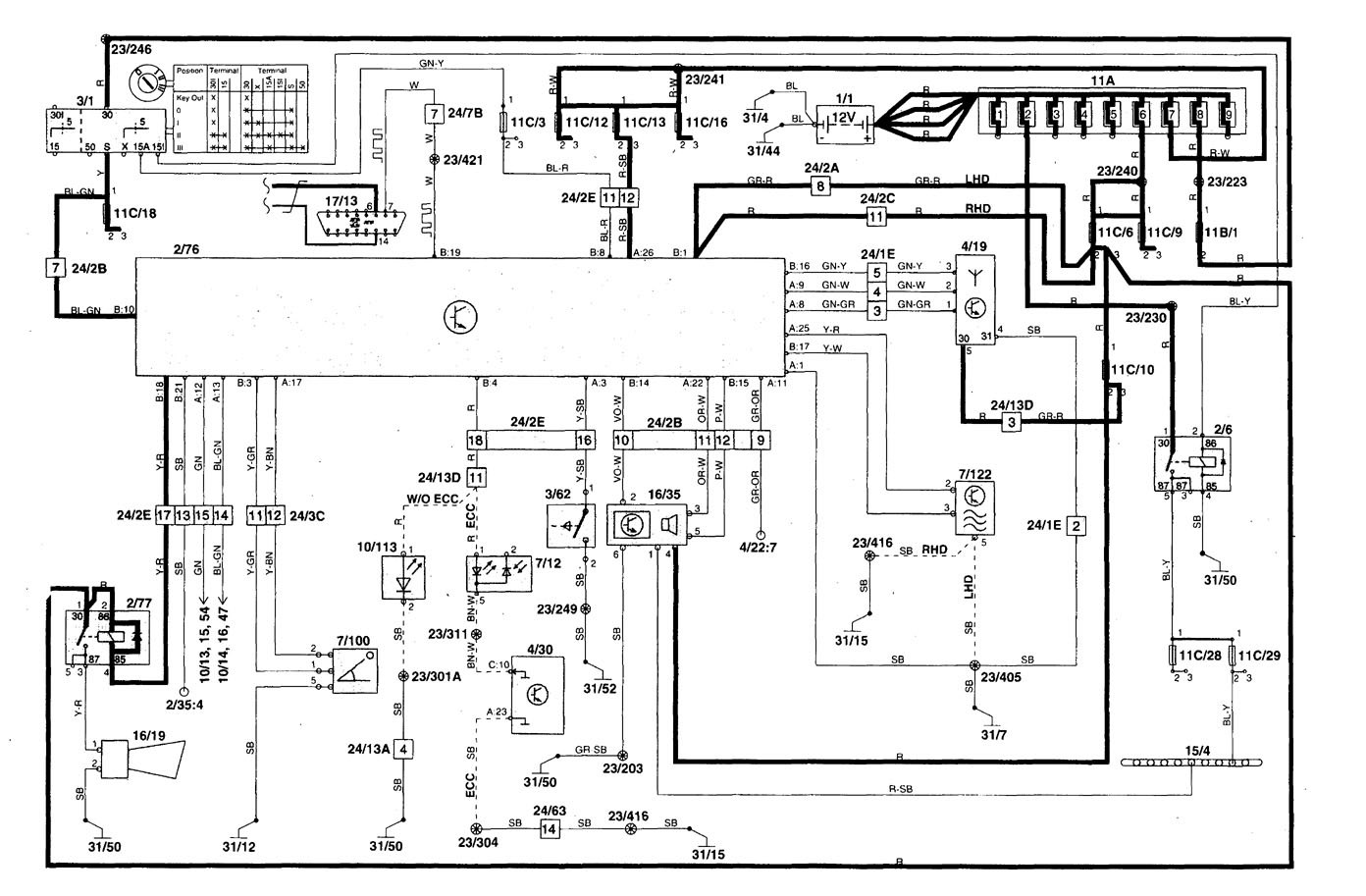

Volvo S70 - wiring diagram - security/anti-theft (part 2)
Volvo S70 – wiring diagram – security/anti-theft (part 2)

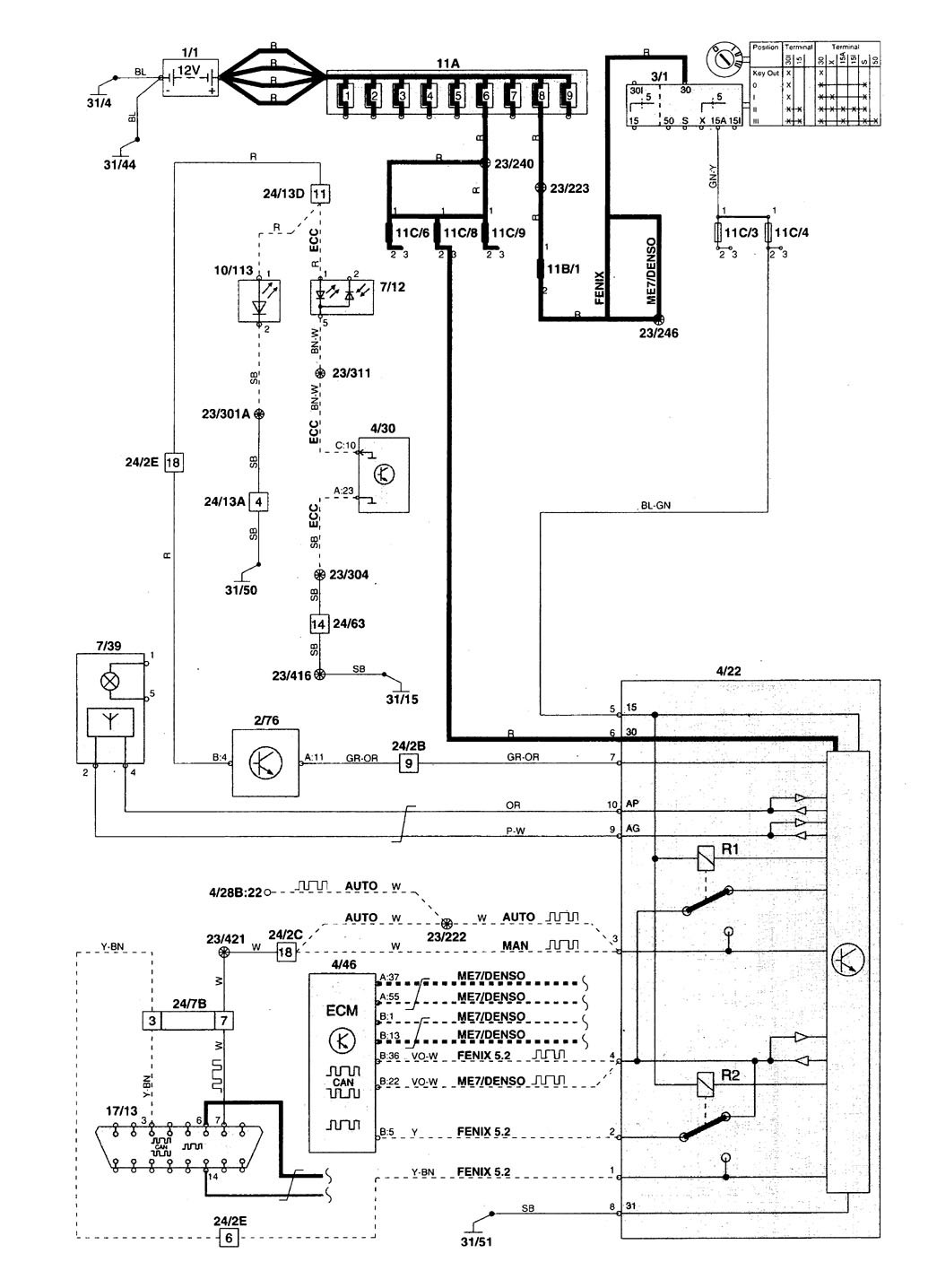

Volvo S70 - wiring diagram - security/anti-theft (part 3)
Volvo S70 – wiring diagram – security/anti-theft (part 3)
Volvo S70 - wiring diagram - component id (part 1)
Volvo S70 – wiring diagram – component id (part 1)
Volvo S70 - wiring diagram - component id (part 2)
Volvo S70 – wiring diagram – component id (part 2)
Volvo S70 - wiring diagram - component id (part 3)
Volvo S70 – wiring diagram – component id (part 3)
Volvo S70 - wiring diagram - component id (part 4)
Volvo S70 – wiring diagram – component id (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
