Volvo V70 (1998) – wiring diagrams – accessory controls

6 July 2017 admin V70, Volvo 0

Volvo V70 (1998) – wiring diagrams – accessory controls

Year of productions:  1998

Accessory controls

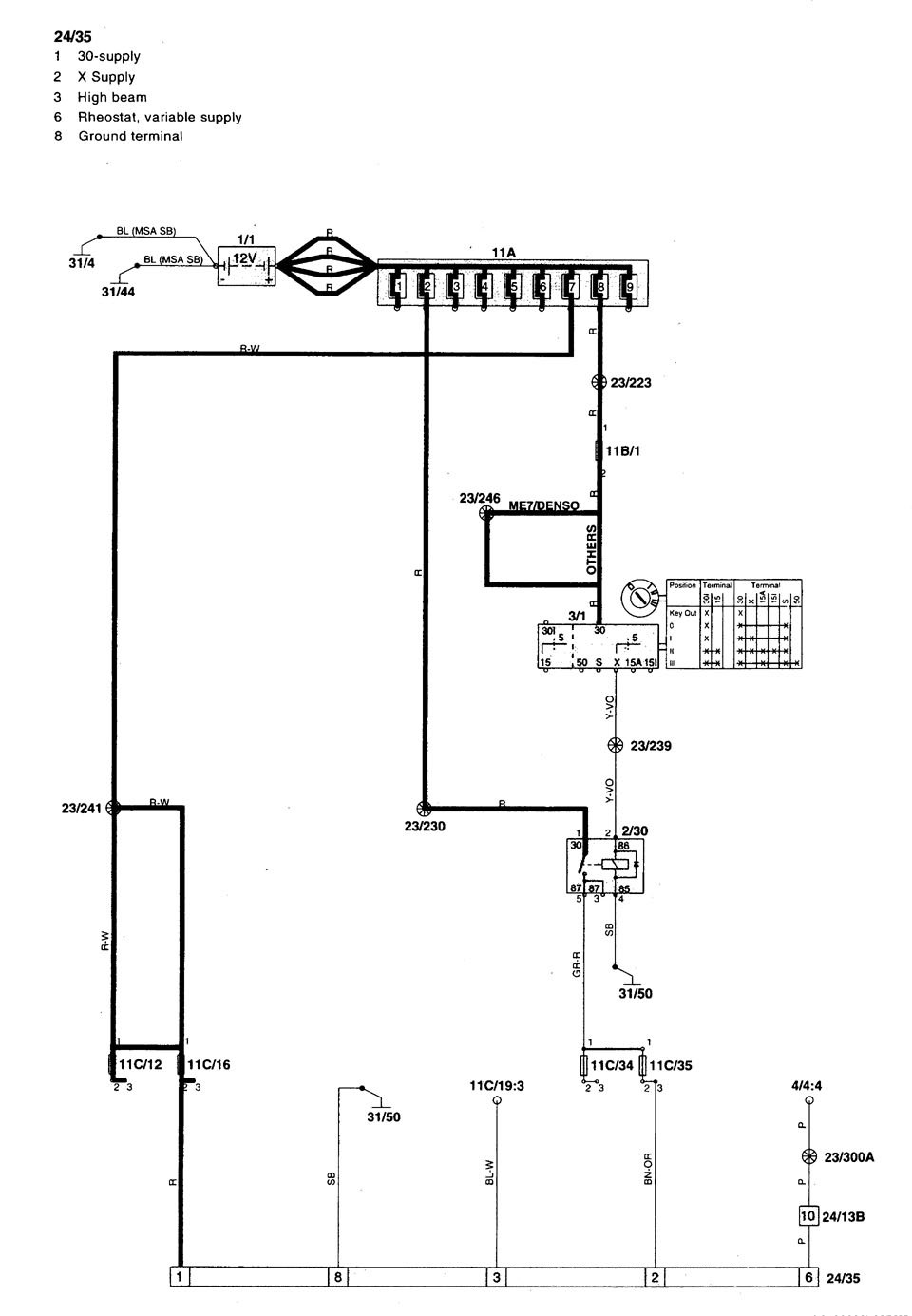

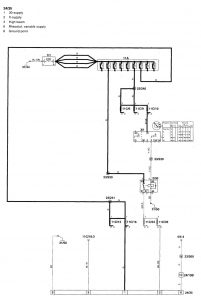

Volvo V70 - wiring diagram - accessory controls (part 1)
Volvo V70 – wiring diagram – accessory controls (part 1)
Volvo V70 - wiring diagram - accessory controls (part 2)
Volvo V70 – wiring diagram – accessory controls (part 2)
Volvo V70 - wiring diagram - component id (part 1)
Volvo V70 – wiring diagram – component id (part 1)
Volvo V70 - wiring diagram - component id (part 2)
Volvo V70 – wiring diagram – component id (part 2)
Volvo V70 - wiring diagram - component id (part 3)
Volvo V70 – wiring diagram – component id (part 3)
Volvo V70 - wiring diagram - component id (part 4)
Volvo V70 – wiring diagram – component id (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
