Volvo V70 (1998) – wiring diagrams – fuse panel

Volvo V70 (1998) – wiring diagrams – fuse panel

Year of productions:  1998

Fuse panel

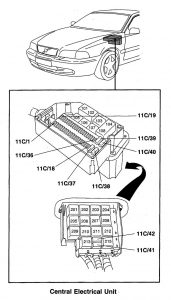

Volvo V70 - wiring diagram - fuse panel (part 1)
Volvo V70 – wiring diagram – fuse panel (part 1)

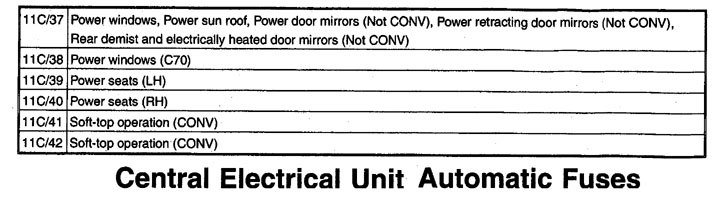

Volvo V70 - wiring diagram - fuse panel (part 2)
Volvo V70 – wiring diagram – fuse panel (part 2)

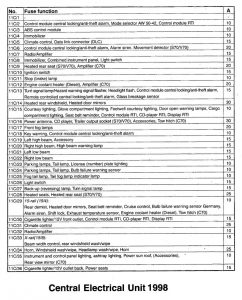

Volvo V70 - wiring diagram - fuse panel (part 3)
Volvo V70 – wiring diagram – fuse panel (part 3)

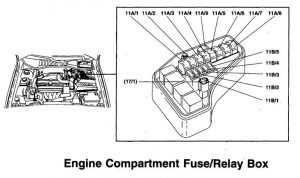

Volvo V70 - wiring diagram - fuse panel (part 4)
Volvo V70 – wiring diagram – fuse panel (part 4)

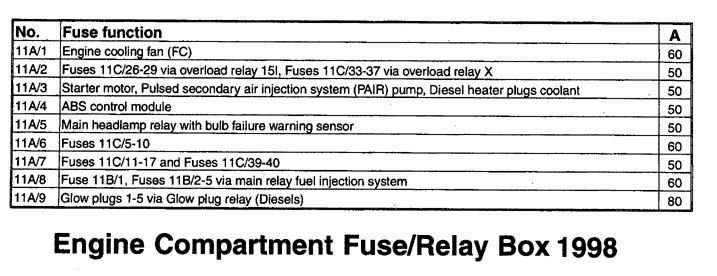

Volvo V70 - wiring diagram - fuse panel (part 5)
Volvo V70 – wiring diagram – fuse panel (part 5)
Volvo V70 - wiring diagram - component id (part 1)
Volvo V70 – wiring diagram – component id (part 1)
Volvo V70 - wiring diagram - component id (part 2)
Volvo V70 – wiring diagram – component id (part 2)
Volvo V70 - wiring diagram - component id (part 3)
Volvo V70 – wiring diagram – component id (part 3)
Volvo V70 - wiring diagram - component id (part 4)
Volvo V70 – wiring diagram – component id (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
