Volvo V70 (1998 – 1999) – wiring diagrams – HVAC controls

Volvo V70 (1998 – 1999) – wiring diagrams – HVAC controls

Year of productions:  1998, 1999

HVAC controls

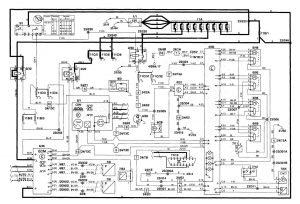

Volvo V70 - wiring diagram - HVAC controls (part 1)
Volvo V70 – wiring diagram – HVAC controls (part 1)

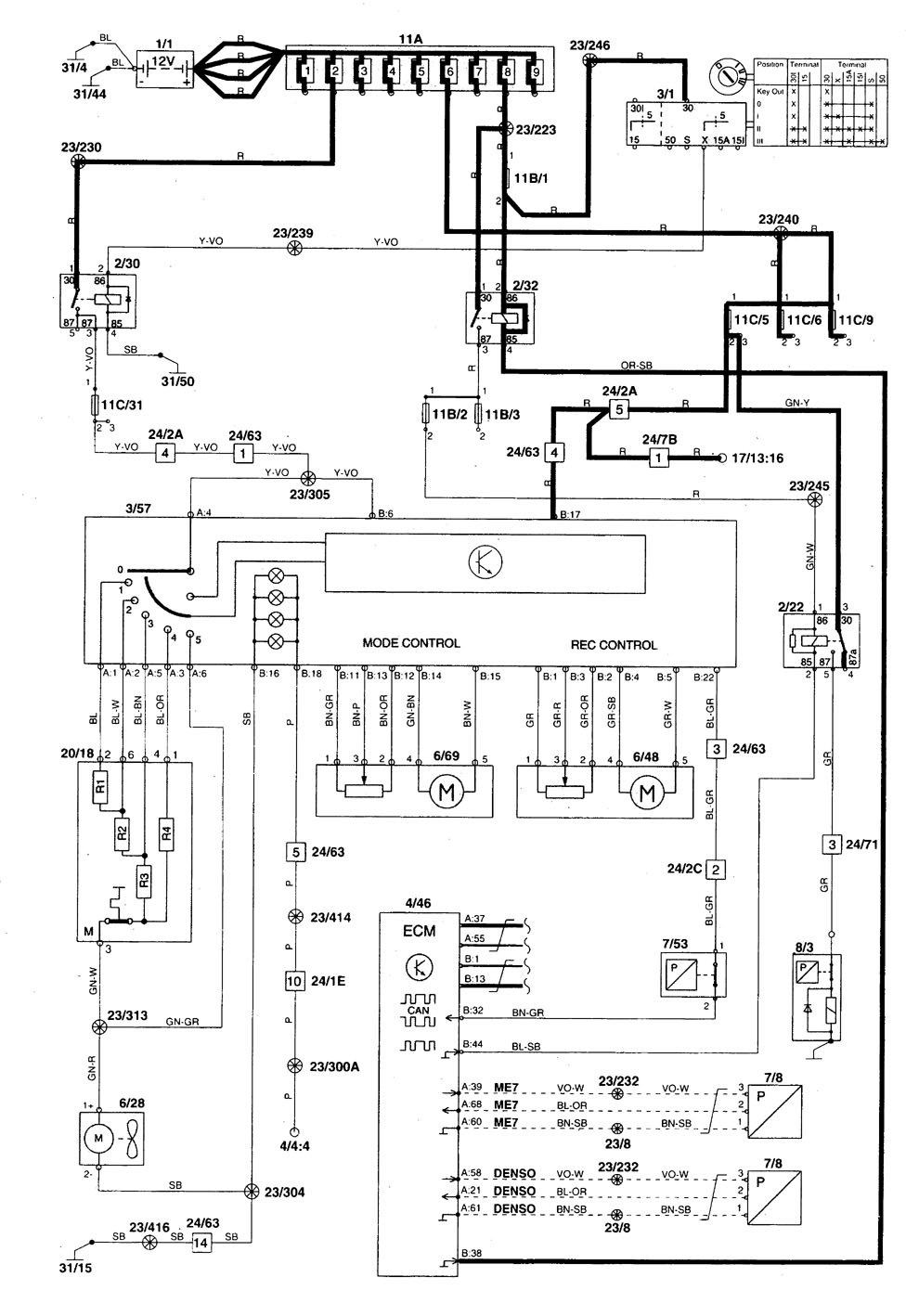

Volvo V70 - wiring diagram - HVAC controls (part 2)
Volvo V70 – wiring diagram – HVAC controls (part 2)
Volvo V70 - wiring diagram - component id (part 1)
Volvo V70 – wiring diagram – component id (part 1)
Volvo V70 - wiring diagram - component id (part 2)
Volvo V70 – wiring diagram – component id (part 2)
Volvo V70 - wiring diagram - component id (part 3)
Volvo V70 – wiring diagram – component id (part 3)
Volvo V70 - wiring diagram - component id (part 4)
Volvo V70 – wiring diagram – component id (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
